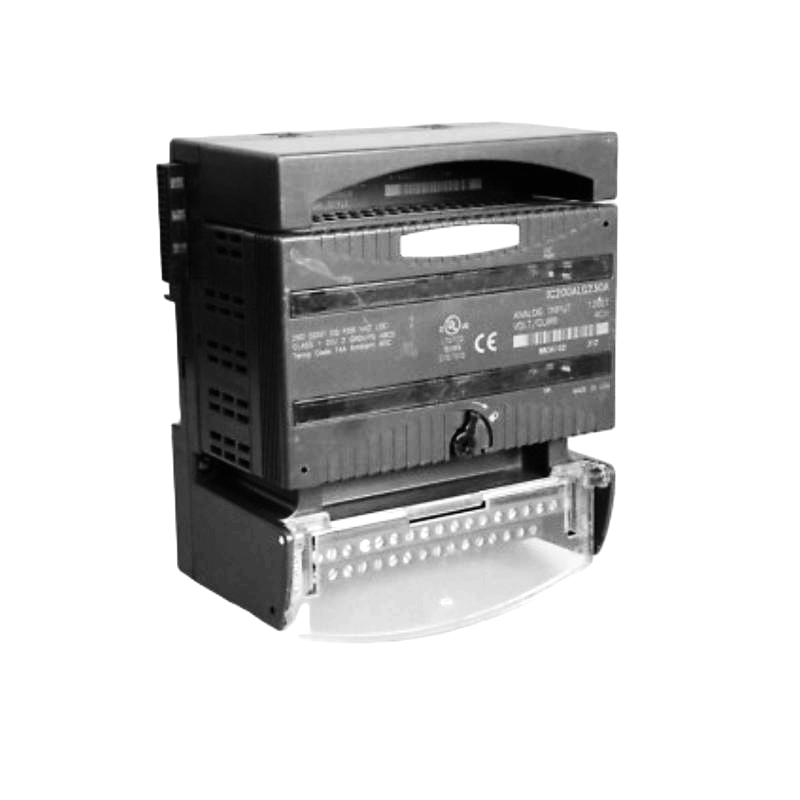

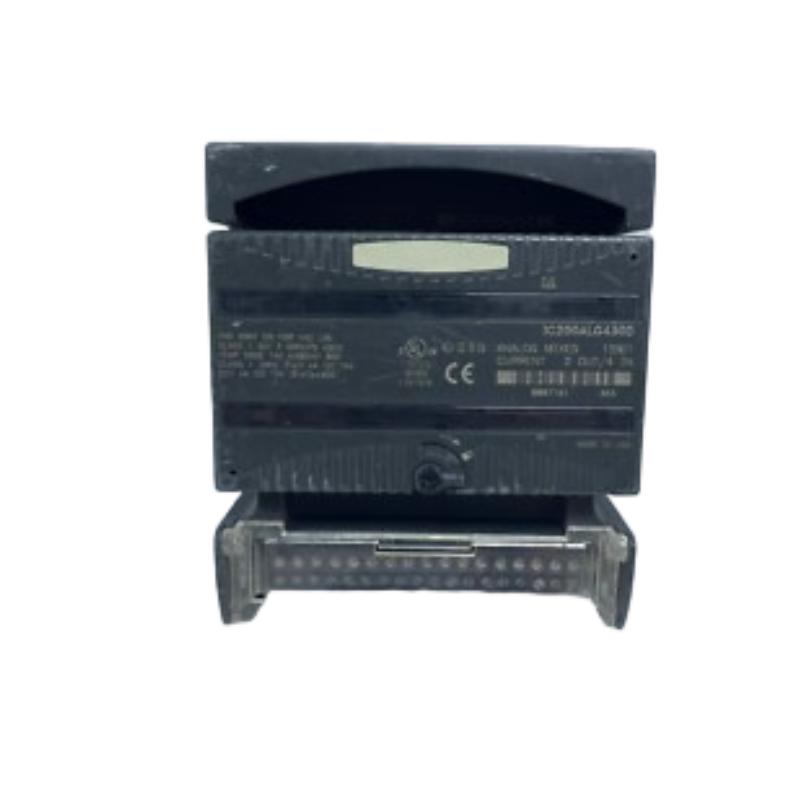

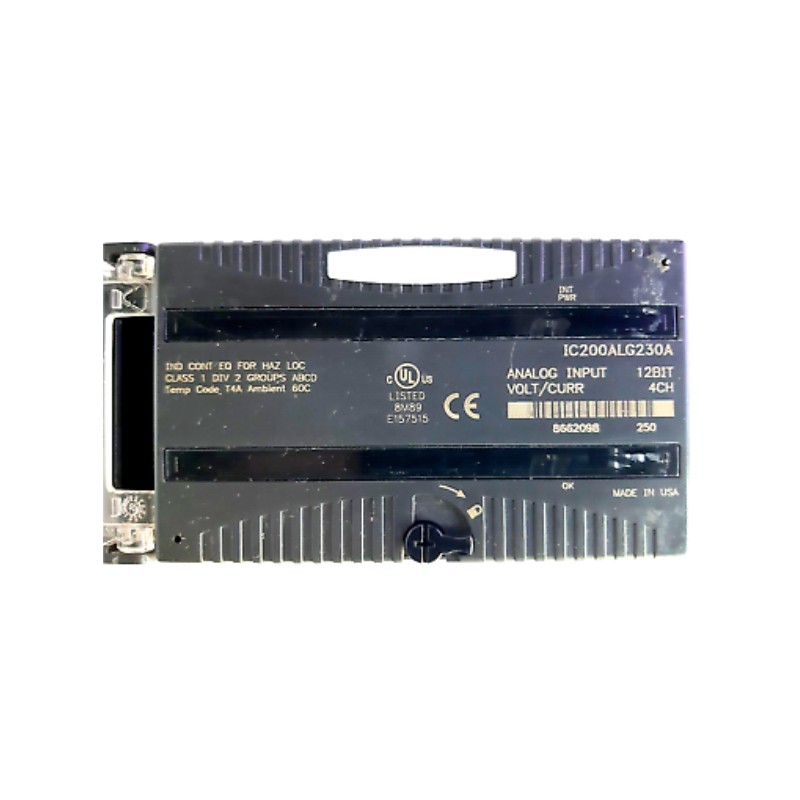

GE IC200ALG230A | 4‑Channel Analog Input Module Shelf life 1 year Fast Shipping!

Brand：GE Fanuc PLC

Item No.：GE IC200ALG230A

Product origin：USA

Dimensions:120 × 30 × 110 mm

Weight:0.14 kg

Clear and reliable product source, support for third-party testing, complete after-sales support

Rich spot models, support for quick docking of procurement needs, welcome to inquire!

Product Introduction：

Overview
The GE IC200ALG230A is a four‑channel analog input module from the VersaMax series, providing high‑resolution signal acquisition. It supports either voltage (±10 V or 0‑10 V) or current (4‑20 mA) inputs and is designed for industrial process control and automation applications.

General Information
Brand: GE (General Electric)
Country of Origin: United States
Model Number: IC200ALG230A
Series: VersaMax I/O Modules
Product Type: Analog Input Module
Application: Voltage or current signal measurement in control systems

Power Specifications
Supply Voltage: 5 V DC from the backplane
Current Consumption: Approx. 125 mA from +5 V bus
Resolution: 12‑bit conversion
Supported Input Ranges:

Voltage mode: –10 V to +10 V or 0 V to +10 V

Current mode: 4 mA to 20 mA
Input Filter Response Time: 5.0 ms
Update Rate: 0.4 ms

Communication & Interface
Channels: 4 single‑ended input channels (one group)
Configuration: Jumper selectable for voltage or current mode, and for bipolar/unipolar voltage operation
Diagnostics: OK LED for backplane power, INT PWR LED for field circuit power; fault reporting on loss of internal power
Wiring: Supports field wiring on carriers with two‑ or three‑row terminals

Environmental
Operating Temperature: 0 °C to +60 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Installation: Mounts in VersaMax PLC rack or carrier environment

Dimensions & Weight
Dimensions (L × W × H): Approx. 120 × 30 × 110 mm
Weight: Approx. 0.14 kg
