GE HE693THM884 | Thermocouple Input Module Thoughtful service Fast Shipping!

Brand：GE Fanuc PLC

Item No.：GE HE693THM884

Product origin：USA

Dimensions:120 × 30 × 110 mm

Weight:0.3 kg

Original import channel supply, support testing instructions, worry-free after-sales

A wide range of spot models, support quick docking of procurement needs, welcome to inquire!

Product Introduction：

Overview

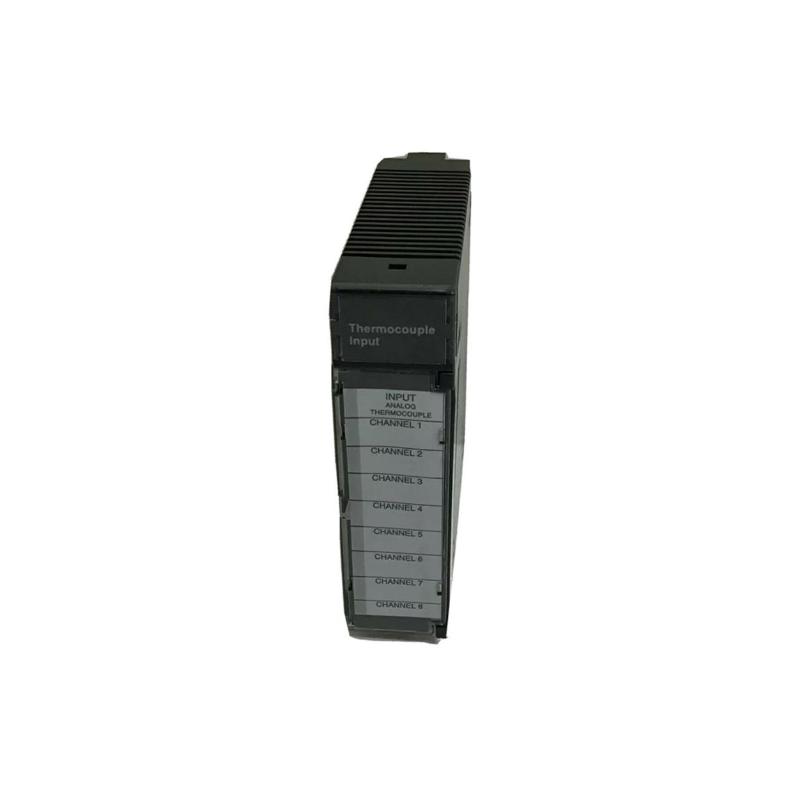

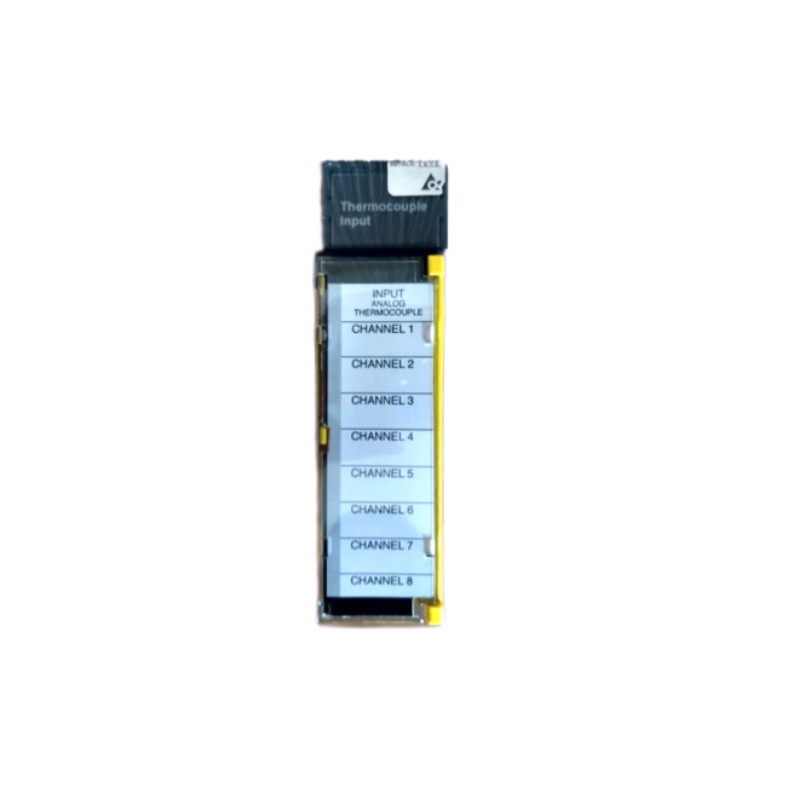

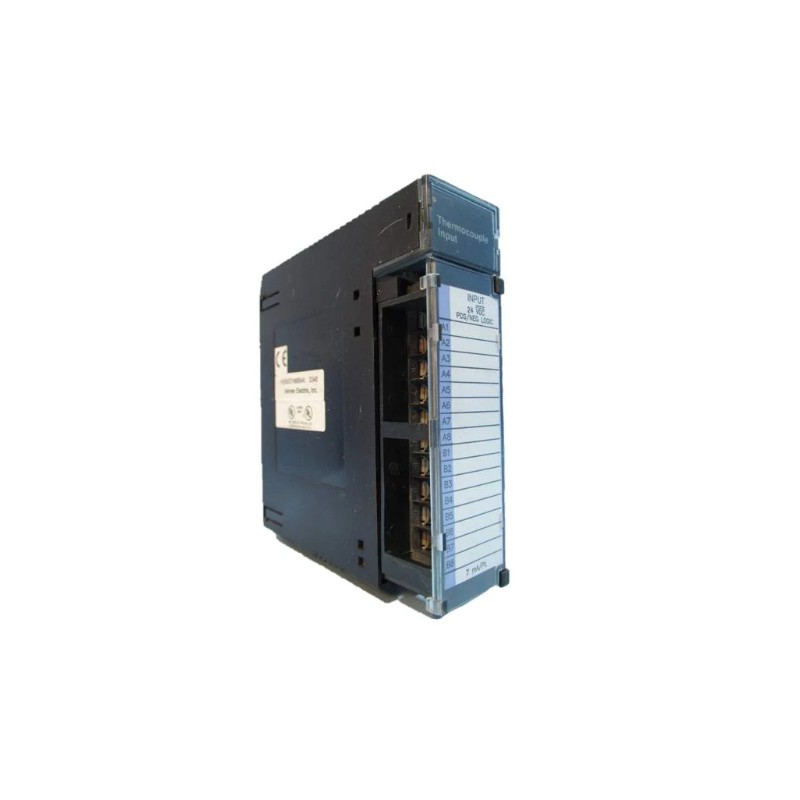

The GE HE693THM884 is an 8‑channel thermocouple input module designed for the Series 90‑30 PLC system. It provides high-resolution temperature measurement and supports multiple thermocouple types for industrial automation applications.

General Information
Brand: GE (General Electric)
Country of Origin: United States
Model Number: HE693THM884
Series: Series 90‑30 I/O Modules
Product Type: Thermocouple Input Module
Application: Industrial temperature monitoring and control

Power Specifications
Supply Voltage: 5 V DC
Power Consumption: Approx. 100 mA
Input Types Supported: Thermocouples J, K, and others
Resolution: 0.1 °C
Accuracy: ±0.5 °C typical

Communication & Interface
Channels: 8 thermocouple input channels
Update Rate: Approx. 40 channels per second
Diagnostics: Open‑circuit detection and channel fault reporting
Interface: Series 90‑30 PLC backplane connection

Environmental
Operating Temperature: 0 °C to +60 °C
Humidity: Up to 95% RH, non‑condensing
Installation: Rack-mounted in industrial control cabinet

Dimensions & Weight
Dimensions (L × W × H): Estimated 120 × 30 × 110 mm
Weight: Approx. 0.30 kg
