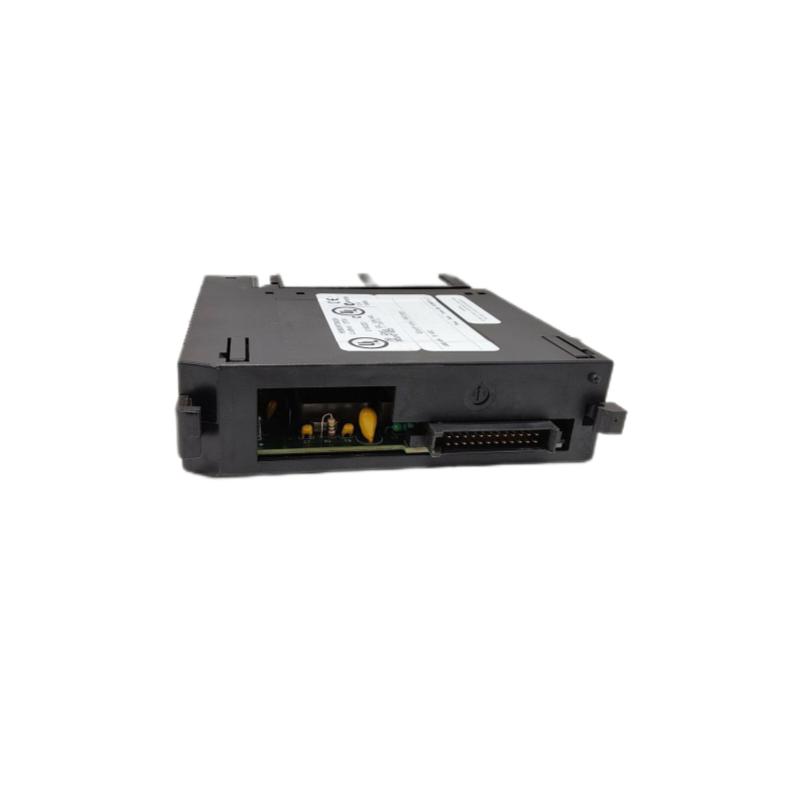

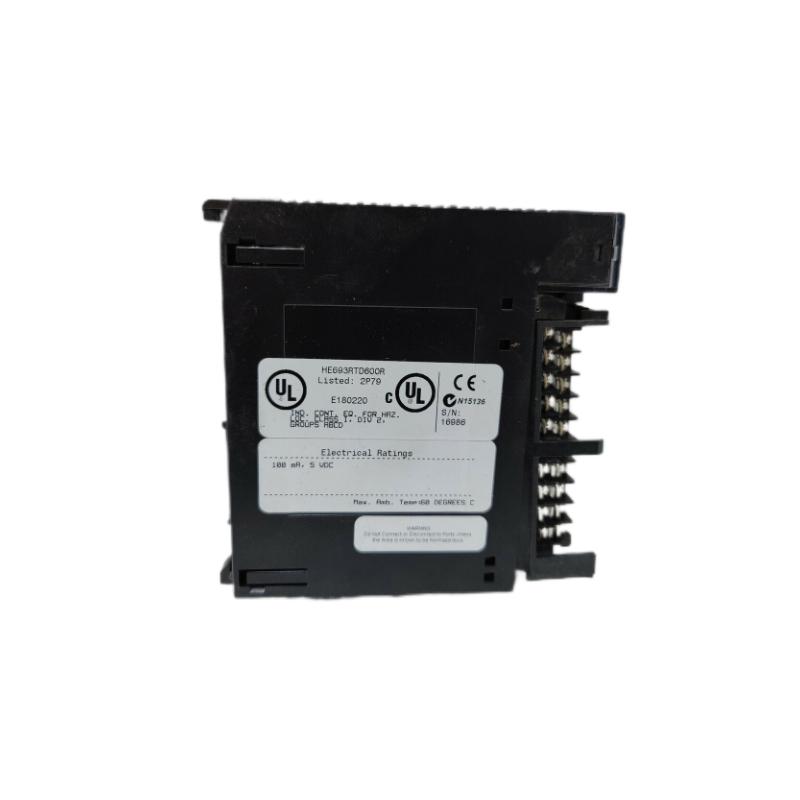

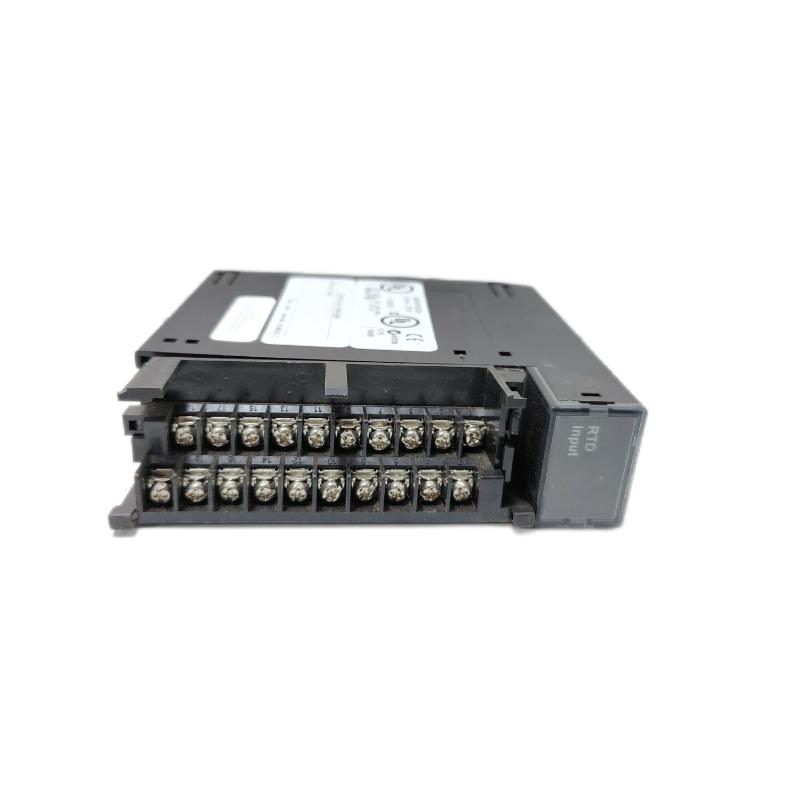

GE HE693RTD600 | RTD Input Module Quality Selection Original

Brand：GE Fanuc PLC

Item No.：GE HE693RTD600

Product origin：USA

Dimensions:120 × 30 × 110 mm

Weight:0.27 kg

Original overseas introduction, test assistance instructions support, stable and reliable service

Product inventory is continuously updated, and order needs are responded to quickly. Welcome to call for consultation!

Product Introduction：

Overview
The GE HE693RTD600 is a high‑precision RTD (Resistance Temperature Detector) input module designed for use with the Series 90‑30 PLC platform. It allows direct connection of RTD temperature sensors without the need for external signal transmitters.

General Information
Brand: GE (General Electric)
Country of Origin: United States
Model Number: HE693RTD600
Series: Series 90‑30 I/O Modules
Product Type: RTD Input Module
Channels: 6
Application: Temperature monitoring and control in industrial automation systems

Power Specifications
Supply Voltage: 5 V DC typical
Power Consumption: Approx. 75 mA at 5 V DC
Input Types Supported: PT‑100, PT‑1000, Ni‑120, Cu‑10, Cu‑50, Cu‑53, Cu‑100, TD5R, linear resistance
Resolution: 0.5 °C or 0.5 °F
Accuracy: ±0.5 °C typical; ±1.0 °C for Cu‑10 and TD5R types

Communication & Interface
Inputs: 6 RTD inputs
Update Rate: 50 channels per second
Terminal Interface: Standard I/O module terminal for field wiring
Diagnostics: Input channel fault detection, high sensitivity to wiring abnormalities

Environmental
Operating Temperature: 0 °C to +60 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Installation: Rack‑mounted in standard industrial control cabinet

Dimensions & Weight
Dimensions (estimated): ~ 120 × 30 × 110 mm
Weight: Approx. 0.27 kg
