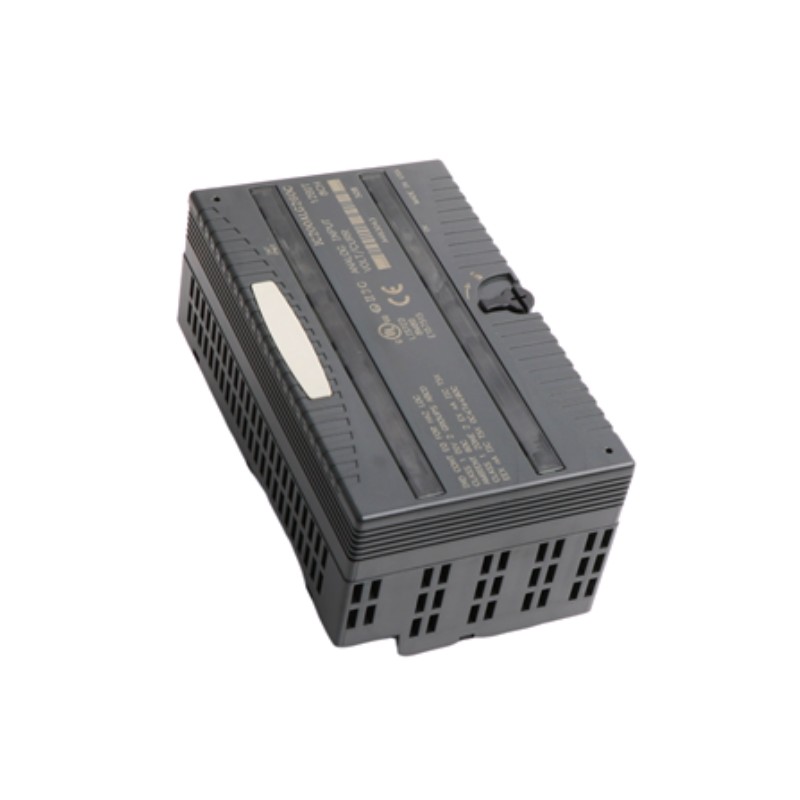

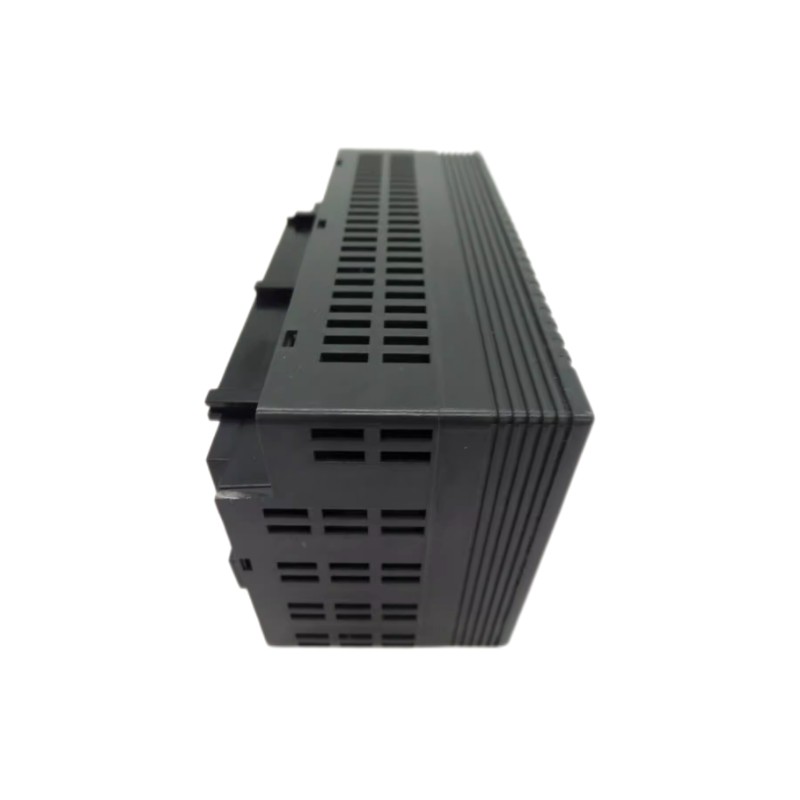

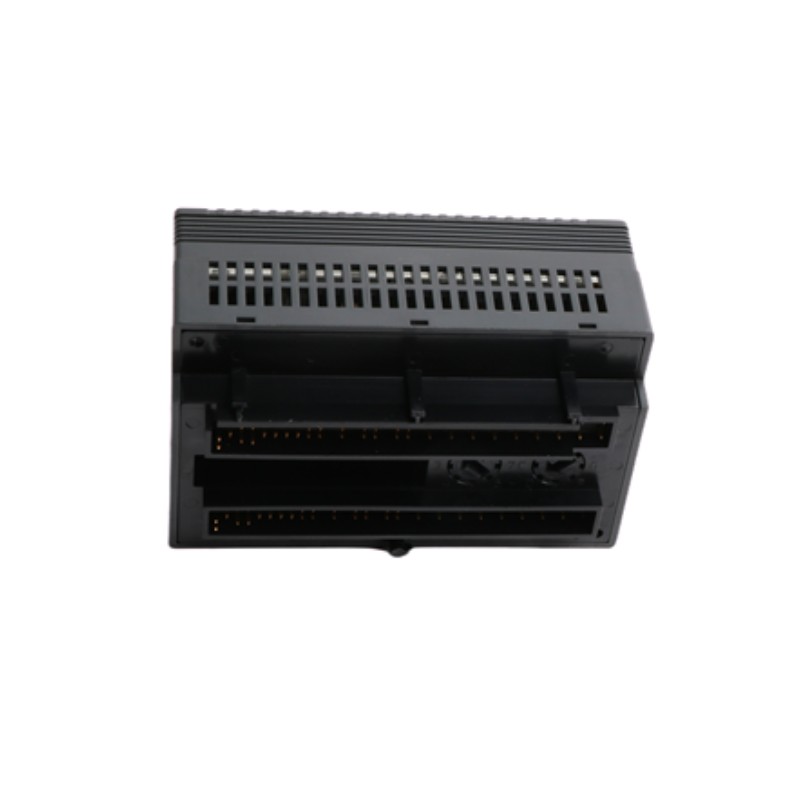

GE IC200ALG260 | 8‑Channel Analog Input Module Rave reviews 100% New

Brand：GE Fanuc PLC

Item No.：GE IC200ALG260

Product origin：USA

Dimensions:120 × 30 × 110 mm

Weight:0.26 kg

Compliant import, support for testing, and fast response to after-sales service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview
The GE IC200ALG260 is an 8‑channel analog input module from the VersaMax series. It supports voltage (±10 V or 0–10 V) and current (4–20 mA) inputs, providing high-resolution signal acquisition for industrial automation and process control.

General Information
Brand: GE (General Electric)
Country of Origin: United States
Model Number: IC200ALG260
Series: VersaMax I/O Modules
Product Type: Analog Input Module
Application: Field sensor voltage or current measurement for PLC systems

Power Specifications
Supply Voltage: 5 V DC from backplane
Current Consumption: Approx. 130 mA
Input Ranges: Voltage: –10 V to +10 V, 0 to +10 V; Current: 4–20 mA
Resolution: 12‑bit
Update Rate: 0.4 ms per module

Communication & Interface
Channels: 8 single-ended input channels
Input Impedance: 126 kΩ in voltage mode, 200 Ω in current mode
Diagnostics: LEDs for internal power and module status; fault reporting for loss of internal power
Interface: VersaMax PLC backplane connection

Environmental
Operating Temperature: 0 °C to +60 °C
Humidity: Up to 95% RH, non‑condensing
Installation: Rack-mounted in industrial control cabinet

Dimensions & Weight
Dimensions (L × W × H): Estimated 120 × 30 × 110 mm
Weight: Approx. 0.26 kg

Genuine and new items, supported by reliable quotation service.

The channel of this product is real and reliable, the delivery efficiency is high, and it supports project-based procurement price coordination.
