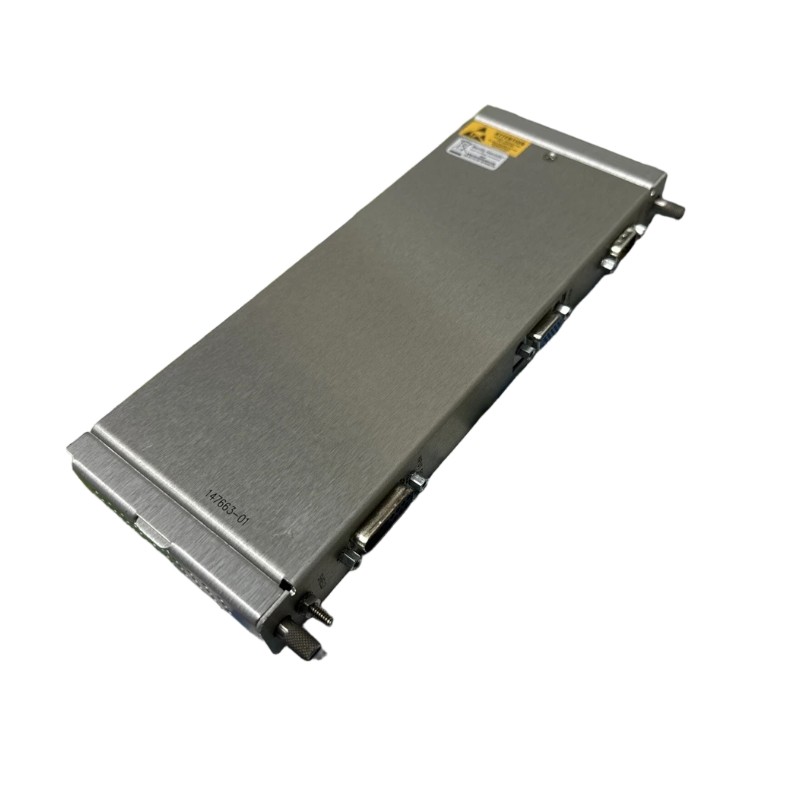

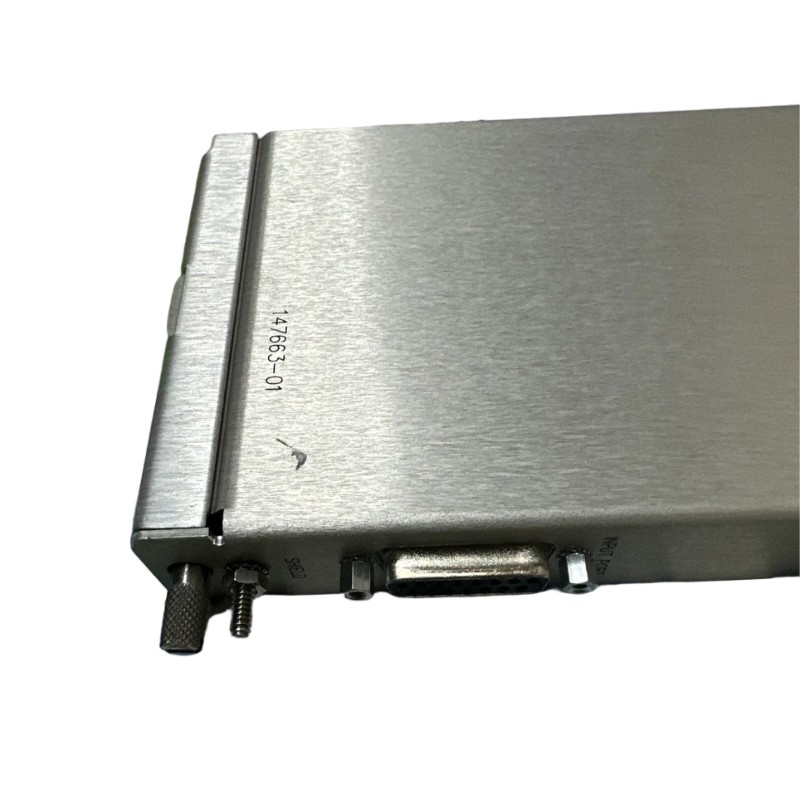

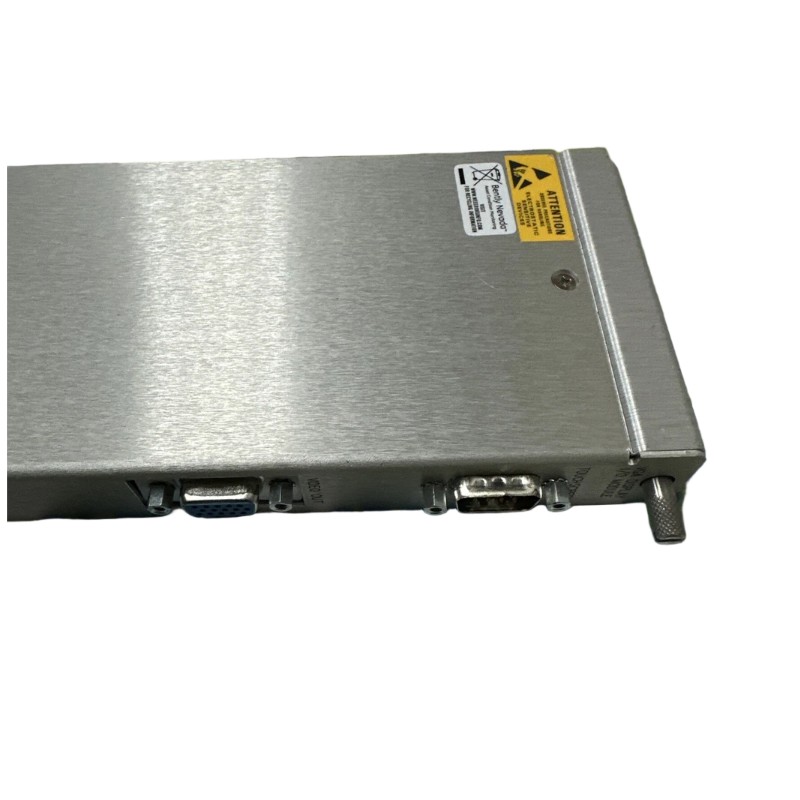

Bently Nevada 3500/94M 147663‑01 | VGA Display I/O Module Hot Items 30-Day Returns！

Brand：Bently Nevada PLC

Item No.：Bently Nevada 3500/94M 147663-01

Product origin：USA

Dimensions:241.3 x 24.4 x 99.1 mm

Weight:0.34 kg

Original source, data support testing content, efficient after-sales processing

The inventory covers multiple brands and series, supports fast delivery, welcome to call for negotiation!

Product Introduction：

Overview
The 147663‑01 module from Bently Nevada is part of the 3500/94M system, serving as a VGA display input/output interface. It enables the display of system data, alarms and diagnostics on a standard monitor via touch‑screen technology. Brand: Bently Nevada. Country of Origin: USA.

General Information
Part Number: 147663‑01
Manufacturer: Bently Nevada
Brand: Bently Nevada
Country of Origin: United States of America
Series / Model: 3500/94M
Type: VGA Display I/O Module
Function: Provides the physical interface for VGA display in the 3500 rack system, enabling operator interaction and system monitoring.

Power Specifications
Power Consumption: Up to 15.5 W maximum for combined display unit & interface module, with the display unit itself at approximately 5.6 W.
Supply Interface: +24 V DC nominal supply typical for rack modules in the 3500/94 series.

Communication & Interface
Video Inputs: Accepts VGA inputs from the 3500 rack I/O for monitoring and control.
Display Output: Touch‑screen capable monitor attached to module; display location can be remote (up to ~10 m from rack).
Operator Interface: Touch‑screen menus, custom screen setup (up to nine custom screens), local display of alarm, event and channel data.

Environmental
Operating Temperature: –20 °C to +65 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when installed inside an industrial cabinet.

Dimensions & Weight
Dimensions (H × W × D): 241.3 x 24.4 x 99.1 mm
Weight: 0.34 kg
