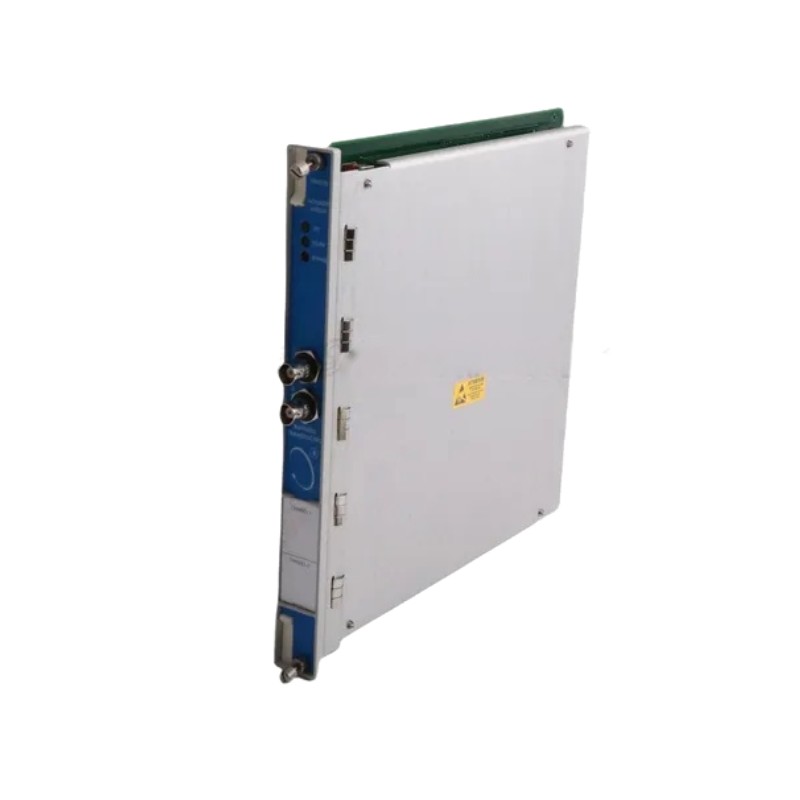

Bently Nevada 3500/94 184826‑01 | VGA Display Monitor Module Hot Items 12-Month Warranty

Brand：Bently Nevada PLC

Item No.：Bently Nevada 3500/94 184826-01

Product origin：USA

Dimensions:241.3  × 24.4  × 241.8 mm

Weight:0.73 kg

Original imported channel supply, support for testing instructions, worry-free after-sales

Large stock, diverse series, adapt to different working conditions, welcome to consult!

Product Introduction：

Overview
The 184826‑01 is the main monitor module for the Bently Nevada 3500/94M VGA Display system, providing a visual interface for system status, alarms and channel data within the 3500 machinery protection system. Brand: Bently Nevada. Country of Origin: USA.

General Information
Part Number: 184826‑01
Manufacturer: Bently Nevada
Brand: Bently Nevada
Country of Origin: United States of America
Series / Model: 3500/94M VGA Display
Type: Monitor Module
Function: Interfaces with 3500 rack I/O and display to present system information

Power Specifications
Power Consumption: 4.6 W maximum
Supply Interface: +24 V DC nominal front‑panel out to display (module provides power to monitor)
Operating Voltage Range: 22.5 to 25.5 V DC input for compatible modules

Communication & Interface
Video Output: Analog VGA interface supporting up to two display sizes (10″ or 15″)
Data Ports: RS‑232 interface for touch‑screen controller, network interface for system status
Rack Interface: Connects to rear I/O module slot; display‑unit can be mounted up to 6 m (20 ft) from rack

Environmental
Operating Temperature: –20 °C to +65 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: Intended for cabinet installation; module complies with industrial EMC and safety directives

Dimensions & Weight
Dimensions (H × W × D): 241.3  × 24.4  × 241.8 mm
Weight: 0.73 kg

Brand-new original products ready for dispatch, with 24/7 customer assistance for pricing inquiries.

Imported products have stable supply, flexible prices, fast delivery response, and support solutions for large quantities.
