Product Introduction：

Overview

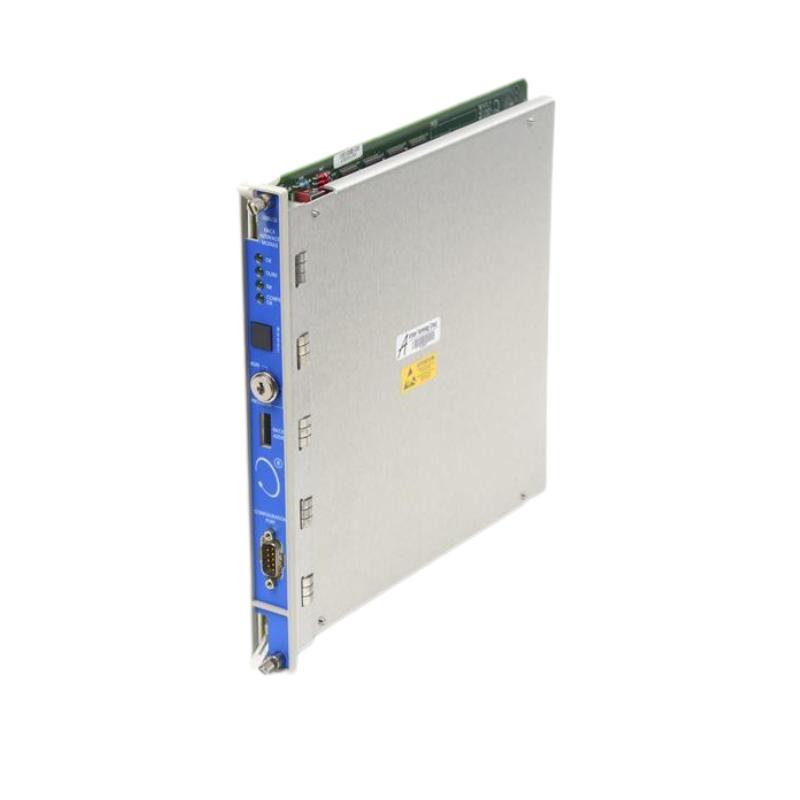

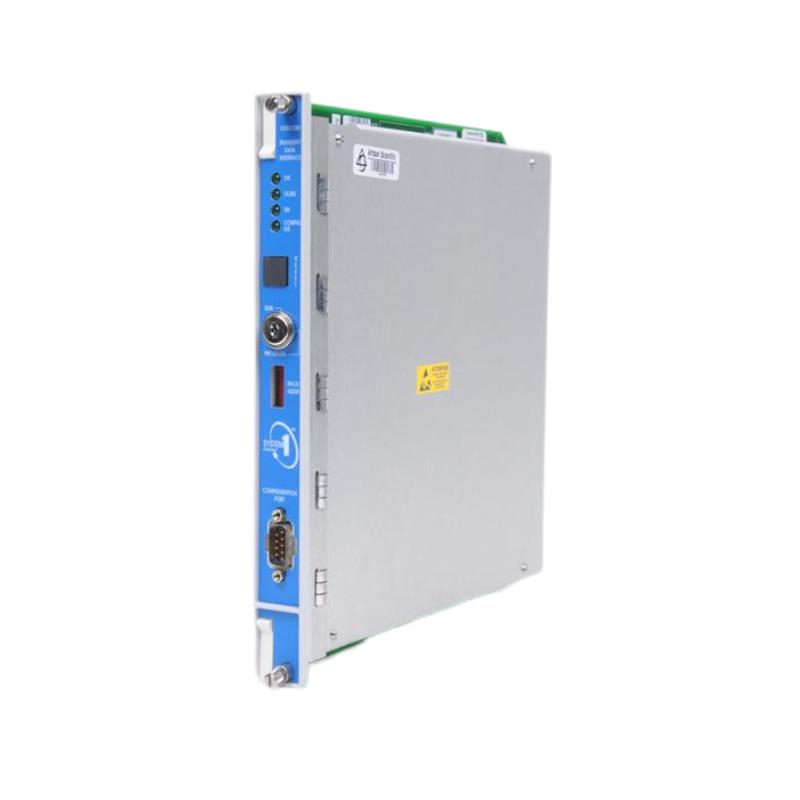

The Bently Nevada 3500/22M 138607-01 + 146031-01 is a Transient Data Interface (TDI) Module designed for the 3500 series machinery monitoring system. This module is responsible for collecting and transmitting transient vibration data, offering detailed insights into machinery health during dynamic conditions, such as startup, shutdown, or other transient events.

General Information
Part Numbers: 138607-01 (TDI Module) + 146031-01 (Accessory)
Manufacturer: Bently Nevada
Country of Origin: United States
Series: 3500 Vibration Monitoring
Type: Transient Data Interface (TDI) Module
Functionality: Collects and transmits transient vibration data to the 3500 system for detailed machinery analysis during transient conditions

Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 15 W
Input: Powered from the system backplane
Protection: Surge and reverse-polarity protection

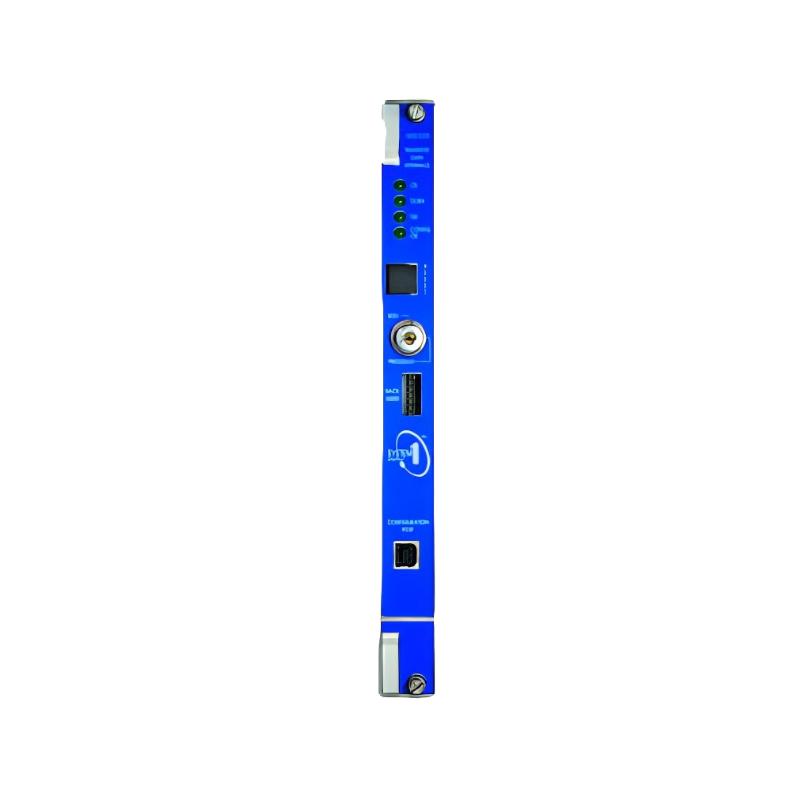

Indicators: LED indicators for power, communication, and fault status

Communication & Interface
Interface: Interfaces with the 3500 series system for data transmission
Protocols Supported: Compatible with Bently Nevada 3500 series communication protocols
Diagnostics: Provides real-time diagnostics and fault detection via LED indicators

Environmental
Operating Temperature: −40 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 or standard industrial environment

Dimensions & Weight
Dimensions (L × W × H): 241.3 × 24.4 × 241.8 mm
Weight: 0.91 kg
