Bently Nevada 3500/94 149356‑01 | Display Router Box Rave reviews Original

Brand：Bently Nevada PLC

Item No.：Bently Nevada 3500/94 149356-01

Product origin：USA

Dimensions:241.3 x 24.4 x 99.1 mm

Weight:0.34 kg

The source of goods is regular, the test instructions can be coordinated, and the after-sales service continues to follow up

The product inventory is continuously updated, and the order needs are quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview

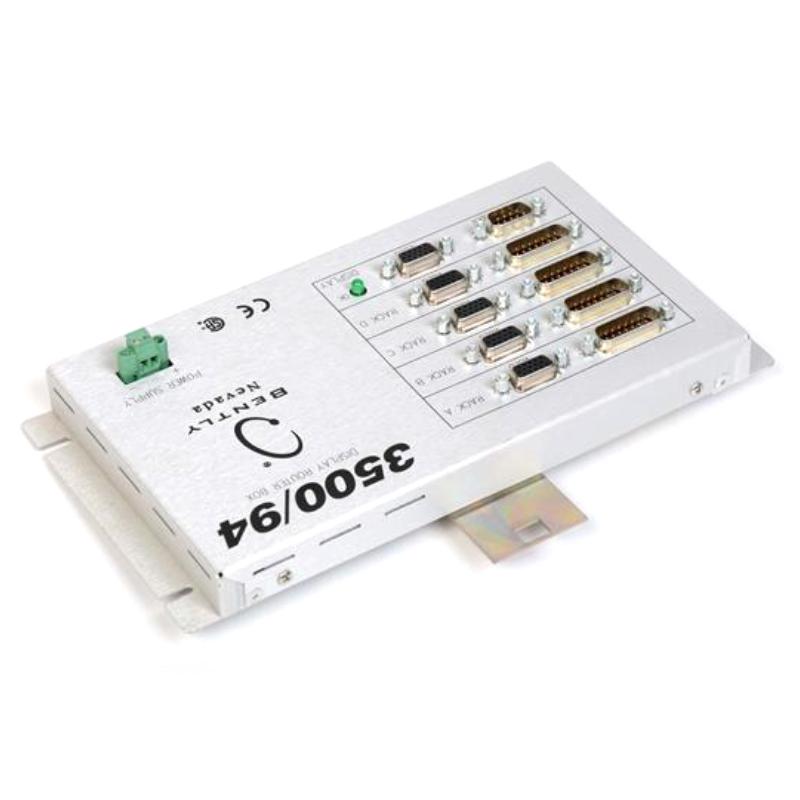

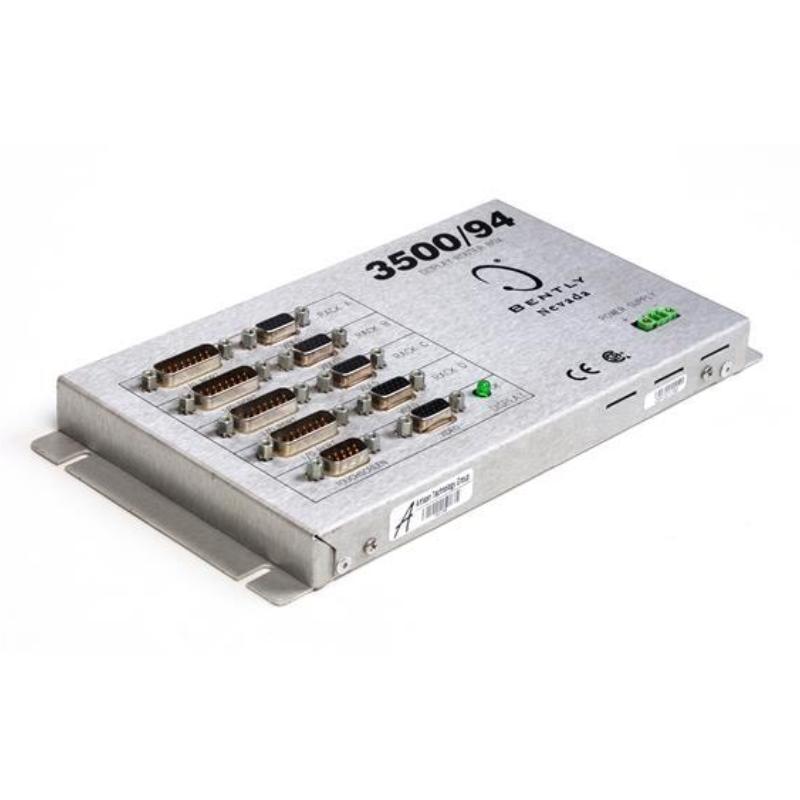

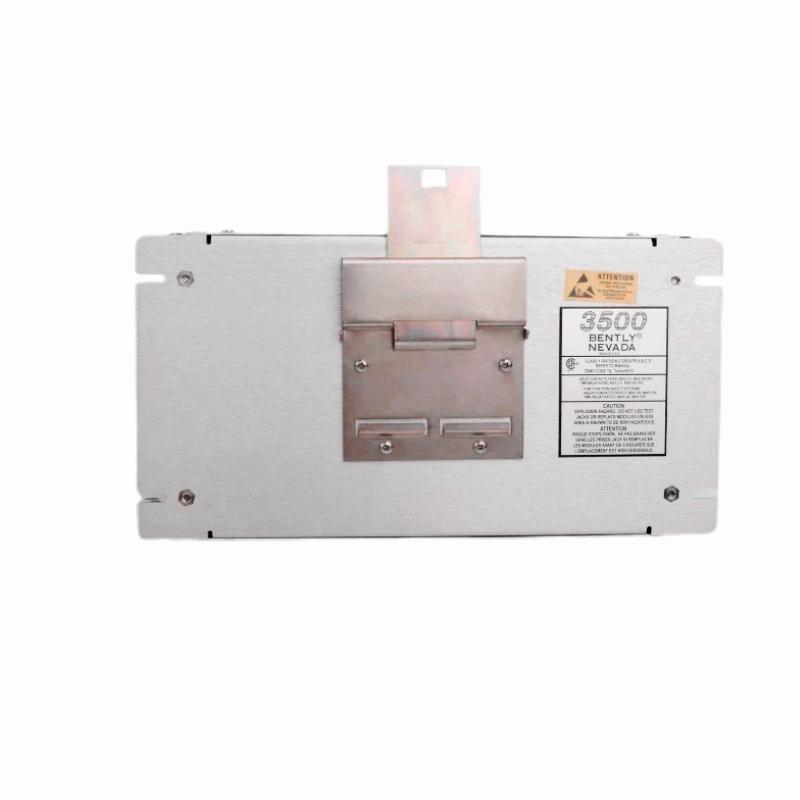

The Bently Nevada 3500/94 149356‑01 is a display router box designed for the 3500 series machinery protection system. It allows up to four racks to share a single display and enhances monitoring flexibility for complex systems. Brand: Bently Nevada. Country of Origin: USA.

General Information
Part Number: 149356‑01
Manufacturer: Bently Nevada
Brand: Bently Nevada
Country of Origin: United States of America
Series / Model: 3500/94
Type: Display Router Box
Function: Enables one display to switch between up to four protection system racks

Power Specifications
Supply Voltage: +24 V DC nominal
Typical Power Consumption: ~4.7 W (routing box portion)
Signal Interfaces: Multiple VGA inputs and RS‑232/RS‑485 communication ports for rack data

Communication & Interface
Video Inputs: Supports up to four VGA inputs from 3500 racks
Display Output: Single VGA output to monitor or touch screen
Status Indicators: “OK” and fault LEDs indicate router health and current rack selection
Mounting Distance: Router must be installed within ~6 m (20 ft) of each 3500 rack

Environmental
Operating Temperature: ‑30 °C to +65 °C
Storage Temperature: ‑40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 (for cabinet installation)

Dimensions & Weight
Dimensions (H × W × D): 241.3 x 24.4 x 99.1 mm
Weight: 0.34 kg
