Bently Nevada 3500/05-01-02-00-00 | System Rack 12-Month Warranty 30-Day Returns！

Brand：Bently Nevada PLC

Item No.：Bently Nevada 3500/05-01-02-00-00

Product origin：USA

Dimensions:Rack Size : 19-inch (14 module slots)

Weight:4.5 kg

Original source, data support testing content, and efficient after-sales processing

Regular models are in stock for a long time, and the inventory is stable. Welcome to inquire about the price!

Product Introduction：

Overview

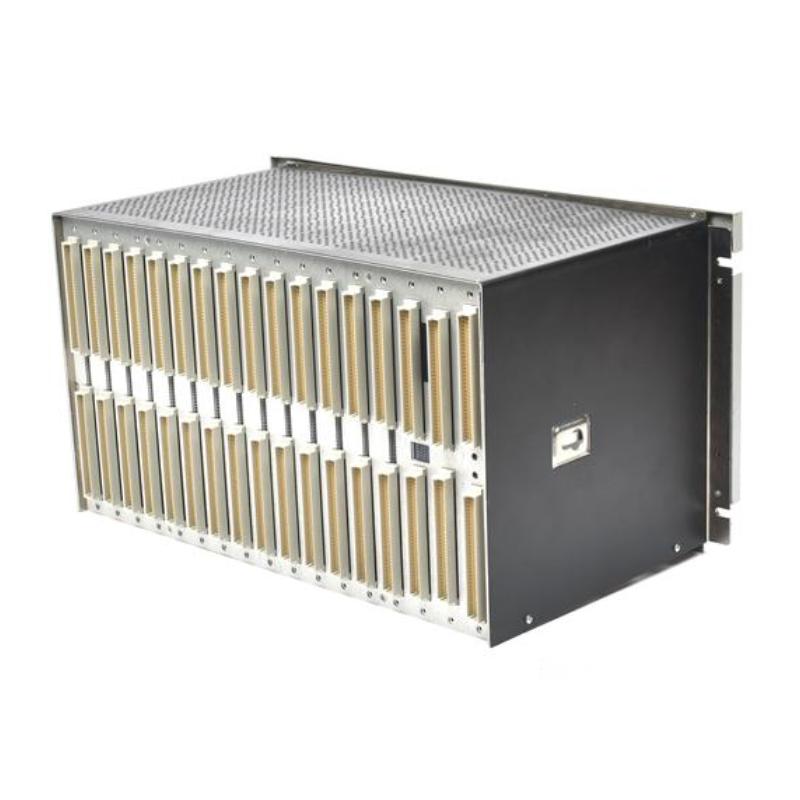

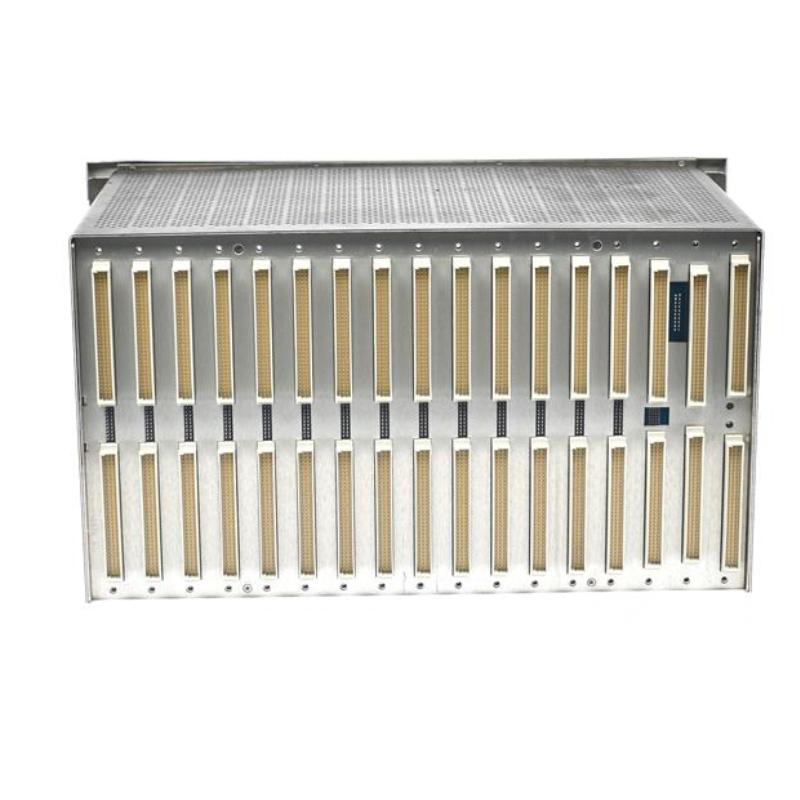

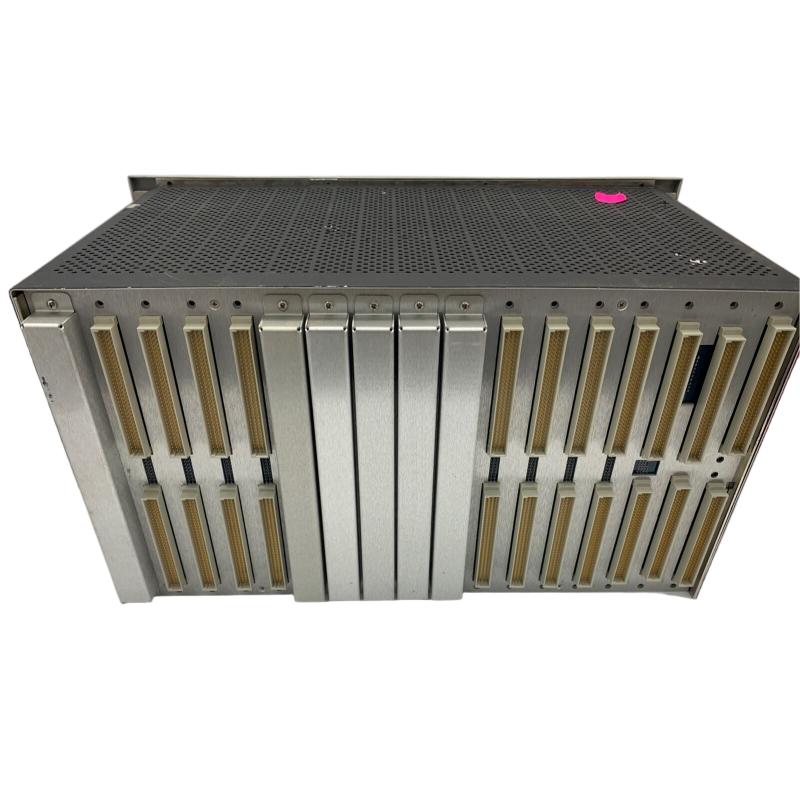

The Bently Nevada 3500/05-01-02-00-00 is a system rack for the Bently Nevada 3500 Machinery Protection System. It provides mechanical support and electrical backplane connectivity for housing monitoring, communication, and power modules, ensuring reliable machinery condition monitoring and system operation.

General Information

Part Number: 3500/05-01-02-00-00
Manufacturer: Bently Nevada
Brand / Country of Origin: Bently Nevada / USA
Series: 3500 Series
Type: System Rack
Mounting: 19-inch rack or panel installation
Technology: Modular backplane for signal and power distribution between installed modules

Power Specifications

Supply Voltage: Provided by the 3500 Power Supply Module
Power Distribution: Internal backplane distributes power to all installed modules
Protection: Overvoltage and short-circuit protection
Indicators: None (status displayed on individual modules)

Communication & Interface

Rack Interface: Backplane providing signal and power connections
Supported Modules: Power supply, communication, I/O, and monitoring modules
Connectivity: Internal data and power routing between modules
Configuration: Managed via system software and installed modules

Environmental

Operating Temperature: 0 to +65 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (for indoor cabinet installation)

Dimensions & Weight

Rack Size : 19-inch (14 module slots)

Weight: 4.5kg

Authentic new products always available, contact us anytime for price details.

The product supports project procurement, fast delivery, high price matching, and discounts can be coordinated for bulk orders.
