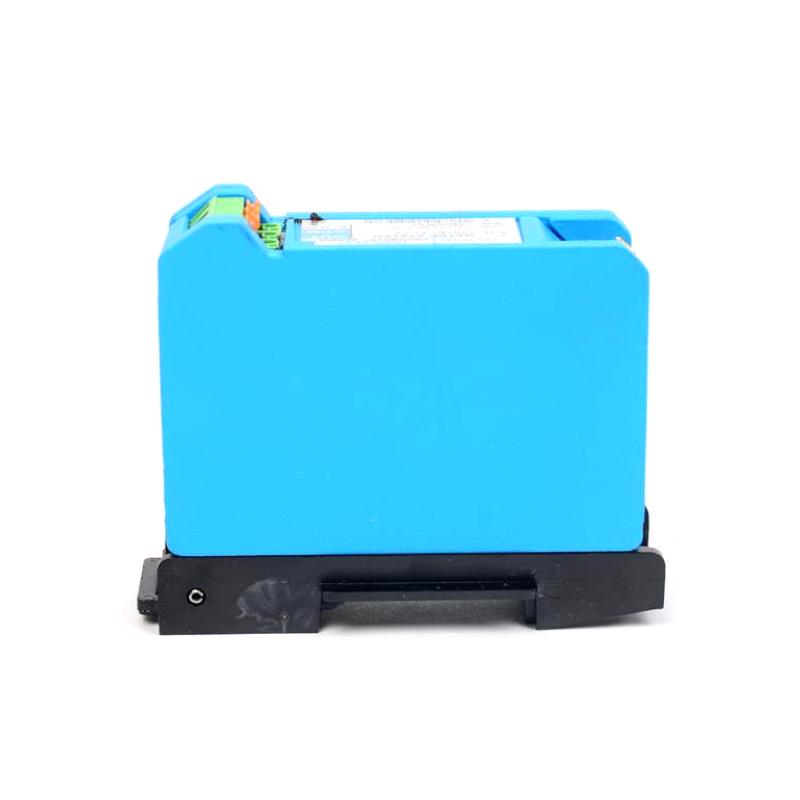

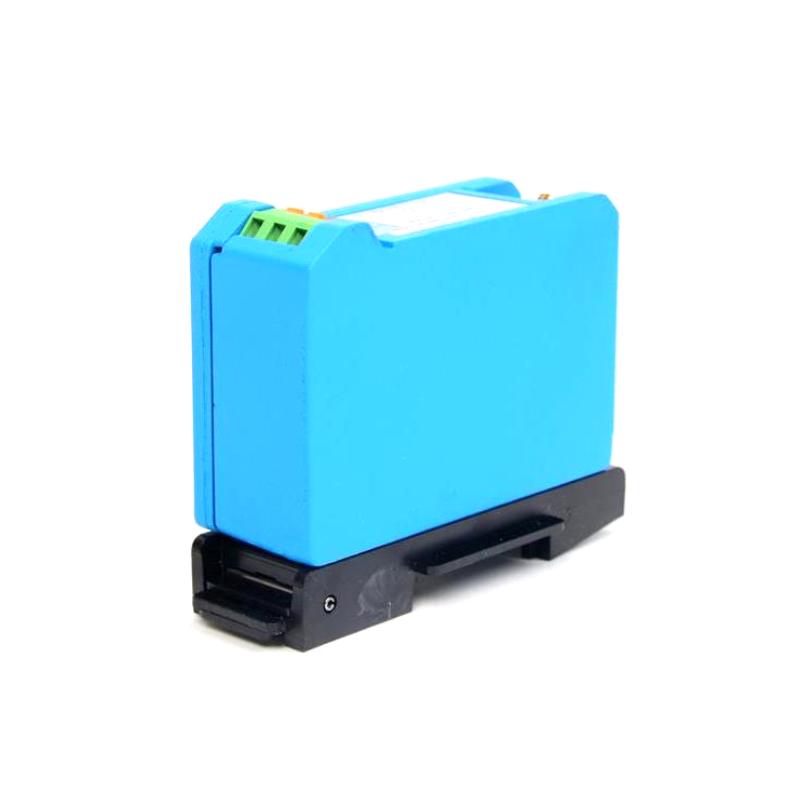

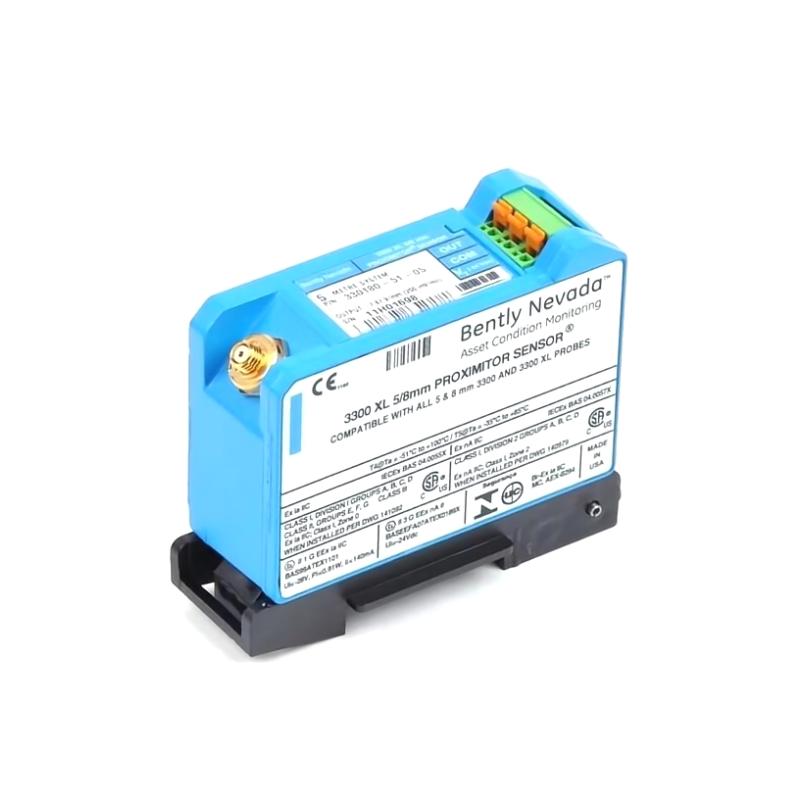

Bently Nevada 330180-51-05 | Proximitor Sensor 12-Month Warranty 30-Day Returns！

Brand：Bently Nevada PLC

Item No.：Bently Nevada 330180-51-05

Product origin：USA

Dimensions:81.3 x 35.1 x 63.5 mm

Weight:0.246 kg

The source of the product is clear and reliable, supports third-party testing, and has complete after-sales support

Regular models are in stock for a long time, and the inventory is stable. Welcome to inquire about the price!

Product Introduction：

Overview

The Bently Nevada 330180-51-05 is a high-precision eddy-current Proximitor sensor from the 3300 XL family. It is engineered to measure shaft displacement and vibration non-contact, and is widely used in machinery protection and condition monitoring systems.

General Information

Brand: Bently Nevada
Country of Origin: United States
Model: 330180-51-05
Part Number: 330180-51-05
Product Type: Proximitor Sensor / Transducer
Series: 3300 XL
Application: Machinery monitoring, shaft position & vibration measurement

Power Specifications

Excitation Voltage: 17.5 to 26 V DC (unbarriered)
Operating Current: Approx. 12 mA
Output Sensitivity: Variable, proportional to probe gap
Protection: Internal overload and fault detection

Communication & Interface

Output Signal: Analog voltage corresponding to gap extension
Interface: Compatible with 3300 XL monitor input modules
Diagnostics: Self-check of sensor electronics and linear range
Probe Compatibility: 5/8 mm probe and matching extension cable

Environmental

Operating Temperature: –55 °C to +120 °C
Storage Temperature: –60 °C to +125 °C
Humidity: 5% to 95% RH, non-condensing
Protection Rating: IP66 / IP67 (when installed properly)

Dimensions & Weight

Dimensions: 81.3 x 35.1 x 63.5 mm

Weight: 0.246 kg
