Bently Nevada 330180-X1-05 | Proximitor Sensor Trusted supplier New In Stock

Brand：Bently Nevada PLC

Item No.：Bently Nevada 330180-X1-05 145004-57

Product origin：USA

Dimensions:81.3 x 35.1 x 63.5 mm

Weight:0.246 kg

Original source, data support test content, efficient after-sales processing

Regular models are in stock for a long time, inventory is stable, welcome to inquire about prices!

Product Introduction：

Overview

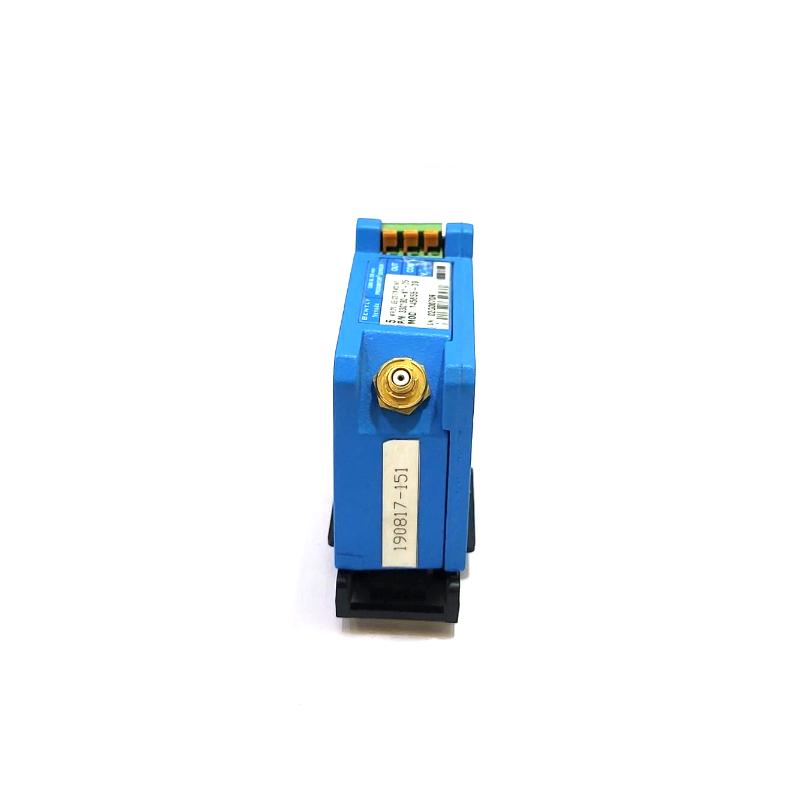

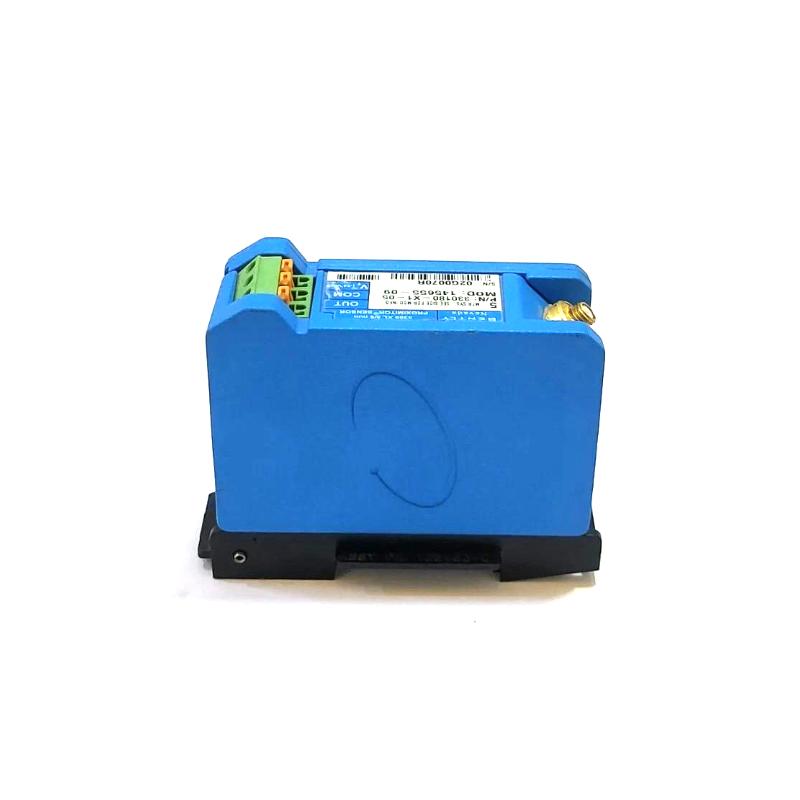

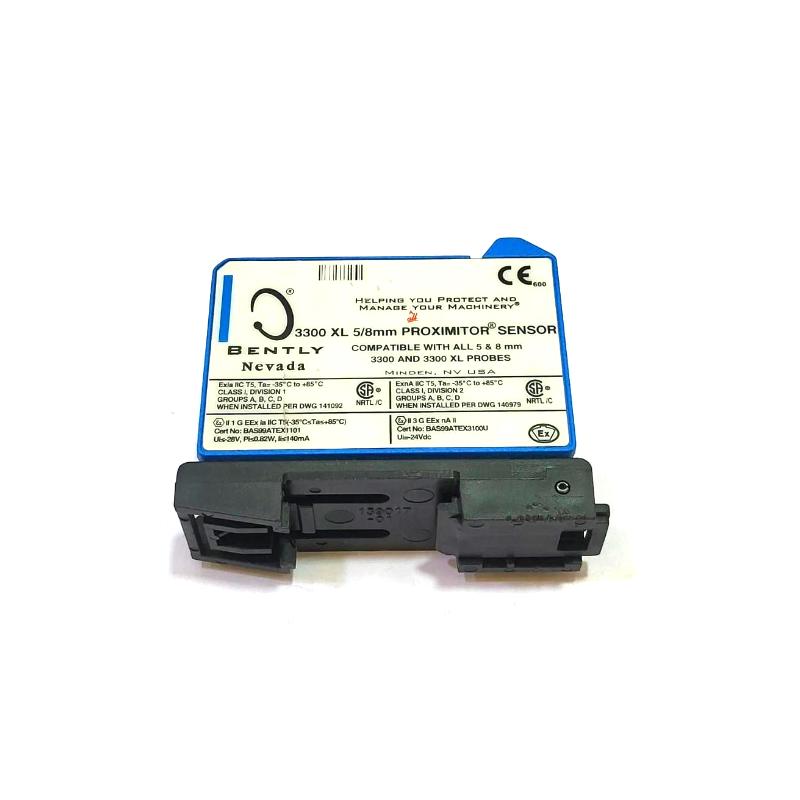

The Bently Nevada 330180-X1-05 (MOD: 145004-57) is a precision 3300 XL Proximitor sensor designed for non-contact vibration and displacement measurement in rotating machinery. It provides excellent EMI/RFI immunity and ensures stable, accurate performance in demanding industrial environments.

General Information

Brand: Bently Nevada
Country of Origin: United States
Model: 330180-X1-05
Modification Number: 145004-57
Product Type: Proximitor Sensor / Eddy-Current Transducer
Series: 3300 XL
Application: Shaft vibration and displacement monitoring

Power Specifications

Excitation Voltage: 17.5 to 26 V DC (unbarriered)
Operating Current: ~12 mA typical
Output Sensitivity: ~7.87 V/mm (typical calibration)
Protection: Internal overload and high EMI/RFI immunity

Communication & Interface

Output Signal: Analog voltage proportional to probe-to-target distance
Interface Compatibility: Works with 3300 XL monitoring modules
Mounting: DIN-rail or panel mount
Probe Compatibility: 5/8 mm or 8 mm probes with matching extension cables

Environmental

Operating Temperature: –55 °C to +120 °C
Storage Temperature: –60 °C to +125 °C
Humidity: 5% to 95% RH, non-condensing
Protection Rating: IP66 / IP67 when properly installed

Dimensions & Weight

Dimensions: 81.3 x 35.1 x 63.5 mm

Weight: 0.246 kg
