Bently Nevada 330180-90-05 | Proximitor Sensor Trusted supplier 30-Day Returns！

Brand：Bently Nevada PLC

Item No.：Bently Nevada 330180-90-05

Product origin：USA

Dimensions:81.3 x 35.1 x 63.5 mm

Weight:0.246 kg

Compliant import, support for testing, and fast response to after-sales service

Flexible stock of various models, support for rapid response, welcome to cooperate and communicate!

Product Introduction：

Overview

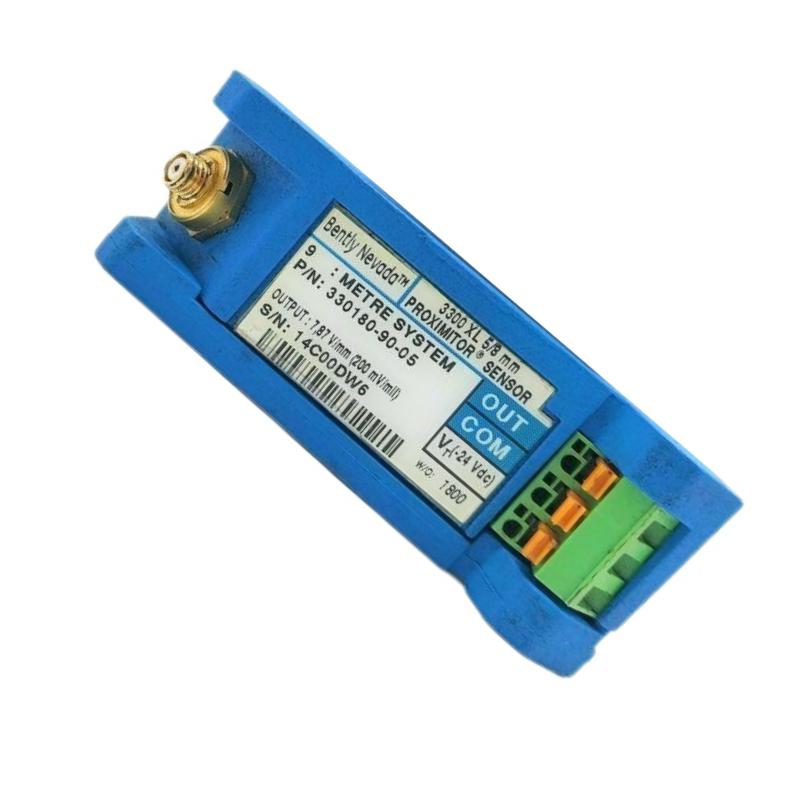

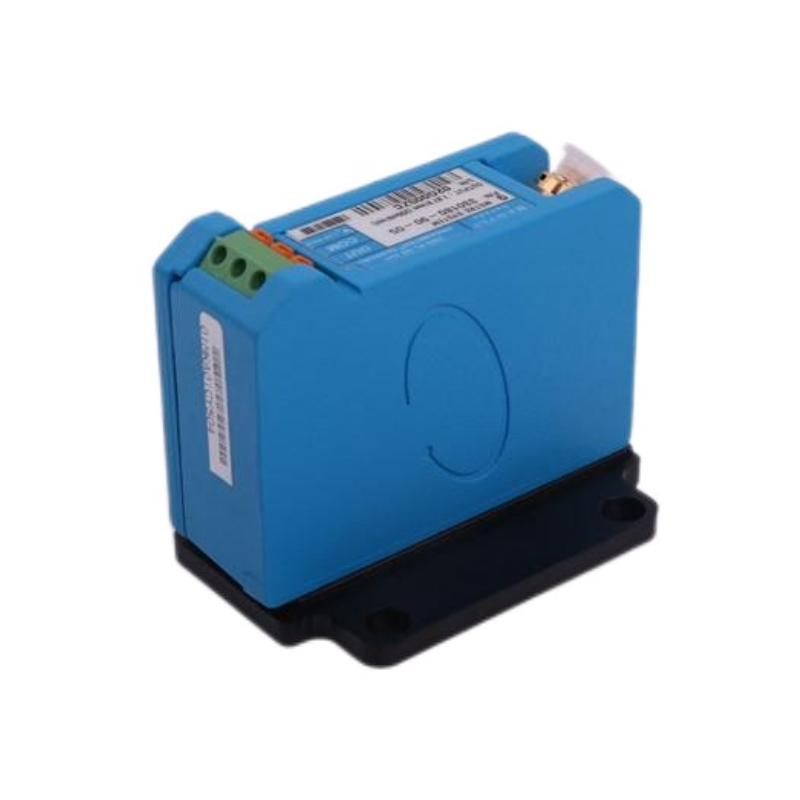

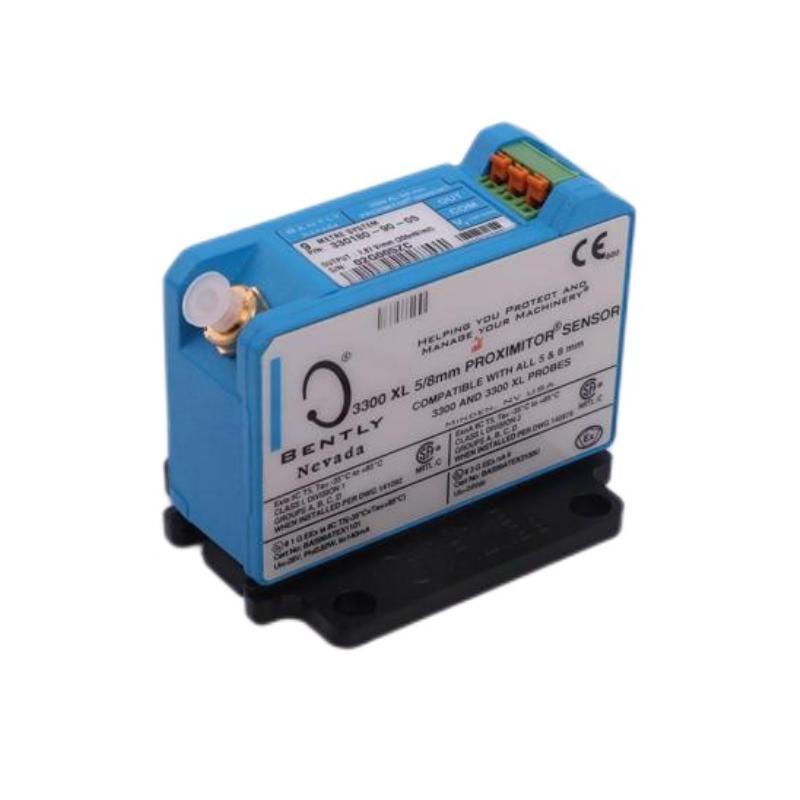

The Bently Nevada 330180-90-05 is a 3300 XL proximitor (eddy current) sensor configured with a 9.0 m system length and panel mounting. It provides non-contact vibration and displacement measurement for rotating machinery.

General Information

Brand: Bently Nevada
Country of Origin: United States
Model: 330180-90-05
Product Type: Proximitor Sensor / Transducer
Series: 3300 XL
Mounting Method: Panel mount

Power Specifications

Excitation Voltage: 17.5 to 26 V DC
Operating Current: ~12 mA typical
Power Sensitivity: <2 mV change per 1 V variation
Protection: Internal overload and fault protection

Communication & Interface

Output Signal: Analog voltage proportional to gap
Interface: Compatible with 3300 XL monitoring modules
Diagnostics: Self-check and linearity monitoring
Probe Compatibility: 5/8 mm probes and matching extension cables

Environmental

Operating Temperature: –55 °C to +120 °C
Storage Temperature: –60 °C to +125 °C
Relative Humidity: 5% to 95% RH, non-condensing
Protection Rating: IP66 / IP67 when properly installed

Dimensions & Weight

Dimensions: 81.3 x 35.1 x 63.5 mm

Weight: 0.246 kg
