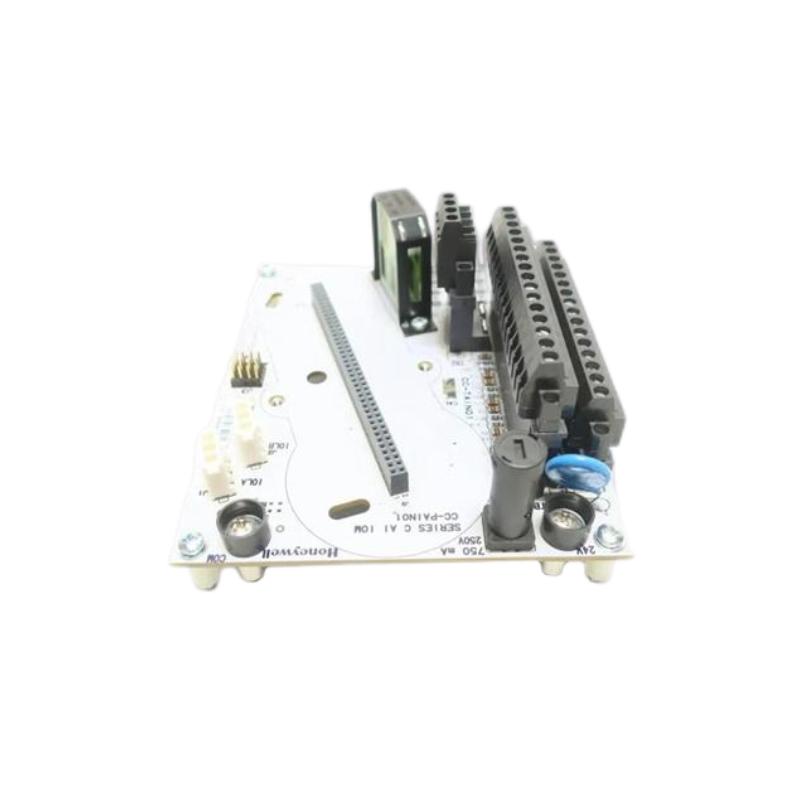

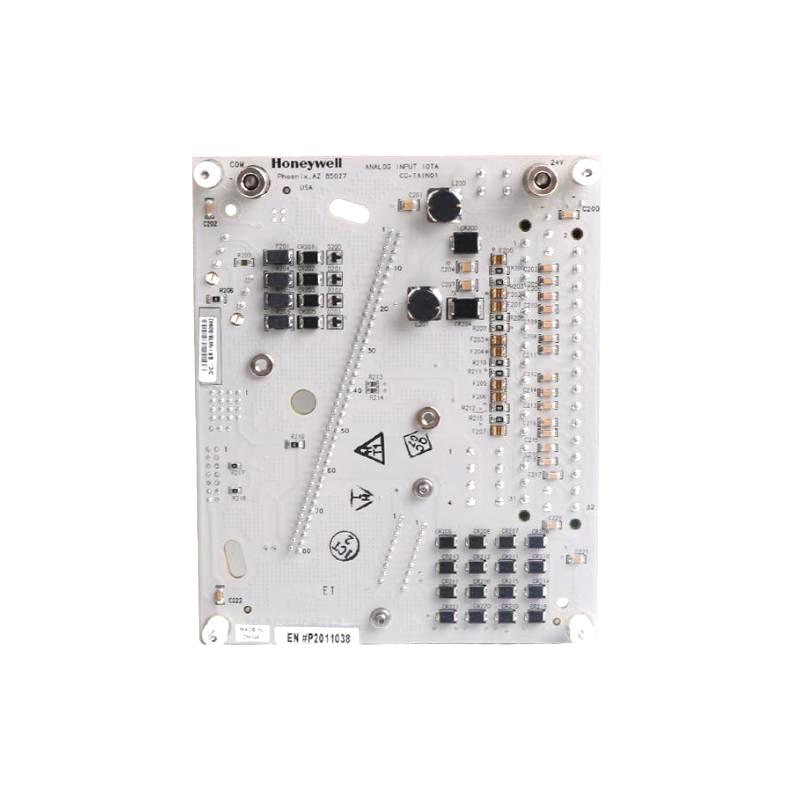

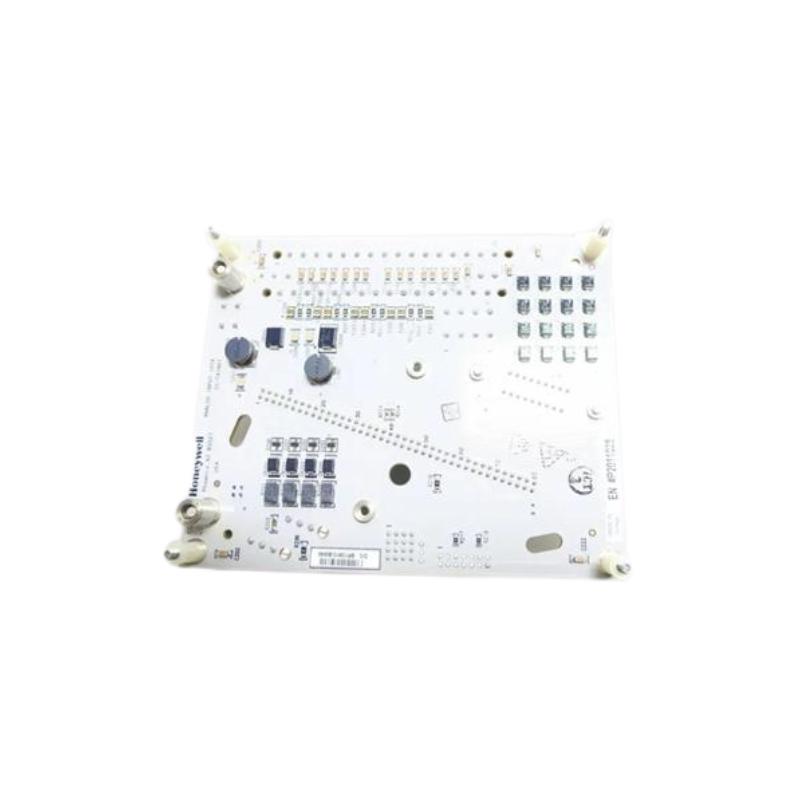

Honeywell CC-TAIN01 51306513-175 | 16-Channel Analog Input Module Original 30-Day Returns！

Brand：Honeywell DCS

Item No.：Honeywell CC-TAIN01 51306513-175

Product origin：USA

Dimensions:145 × 130 × 40 mm

Weight:0.35 kg

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

The model covers a wide range and the delivery is efficient. Please contact us for information!

Product Introduction：

Overview

The Honeywell CC-TAIN01 51306513-175 is a high-performance analog input module engineered for Experion PKS and C300 distributed control systems. It provides precise measurement and signal conditioning for various process variables, including temperature, flow, and pressure. With advanced diagnostics, reliable isolation, and stable operation, the CC-TAIN01 ensures accurate and secure data acquisition for industrial automation applications.

General Information

Part Number: 51306513-175

Manufacturer: Honeywell

Brand Origin: United States

Series: CC-TAIN01

Type: Analog Input Module

Channels: 16 isolated analog input channels

Signal Range: 4–20 mA, 0–10 V DC

Mounting Type: Installed on Series 8 I/O baseplate or C300 system chassis

Application: Process control, monitoring, and signal acquisition

Power Specifications

Supply Voltage: 24 V DC nominal

Power Consumption: 6.5 W typical

Input Impedance: 250 Ω for current input

Accuracy: ±0.1% of full scale

Protection: Surge, overvoltage, and reverse polarity protection

Communication & Interface

Interface Type: Redundant I/O communication link

Protocol: FTE / ControlNet

Sampling Rate: 10 ms typical

Diagnostics: Line break detection, out-of-range indication, module self-test

Isolation: Channel-to-channel and channel-to-system isolation

Environmental

Operating Temperature: 0°C to +55°C

Storage Temperature: −40°C to +70°C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20

Dimensions & Weight

Dimensions: 145 × 130 × 40 mm

Weight: Approx. 0.35 kg
