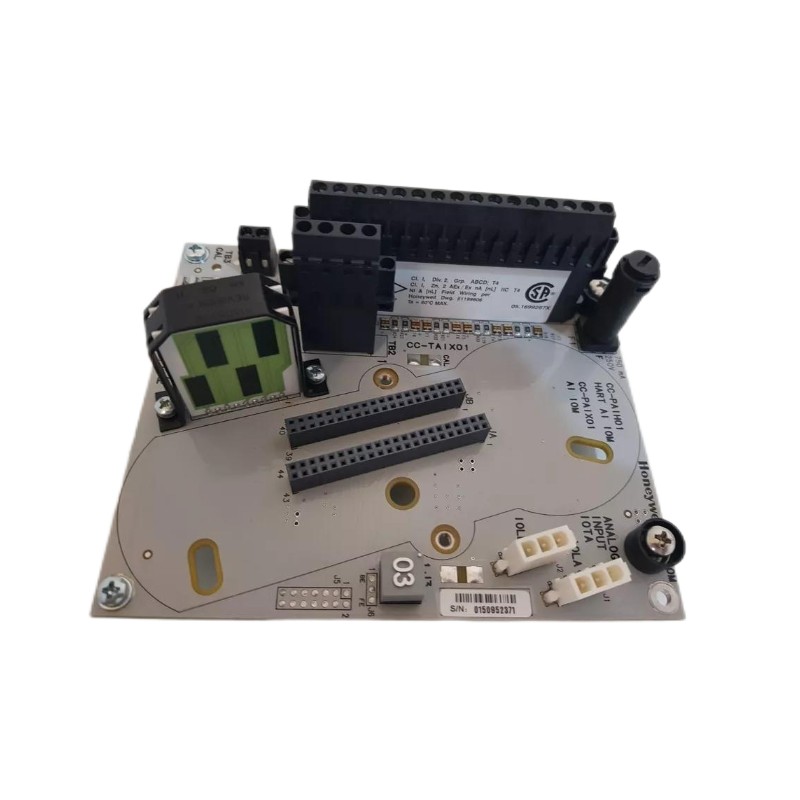

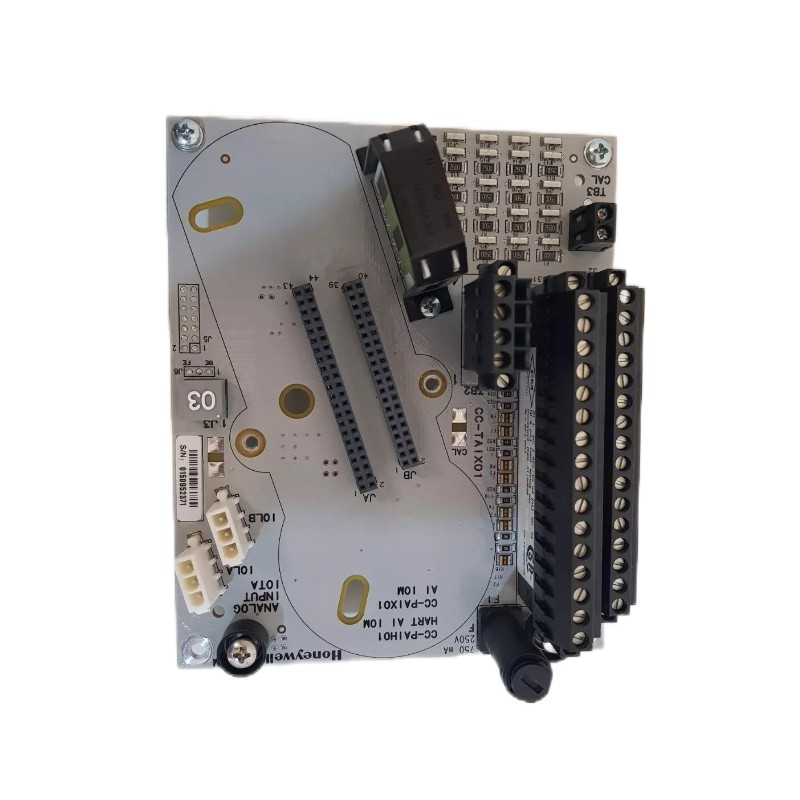

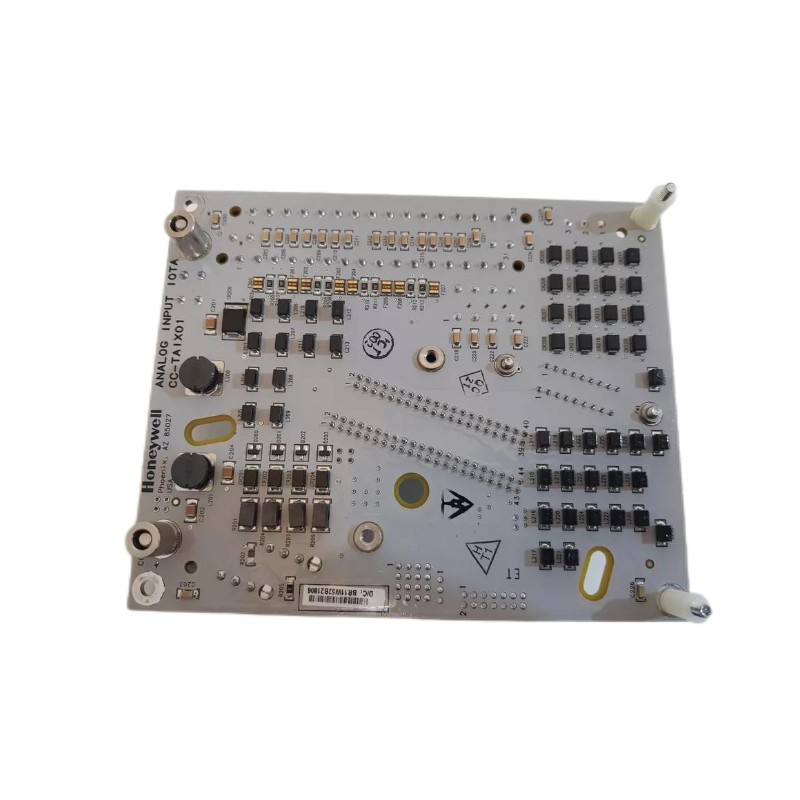

Honeywell CC-TAIX01 51308363-175 | 16-Channel Analog Input Module Rave reviews Original

Brand：Honeywell DCS

Item No.：Honeywell CC-TAIX01 51308363-175

Product origin：USA

Dimensions:145 × 130 × 40 mm

Weight:0.35 kg

Formal channel supply, complete information can be checked, and supporting service guarantee

Regular models are in stock for a long time, and the inventory is stable. Welcome to inquire about the price!

Product Introduction：

Overview

The Honeywell CC-TAIX01 51308363-175 is an advanced analog input module designed for integration with Honeywell's Experion® Process Knowledge System (PKS) and C300 controllers. This module offers high-precision measurement capabilities for a wide range of analog signals, including thermocouples (TC), resistance temperature detectors (RTD), voltage, and current inputs. It is engineered to deliver reliable performance in industrial automation and process control applications.

General Information

Part Number: 51308363-175

Manufacturer: Honeywell

Series: CC-TAIX01

Type: Analog Input Module

Channels: 16 input channels (12 single-ended, 4 differential)

Signal Types Supported:

Thermocouple (TC): -200°C to 1800°C

Resistance Temperature Detector (RTD): -200°C to 600°C

Voltage: 0 to 10 V

Current: 0 to 20 mA

Mounting: Installed on Series C I/O baseplate or C300 system chassis

Application: Industrial process monitoring and control

Power Specifications

Supply Voltage: 24 V DC

Current Consumption: Approximately 0.195 A at 24 V DC

Power Dissipation: Approximately 2.464 W

Input Impedance:

250 Ω for current inputs

10 MΩ for voltage inputs

Accuracy: ±0.25% of full scale

Resolution: 16-bit A/D conversion

Common Mode Rejection Ratio: 70 dB

Communication & Interface

Interface Type: Redundant I/O communication link for C300 controller

Supported Protocols: FTE / ControlNet

Sampling Rate: 50 ms per channel

Diagnostics: Channel fault detection, line break detection, module self-test

Isolation: 2500 V isolation between channels and system

Environmental Specifications

Operating Temperature: 0°C to +60°C

Storage Temperature: -40°C to +105°C

Humidity: 5% to 95% RH, non-condensing

Vibration: 5 g peak-to-peak, 10 to 2000 Hz

Shock: 50 g, 11 ms

Dimensions & Weight

Dimensions: Approximately 145 × 130 × 40 mm

Weight: Approximately 0.35 kg
