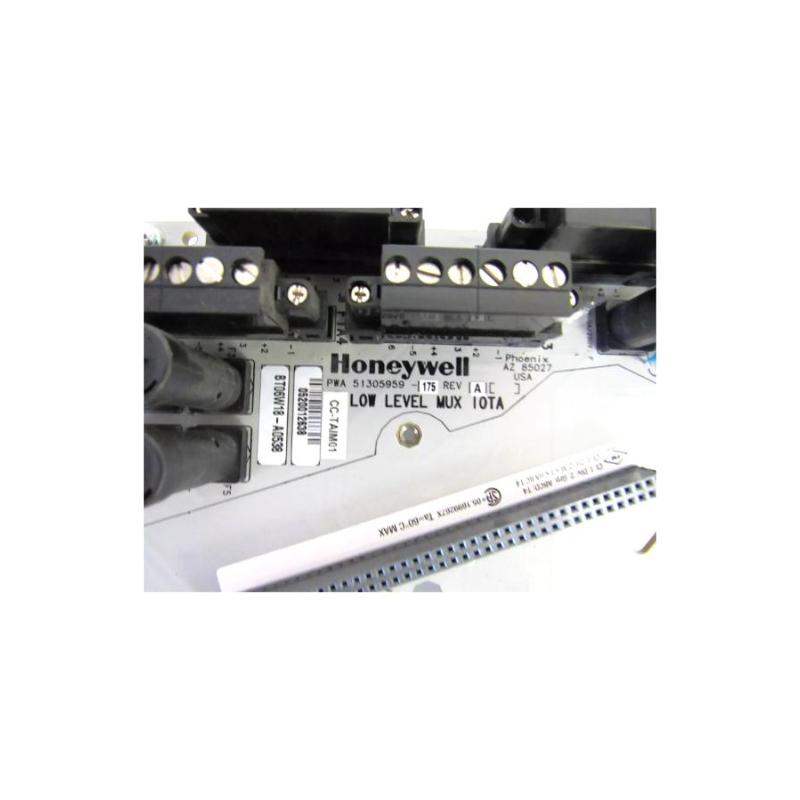

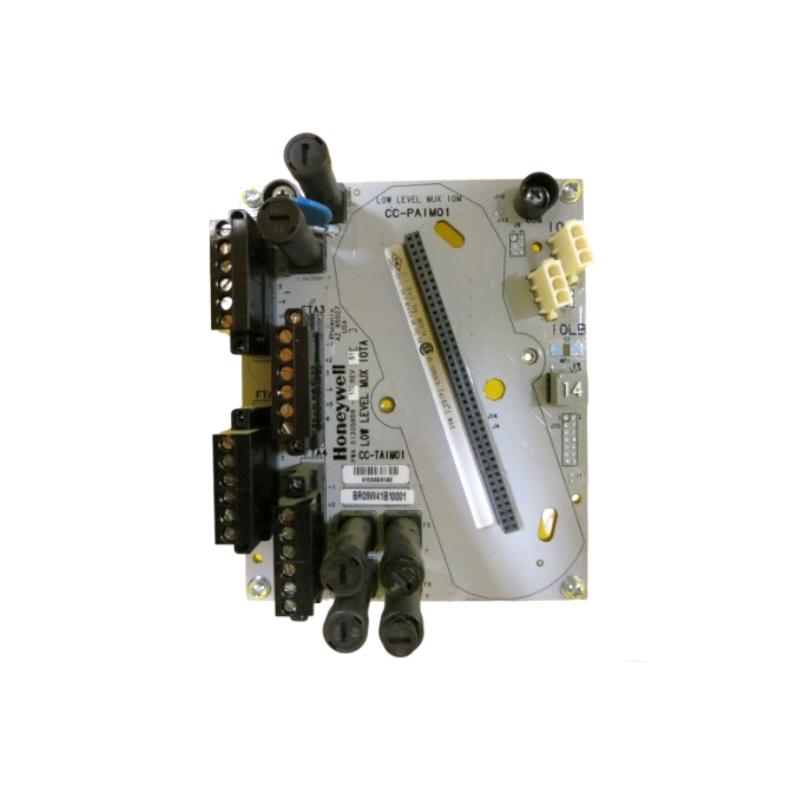

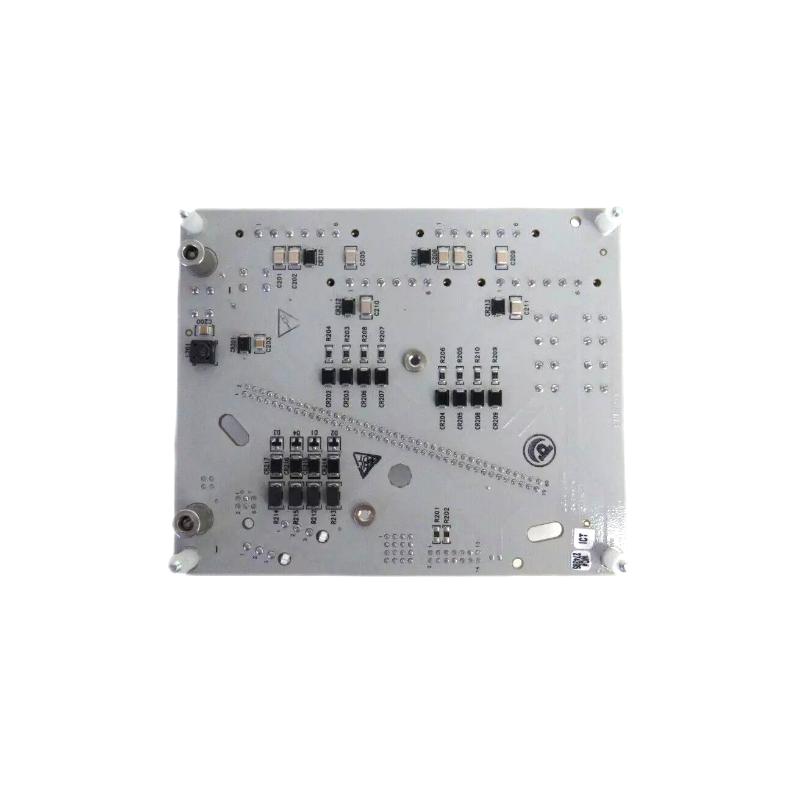

Honeywell CC-TAIM01 51305959-175 | 16-Channel Analog Input Module 12-Month Warranty 12-Month Warranty

Brand：Honeywell DCS

Item No.：Honeywell CC-TAIM01 51305959-175

Product origin：USA

Dimensions:145 × 130 × 40 mm

Weight:0.35 kg

The product source is clear and reliable, supports third-party testing, and has complete after-sales support

The inventory covers multiple brands and series, supports fast delivery, welcome to call us for negotiation!

Product Introduction：

Overview

The Honeywell CC-TAIM01 51305959-175 is an analog input module designed for use with Honeywell Experion PKS and C300 control systems. It provides precise and reliable measurement of process variables such as temperature, pressure, and flow from analog field devices. Built for high performance and long-term stability, this module ensures seamless integration within distributed control systems in industrial environments.

General Information

Part Number: 51305959-175

Manufacturer: Honeywell

Brand Origin: United States

Series: CC-TAIM01

Type: Analog Input Module

Channels: 16 differential analog inputs

Signal Range: 4–20 mA, 0–10 V DC

Mounting Type: Installed on C300 or Series 8 I/O baseplates

Typical Application: Industrial process monitoring and control

Power Specifications

Supply Voltage: 24 V DC nominal

Power Consumption: 6.5 W typical

Input Impedance: 250 Ω (current input)

Measurement Accuracy: ±0.1% of span

Protection: Overvoltage, reverse polarity, and surge protection

Communication & Interface

Interface Type: Redundant I/O link

Communication Protocols: FTE / ControlNet

Sampling Rate: 10 ms typical

Diagnostics: Channel fault detection, signal range monitoring, module health status

Isolation: Channel-to-channel and system isolation for enhanced reliability

Environmental

Operating Temperature: 0°C to +55°C

Storage Temperature: −40°C to +70°C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20, suitable for control cabinet installation

Dimensions & Weight

Dimensions: 145 × 130 × 40 mm

Weight: Approx. 0.35 kg

Factory-new items ready for shipment, supported by customer service.

This product is in stock, with fast response, flexible price range, and supports communication based on quantity.
