Bently Nevada 330106-05-30-10-02-05 Reverse Mount Proximity Probe Hot Items Trusted supplier

Brand：Bently Nevada PLC

Item No.：Bently Nevada 330106-05-30-10-02-05

Product origin：USA

Dimensions:Total Length: 1.0 meter

Weight:0.323 kg

Compliant import, support for cooperation testing, and fast response to after-sales service

The model covers a wide range and the delivery is efficient. Welcome to contact us for information!

Product Introduction：

Overview

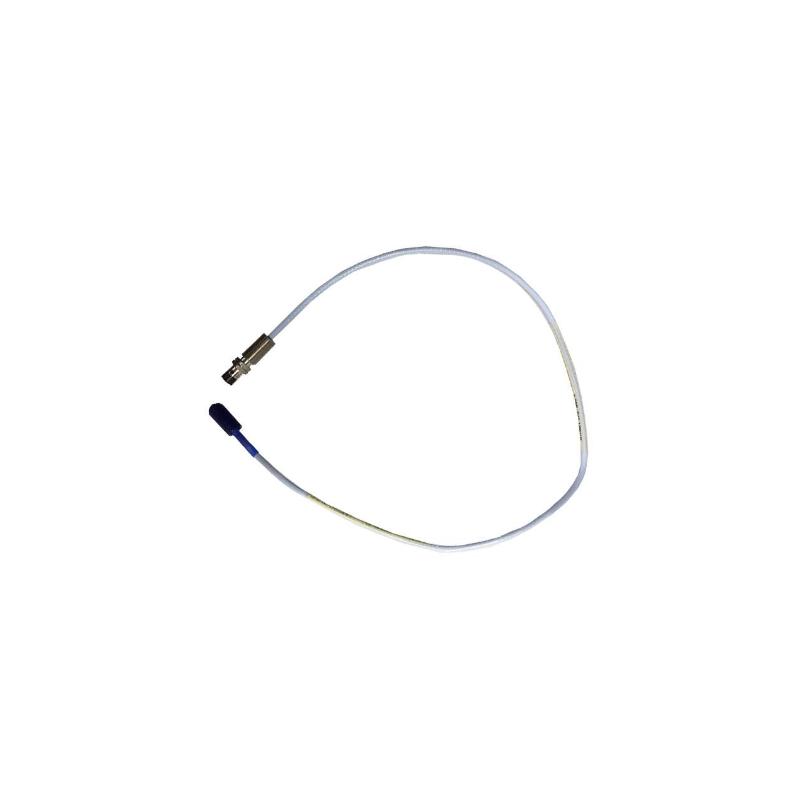

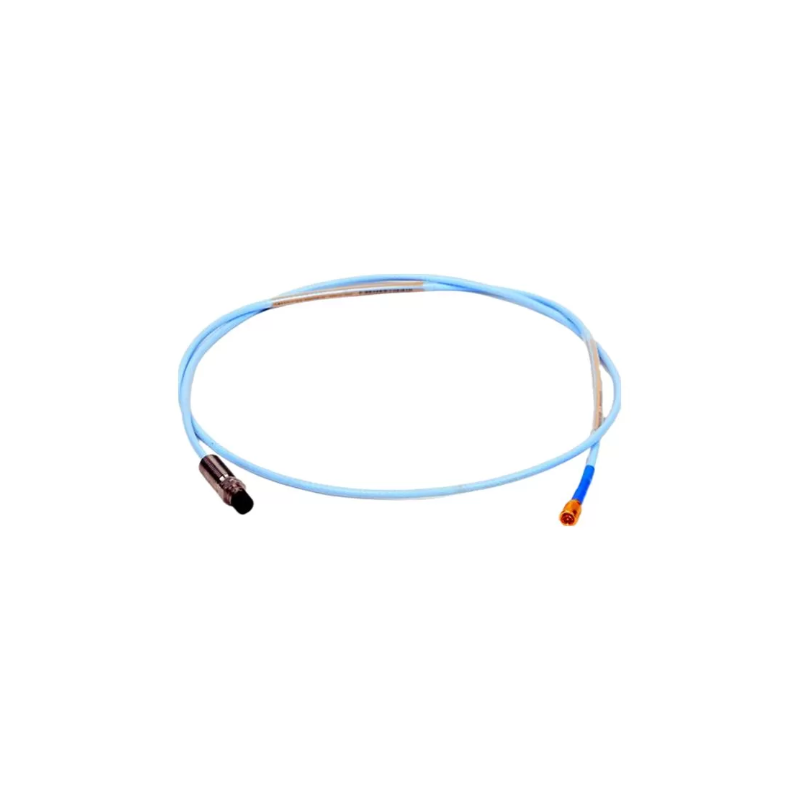

The Bently Nevada 330106-05-30-10-02-05 is an 8 mm reverse mount proximity probe designed for use in the 3300 XL Proximity Transducer System. It measures the displacement between the probe tip and a conductive surface, providing critical data for machinery protection and condition monitoring.

General Information

Manufacturer: Bently Nevada (a Baker Hughes business)

Model Number: 330106-05-30-10-02-05

Type: Reverse Mount Proximity Probe

Thread Type: M10 x 1

Connector Type: Miniature ClickLoc coaxial connector

Total Length: 1.0 meter

Agency Approvals: CSA, ATEX, IECEx

Country of Origin: United States

Electrical Specifications

Output Voltage: Proportional to the distance between the probe tip and the observed conductive surface

Frequency Response: Suitable for high-frequency applications

Impedance: Matched to Bently Nevada Proximitor Sensors

Linearity: High linearity across the sensing range

Temperature Stability: Designed to maintain accuracy across a wide temperature range

Environmental Specifications

Protection Rating: IP67 when properly installed

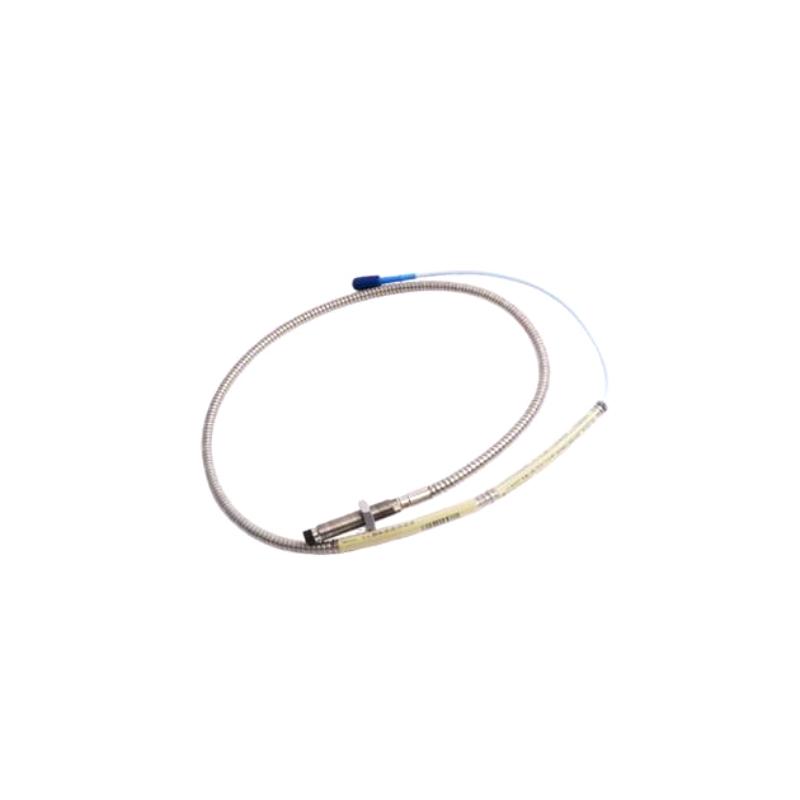

Armor: Optional; armored versions available for additional protection

Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F)

Storage Temperature: -51 °C to +177 °C (-60 °F to +351 °F)

Humidity: 5–95% RH, non-condensing

Dimensions & Weight

Total Length: 1.0 meter

Weight: 0.323 kg

Original new goods in stock, quotes available at any time.

The product is sourced from overseas, the logistics is efficient, and testing and price adjustment for large quantities are supported.
