Bently Nevada 330105-02-12-10-02-05 Reverse Mount Proximity Probe Rave reviews New In Stock

Brand：Bently Nevada PLC

Item No.：Bently Nevada 330105-02-12-10-02-05

Product origin：USA

Dimensions:Total Length: 1.0 meter

Weight:0.323 kg

The import process is standardized, testing is supported, and after-sales service is guaranteed

There are abundant models in stock, which support quick docking of purchasing needs. Please inquire for details!

Product Introduction：

Overview

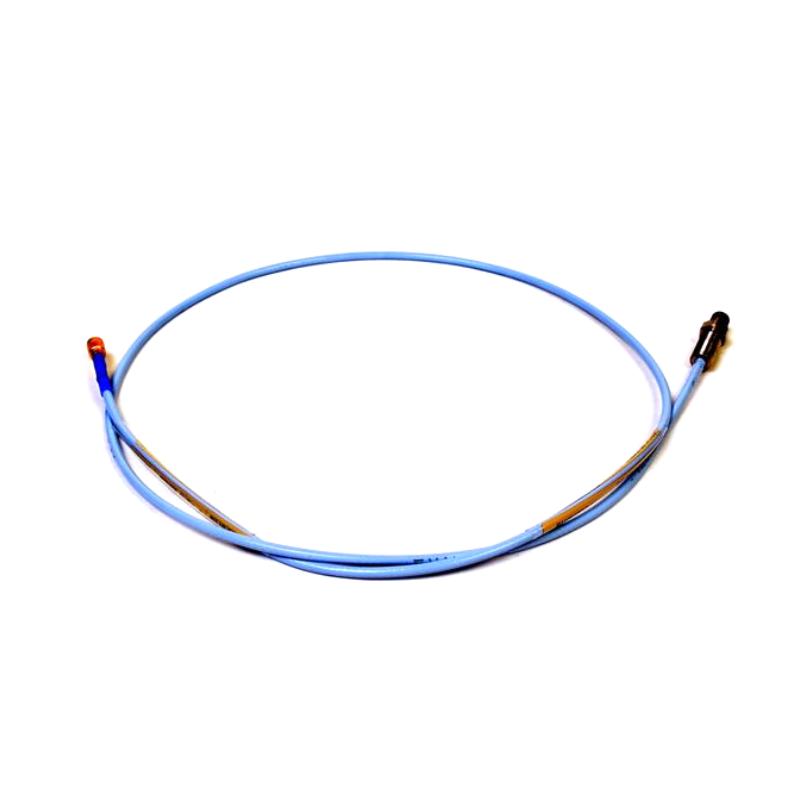

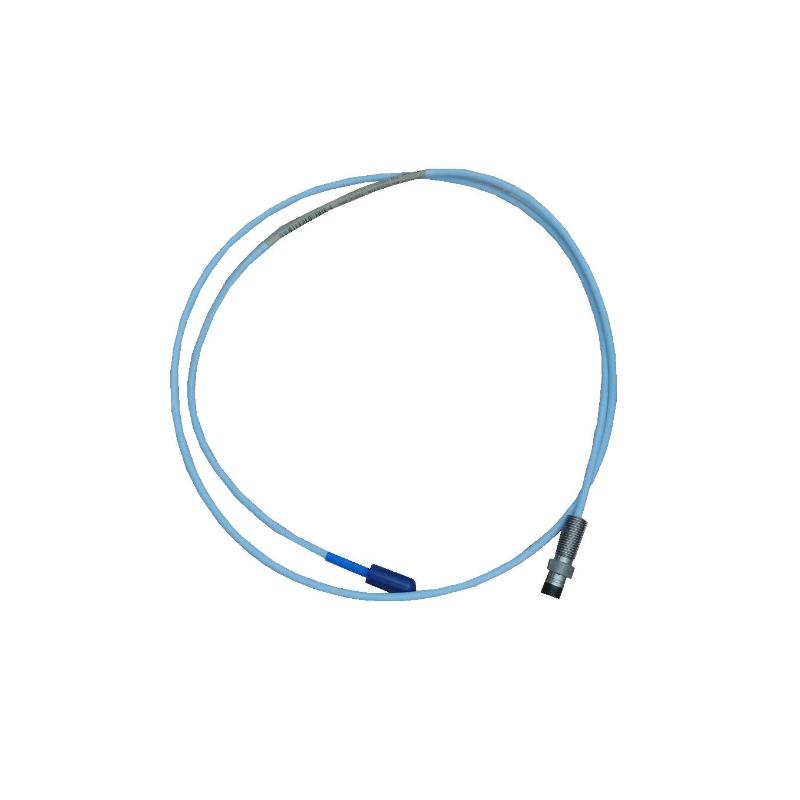

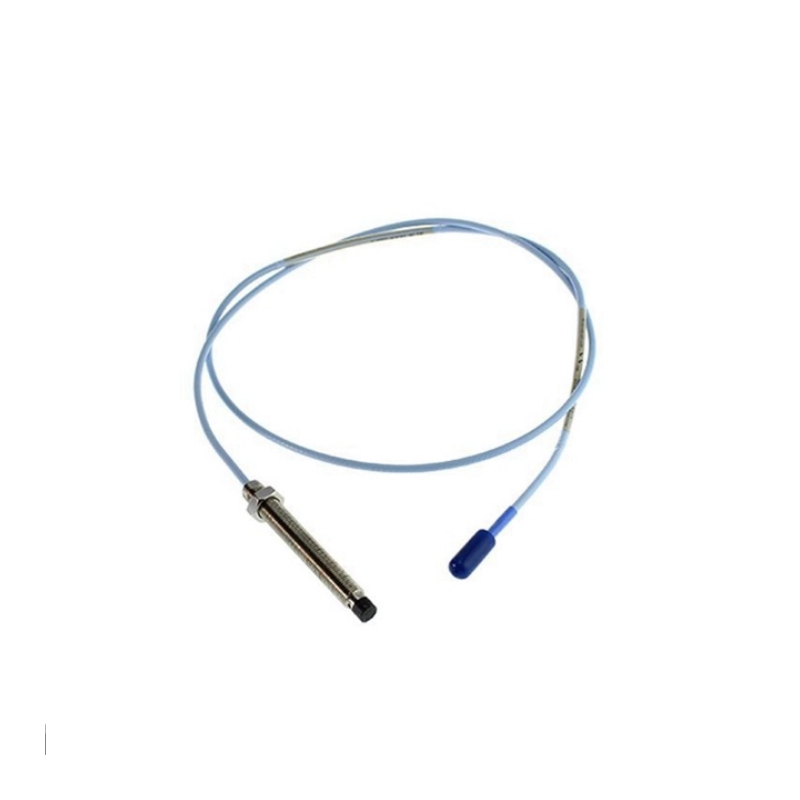

The Bently Nevada 330105-02-12-10-02-05 is an 8 mm reverse mount proximity probe designed for use in the 3300 XL Proximity Transducer System. It measures the displacement between the probe tip and a conductive surface, providing critical data for machinery protection and condition monitoring.

General Information

Manufacturer: Bently Nevada (a Baker Hughes business)

Model Number: 330105-02-12-10-02-05

Type: Reverse Mount Proximity Probe

Thread Type: 3/8 - 24 UNF

Connector Type: Miniature ClickLoc coaxial connector

Total Length: 1.0 meter

Agency Approvals: CSA, ATEX, IECEx

Country of Origin: United States

Electrical Specifications

Output Voltage: Proportional to the distance between the probe tip and the observed conductive surface

Frequency Response: Suitable for high-frequency applications

Impedance: Matched to Bently Nevada Proximitor Sensors

Linearity: High linearity across the sensing range

Temperature Stability: Designed to maintain accuracy across a wide temperature range

Environmental Specifications

Protection Rating: IP67 when properly installed

Armor: Optional; armored versions available for additional protection

Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F)

Storage Temperature: -51 °C to +177 °C (-60 °F to +351 °F)

Humidity: 5–95% RH, non-condensing

Dimensions & Weight

Total Length: 1.0 meter

Weight: 0.323 kg

Brand-new and unused inventory, stable supply, and 24-hour service.

This product is an imported conventional model, with timely delivery. For large purchases, we welcome targeted quotation consultation.
