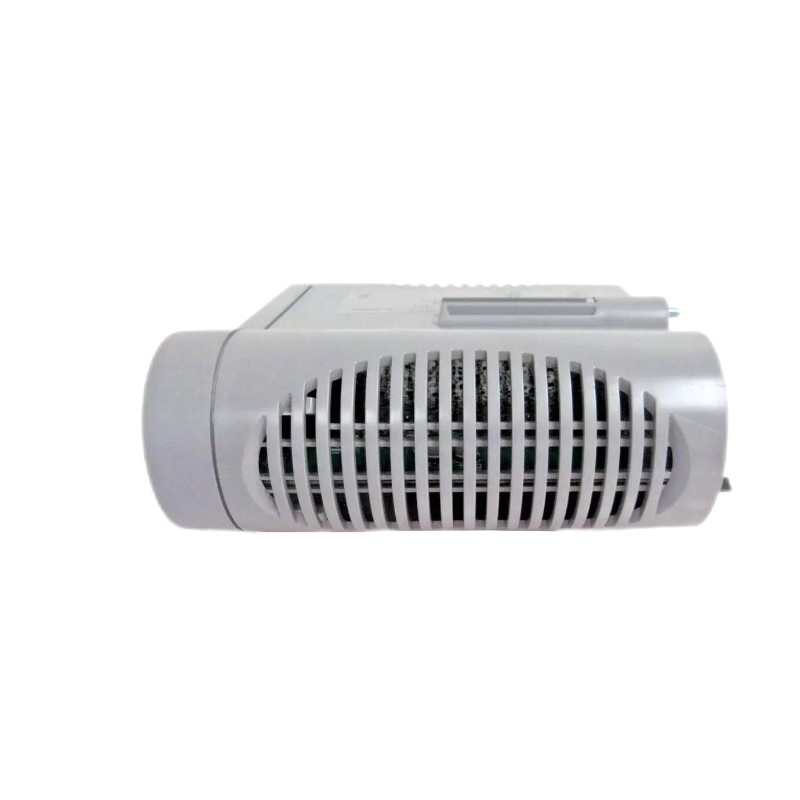

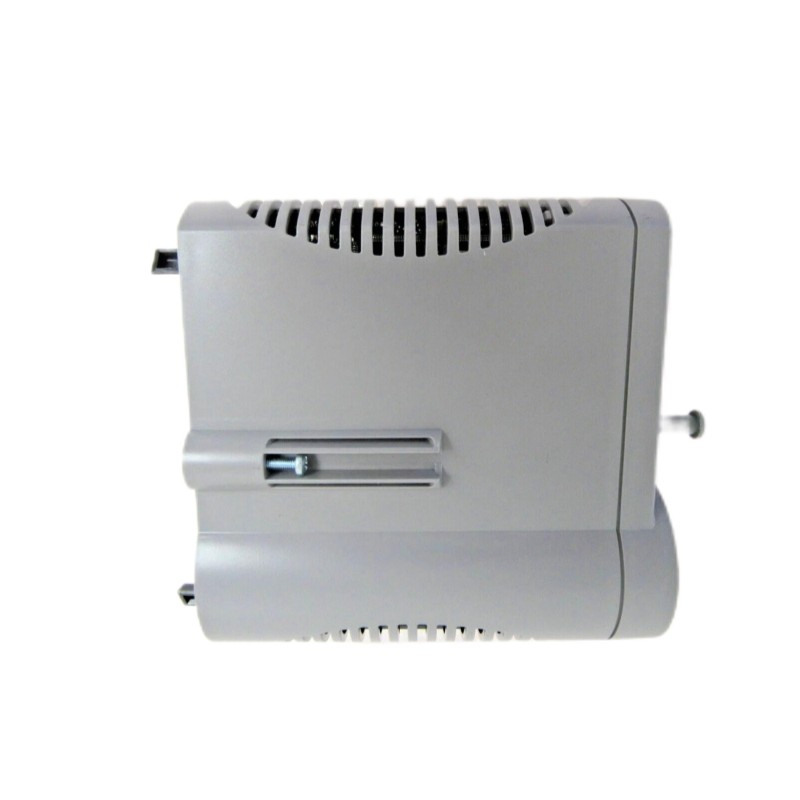

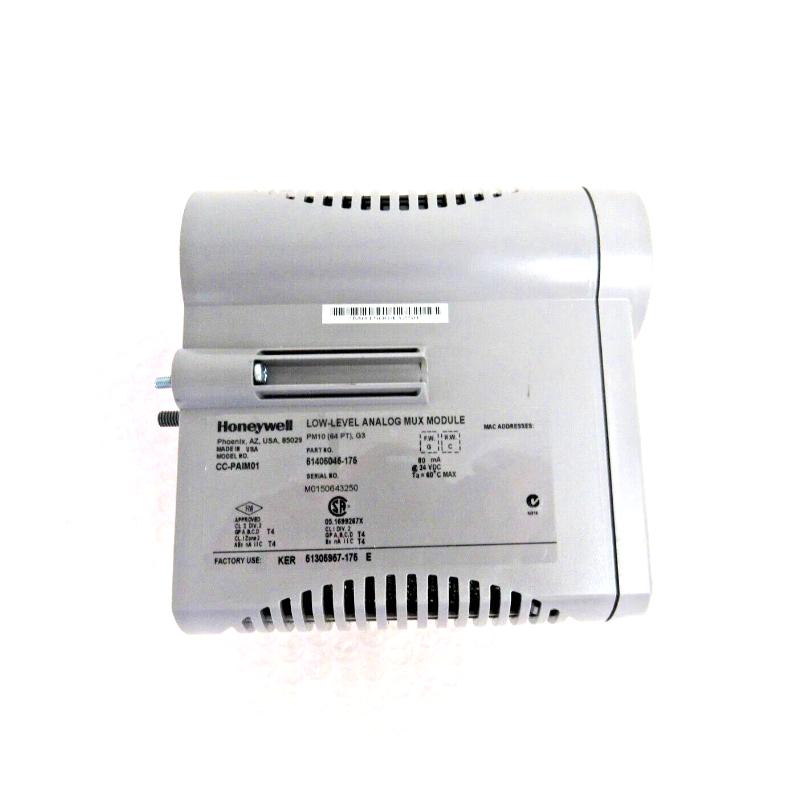

Honeywell CC-PAIM01 51405045-175 High-Level Analog Input Module Recommended products Trusted supplier

Brand：Honeywell DCS

Item No.：Honeywell CC-PAIM01 51405045-175

Product origin：USA

Dimensions:102 × 80 × 128 mm

Weight:0.12 kg

Standardized import process, support for testing, and guaranteed after-sales

Complete models, inventory is updated in real time, welcome to get the latest list!

Product Introduction：

Overview
The Honeywell CC-PAIM01 (51405045-175) is a high-level analog input module for Honeywell Experion PKS and other industrial control systems. It provides precise and isolated acquisition of analog signals from field devices, supporting HART communication for integration with smart instruments.

General Information

Manufacturer: Honeywell

Origin: United States

Model Number: CC-PAIM01

Part Number: 51405045-175

Type: High-Level Analog Input Module

Protocol: HART

Applications: Process automation, safety instrumented systems (SIS), industrial monitoring

Electrical Specifications

Input Channels: 16

Input Signal Types: 4–20 mA, 0–20 mA, ±10 V DC

Resolution: 16-bit

Accuracy: ±0.1% of full scale

Input Impedance: >10 MΩ (voltage inputs)

Common Mode Voltage: −6 to +5 V peak

Common Mode Rejection Ratio: 70 dB

Scan Rate: 50 ms per channel

Power Consumption: 1.2 W per channel

Isolation: 1000 V RMS (channel-to-channel)

Operating Temperature Range: −40 °C to +70 °C

Environmental Specifications

Humidity: 5–95% RH, non-condensing

Protection Rating: IP20 (installed in standard rack/cabinet)

Installation Environment: Industrial control cabinet, DIN-rail or rack mount

Dimensions & Weight

Dimensions (L × W × H): 102 × 80 × 128 mm

Weight: Approx. 0.12 kg
