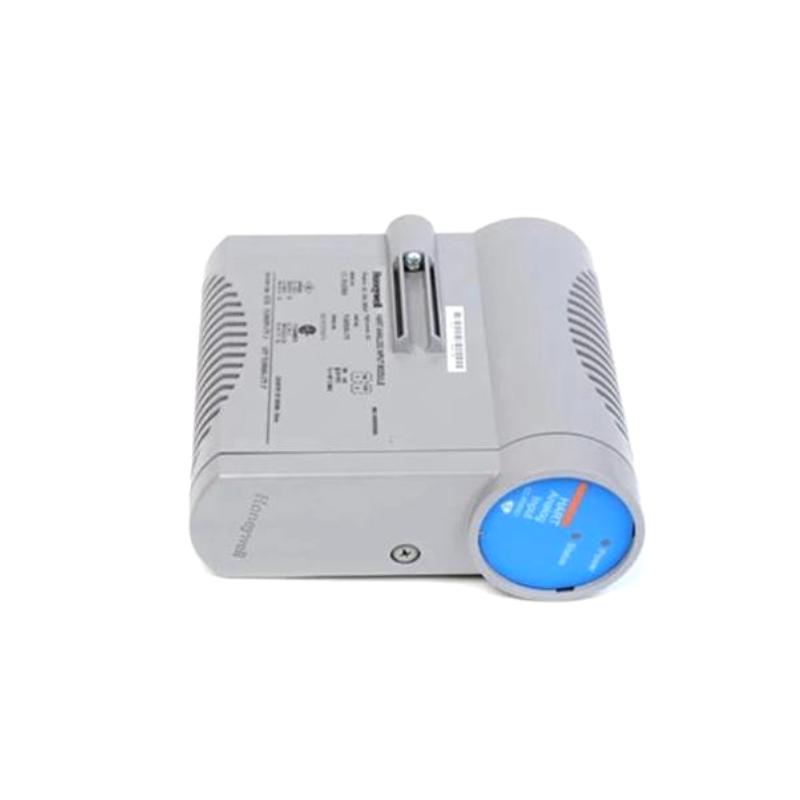

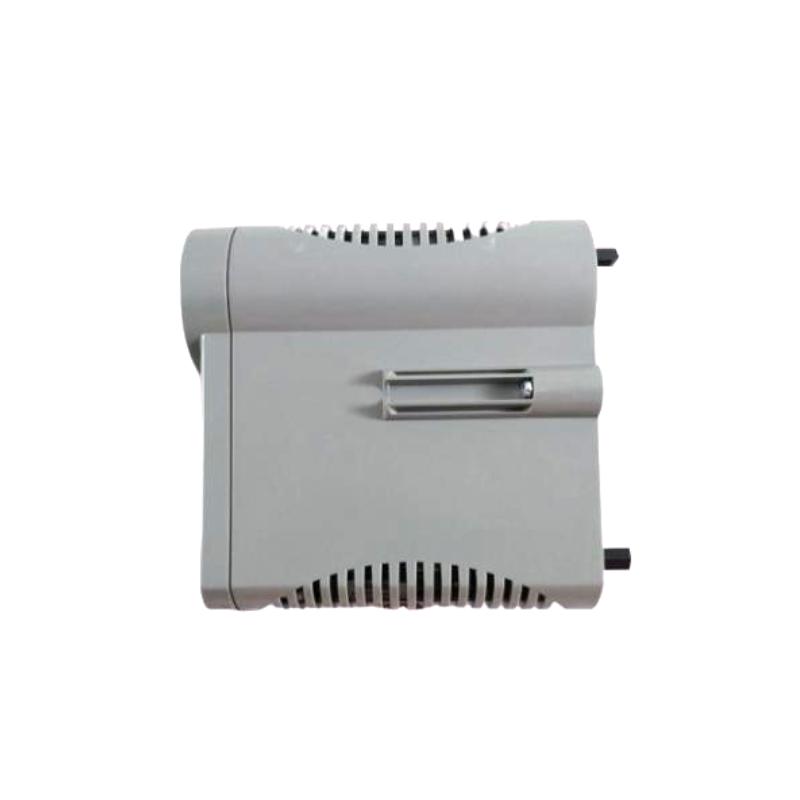

Honeywell CC-PAIH51 51410069-276 High-Level Analog Input Module Trusted supplier 12-Month Warranty

Brand：Honeywell DCS

Item No.：Honeywell CC-PAIH51 51410069-276

Product origin：USA

Dimensions:102 × 80 × 128 mm

Weight:0.12 kg

The product source is clear and reliable, supports third-party testing, and has complete after-sales support

The model is complete, and the inventory is updated in real time. Welcome to get the latest list!

Product Introduction：

Overview
The Honeywell CC-PAIH51 (51410069-276) is a high-level analog input module for Honeywell Experion PKS and other control systems. It delivers precise and isolated analog signal acquisition while supporting HART communication for integration with smart field devices.

General Information

Manufacturer: Honeywell

Origin: United States

Model Number: CC-PAIH51

Part Number: 51410069-276

Type: High-Level Analog Input Module

Protocol: HART

Applications: Process automation, safety instrumented systems (SIS), industrial monitoring

Electrical Specifications

Input Channels: 16

Input Signal Types: 4–20 mA, 0–20 mA, ±10 V DC

Resolution: 16-bit

Accuracy: ±0.1% of full scale

Input Impedance: >10 MΩ (voltage inputs)

Common Mode Voltage: −6 to +5 V peak

Common Mode Rejection Ratio: 70 dB

Scan Rate: 50 ms per channel

Power Consumption: 1.2 W per channel

Isolation: 1000 V RMS (channel-to-channel)

Operating Temperature Range: −40 °C to +70 °C

Environmental Specifications

Humidity: 5–95% RH, non-condensing

Protection Rating: IP20 (installed in standard rack/cabinet)

Installation Environment: Industrial control cabinet, DIN-rail or rack mount

Dimensions & Weight

Dimensions (L × W × H): 102 × 80 × 128 mm

Weight: Approx. 0.12 kg

Brand-new authentic stock in full availability, backed by live customer service.

This product is in stock, with fast delivery, and project-based procurement supports special price assistance.
