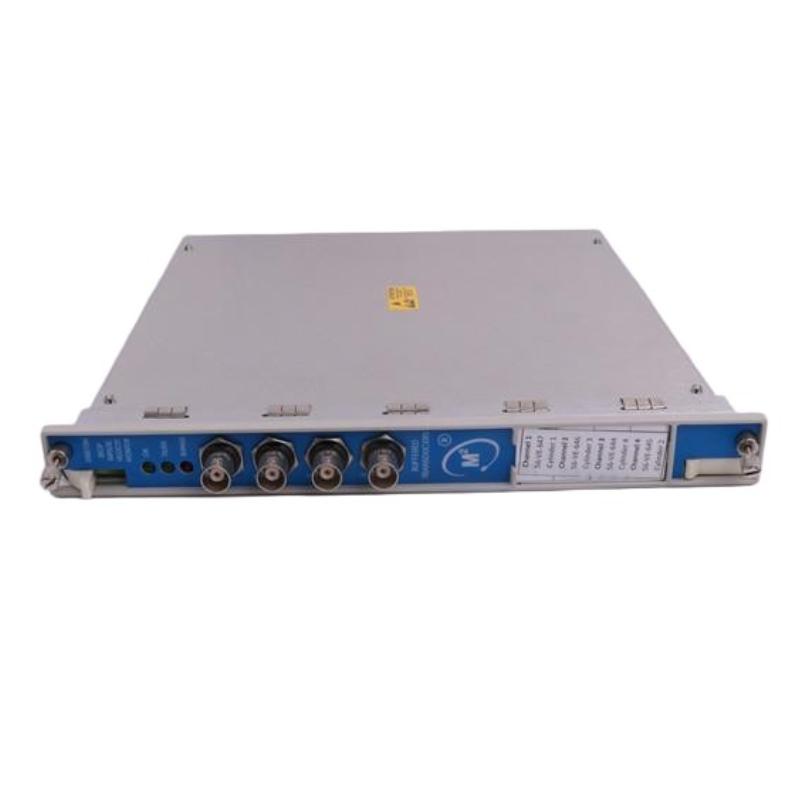

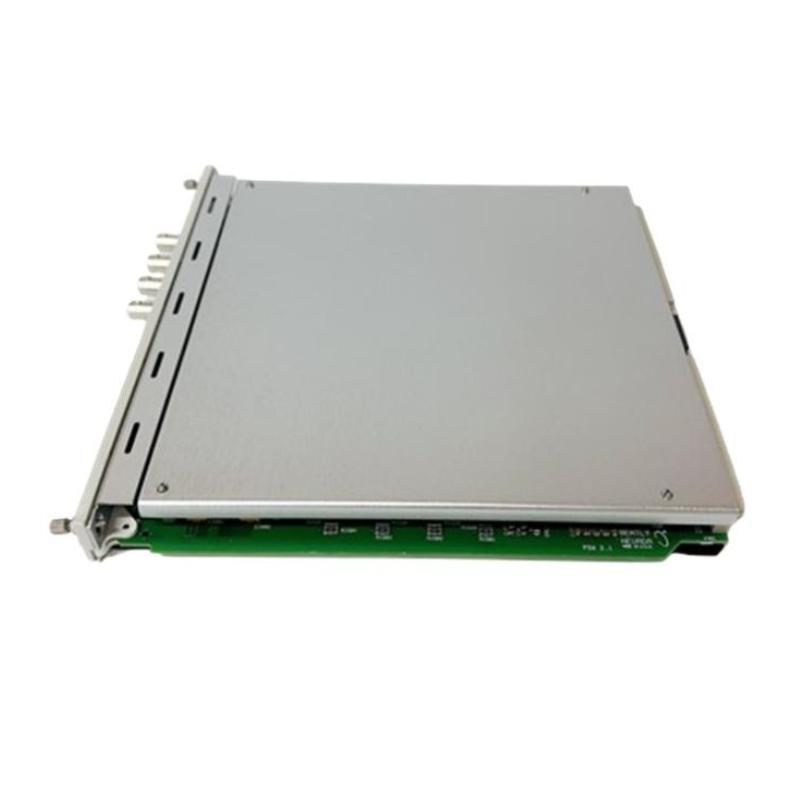

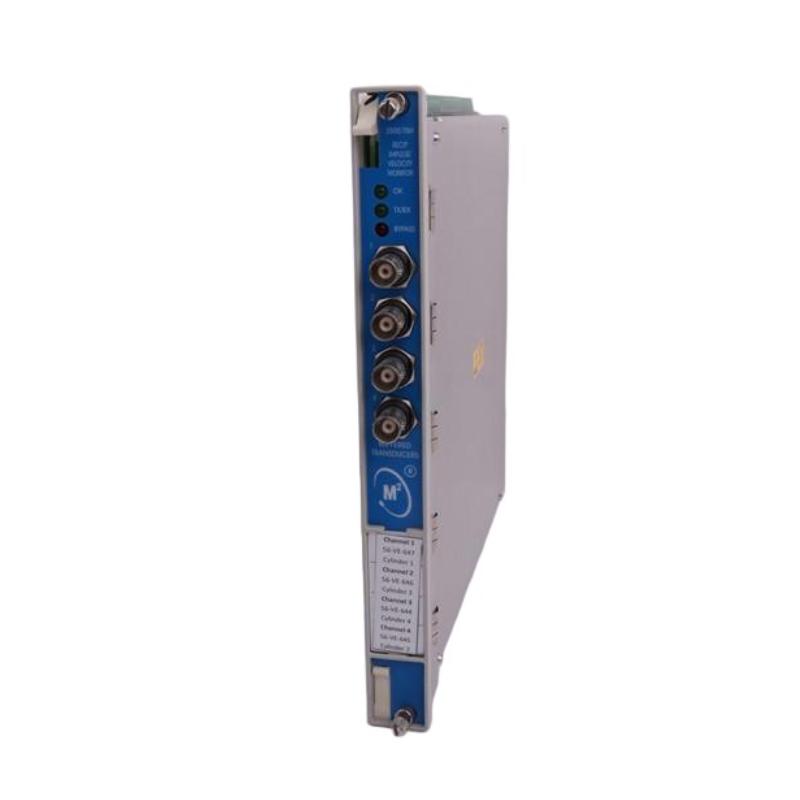

Bently Nevada 3500/70M 176449-09 | Velocity Monitor Module 30-Day Returns Original

Brand：Bently Nevada PLC

Item No.：Bently Nevada 3500/70M 176449-09

Product origin：USA

Dimensions:241.3 × 24.4 × 241.8 mm

Weight:0.91 kg

Original source, data supports testing content, efficient after-sales processing

The model covers a wide range, and the delivery is efficient. Welcome to contact us for information!

Product Introduction：

Overview

The 3500/70M 176449-09 is a vibration monitoring module for reciprocating compressors and similar machinery. It monitors velocity and impulse signals to detect abnormal conditions and trigger alarms. The module supports up to 4 channels of sensor input.

General Information

Part Number: 176449-09

Manufacturer: Bently Nevada

Brand / Country of Origin: Bently Nevada / USA

Series: 3500/70M

Type: Recip Impulse/Velocity Monitor Module

Mounting: Rack-mounted in 3500/70M system chassis

Function: Processes sensor data and triggers alerts when thresholds are exceeded

Power Specifications

Supply Voltage: 24 V DC via backplane

Power Consumption: Approx. 7.7 W

Protection: Integrated current fold-back and overload protection

Indicators: LEDs for OK, communication (TX/RX), and bypass status

Communication & Interface

Interface Type: Backplane connection compatible with 3500/70M chassis

Input Channels: 1–4 velocity or acceleration sensor inputs (proximitor or seismic transducers)

Diagnostics: LED indicators and system software display module status and faults

Compatibility: Fully compatible with 3500/70M rack modules

Environmental

Operating Temperature: −20 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20

Cooling: Passive

Dimensions & Weight

Dimensions (L × W × H): 241.3 × 24.4 × 241.8 mm

Weight: 0.91 kg

100% original and unused products, with verified stock and instant customer communication.

The inventory of this product is stable, fast delivery is supported, and negotiated pricing is supported for batches.
