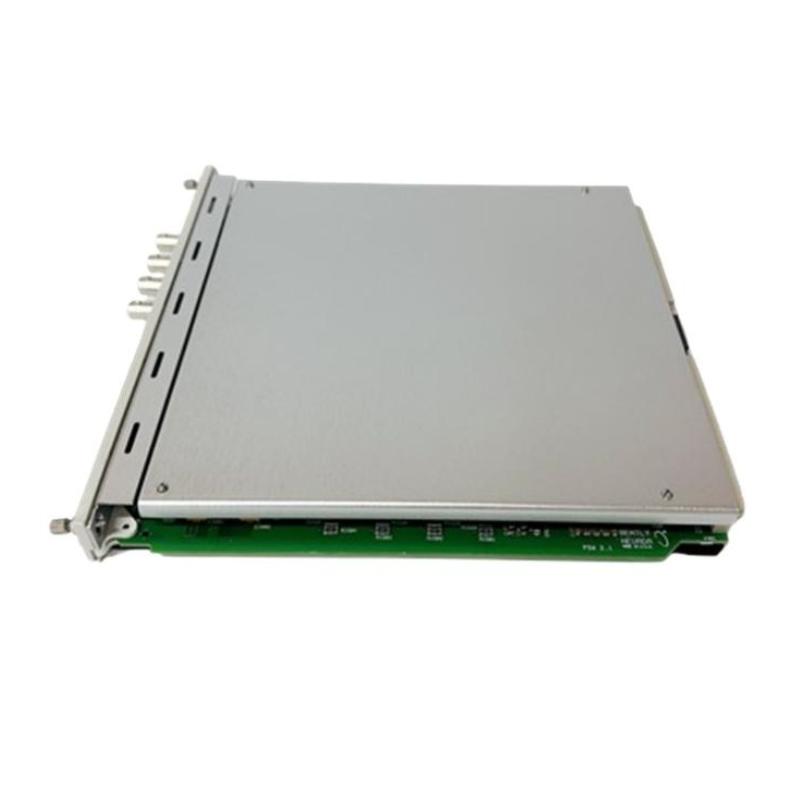

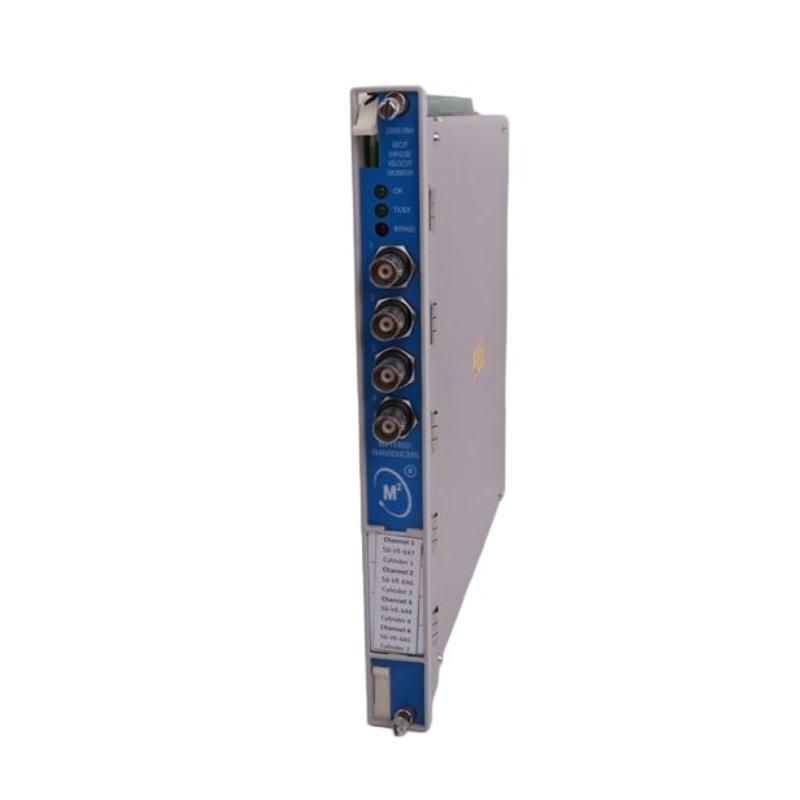

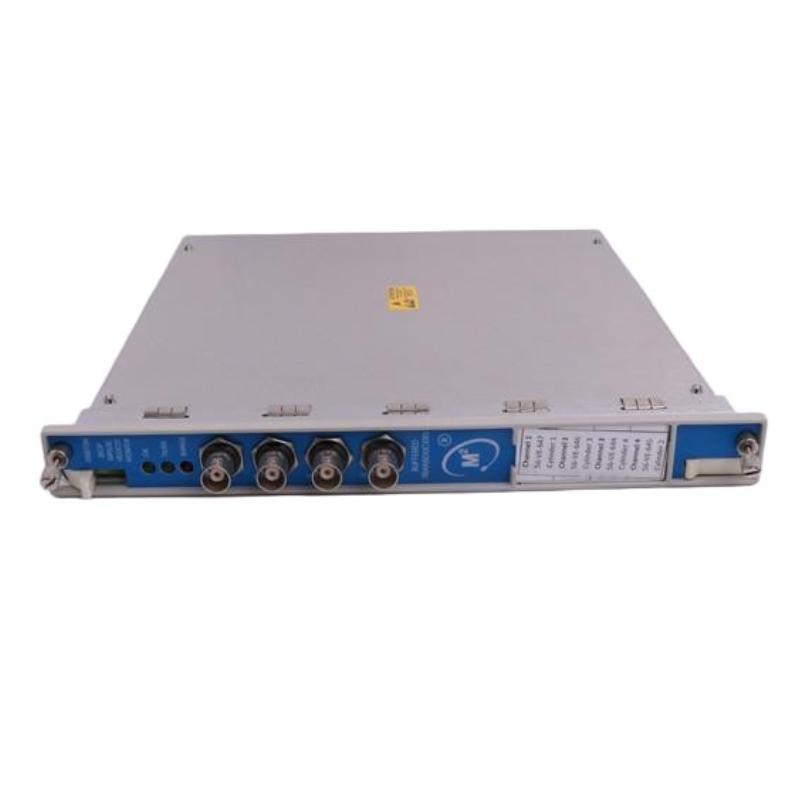

Bently Nevada 3500/70 176449-09 | Velocity Monitor Module Rave reviews Original

Brand：Bently Nevada PLC

Item No.：Bently Nevada 3500/70 176449-09

Product origin：USA

Dimensions:241.3 × 24.4 × 241.8 mm

Weight:0.91 kg

Formal channels, complete test instructions, responsive service

Sufficient inventory of tens of thousands of models, fast delivery from stock, welcome to consult!

Product Introduction：

Overview

The 3500/70 176449-09 is a vibration monitoring module for reciprocating compressors and similar machinery. It processes signals from sensors to detect velocity and impulse changes, triggering alarms when thresholds are exceeded.

General Information

Part Number: 176449-09

Manufacturer: Bently Nevada

Brand / Country of Origin: Bently Nevada / USA

Series: 3500/70

Type: Recip Impulse/Velocity Monitor Module

Mounting: Rack-mounted within 3500/70 system chassis

Function: Monitors multiple channels to protect machinery from abnormal vibration

Power Specifications

Supply Voltage: 24 V DC via backplane

Power Consumption: Approx. 7.7 W

Protection: Internal current fold-back and overload protection

Indicators: LEDs for OK, TX/RX, and bypass status

Communication & Interface

Interface Type: 3500/70 backplane connection

Input Channels: Accepts 1 to 4 proximity probe or seismic transducer signals for velocity and acceleration monitoring

Diagnostics: Provides channel values, alert, and danger setpoints

Compatibility: Works with 3500/70 rack and I/O modules

Environmental

Operating Temperature: −20 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20

Cooling: Natural convection

Dimensions & Weight

Dimensions (L × W × H): 241.3 × 24.4 × 241.8 mm

Weight: 0.91 kg

We supply authentic new components, available in stock, with fast responses from our service team.

The product supply cycle is short, the price structure is transparent and reasonable, and there is a dedicated quotation service for large quantities.
