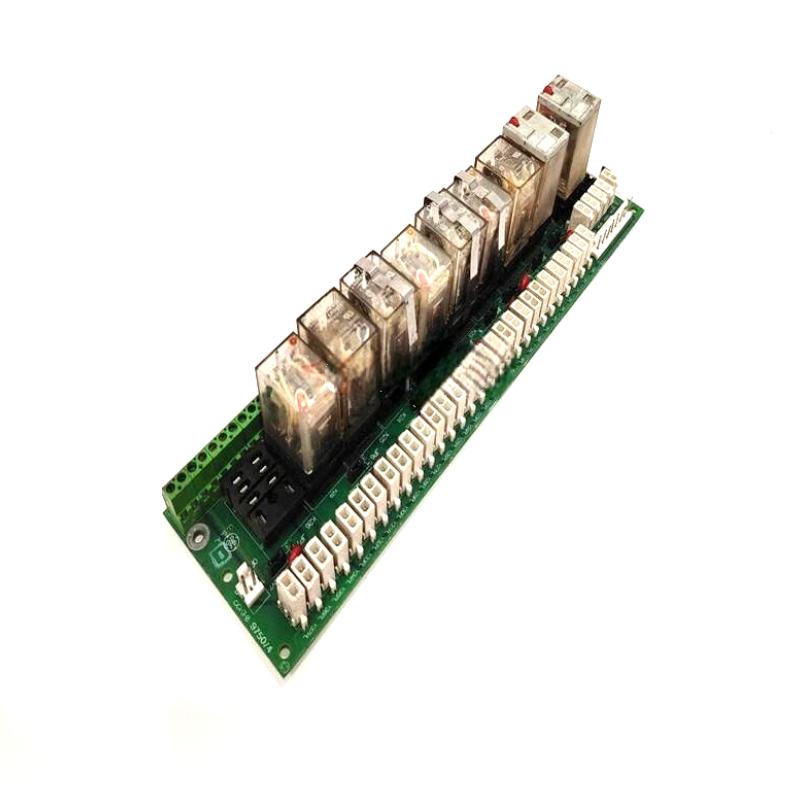

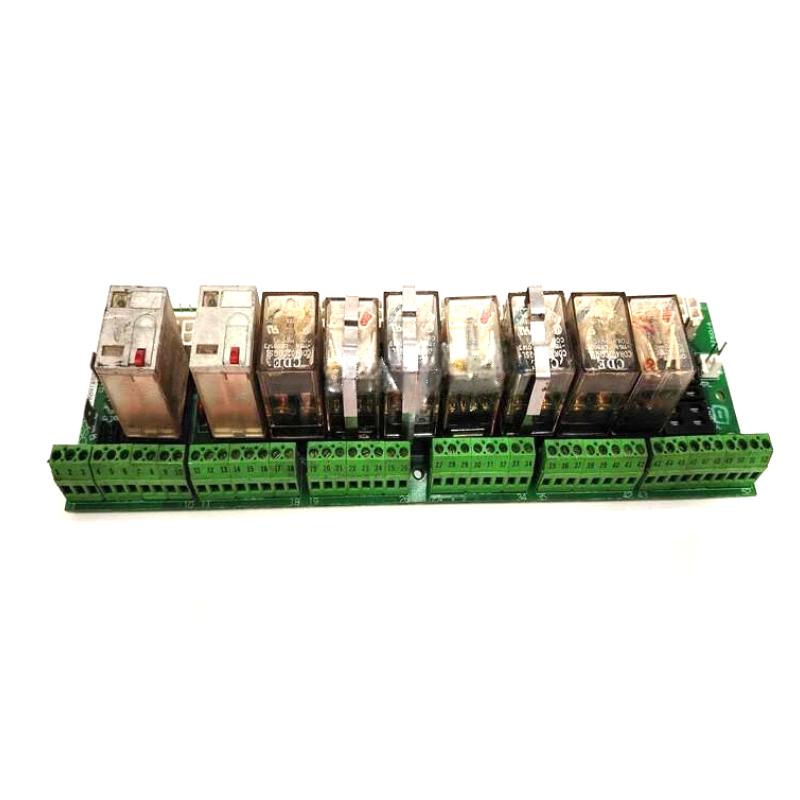

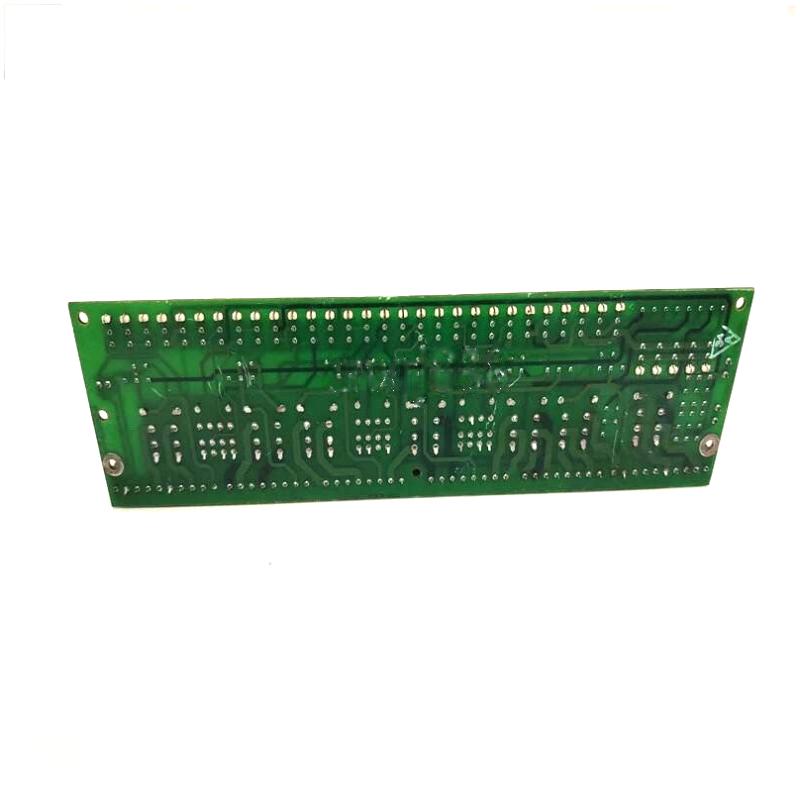

GE DS200RTBAG3AHC | Relay Terminal Board Recommended products 12-Month Warranty

Brand：GE Fanuc PLC

Item No.：GE DS200RTBAG3AHC

Product origin：USA

Dimensions:330 × 200 × 50 mm

Weight:0.7 kg

Compliant imports, support for cooperative testing, and fast response to after-sales service

Tens of thousands of models in stock are sufficient, and stocks are shipped quickly. Welcome to consult!

Product Introduction：

Overview

The GE DS200RTBAG3AHC is a relay terminal board used within the GE Mark V control system. It provides multiple relay outputs, terminal wiring points, and isolation components for interfacing field devices such as solenoids, contactors, and status circuits.

General Information

Part Number: DS200RTBAG3AHC
Manufacturer: GE (General Electric)
Series: Mark V
Type: Relay Output Terminal Board
Mounting: Panel or chassis-mounted terminal board
Function: Provides relay contacts and field wiring termination points

Power Specifications

Power Source: Supplied through system backplane or auxiliary wiring
Relay Type: Dry-contact relay outputs
Protection: Built-in surge suppression and signal isolation
Indicators: On-board relay status LEDs (varies by revision)

Communication & Interface

Interface Method: Ribbon cable or backplane connection to main controller
Role: Provides relay outputs to external field equipment
Relay Outputs: Multiple Form-C (NO/NC) contacts
Diagnostics: Relay test points and LED indication (if equipped)

Environmental

Operating Temperature: Standard turbine control environment
Humidity: Up to 95% RH, non-condensing
Installation: Enclosed cabinet or protected industrial panel

Dimensions & Weight

Dimensions (L × W × H): 330 × 200 × 50 mm
Weight: ~ 0.7 kg
