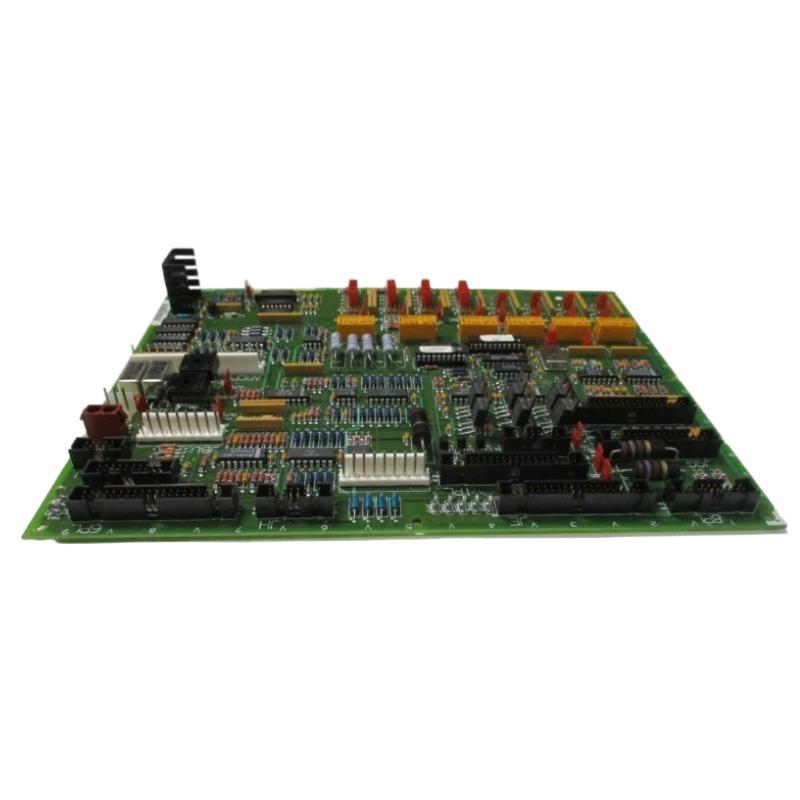

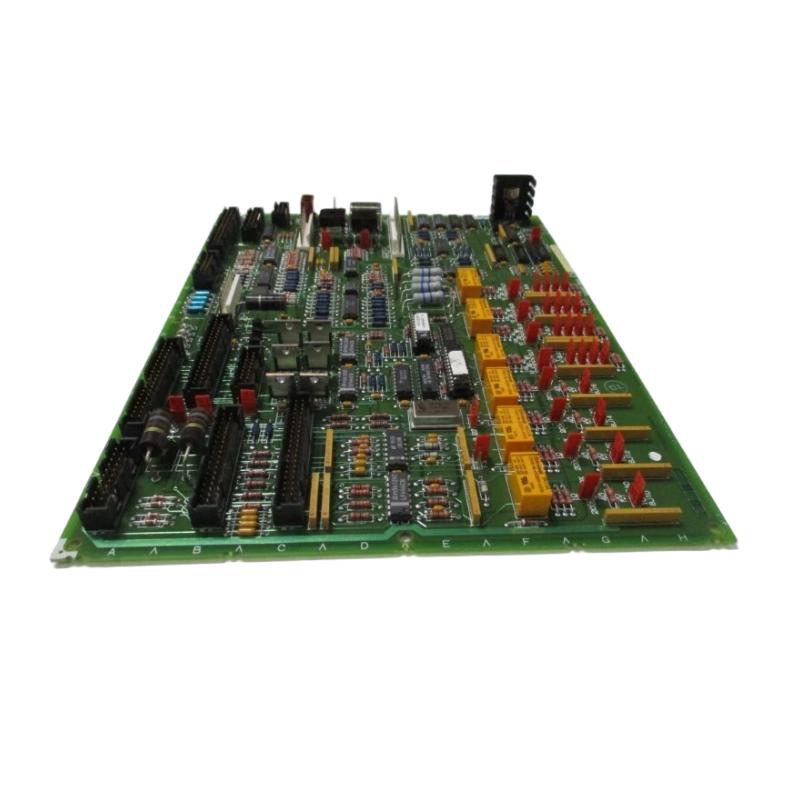

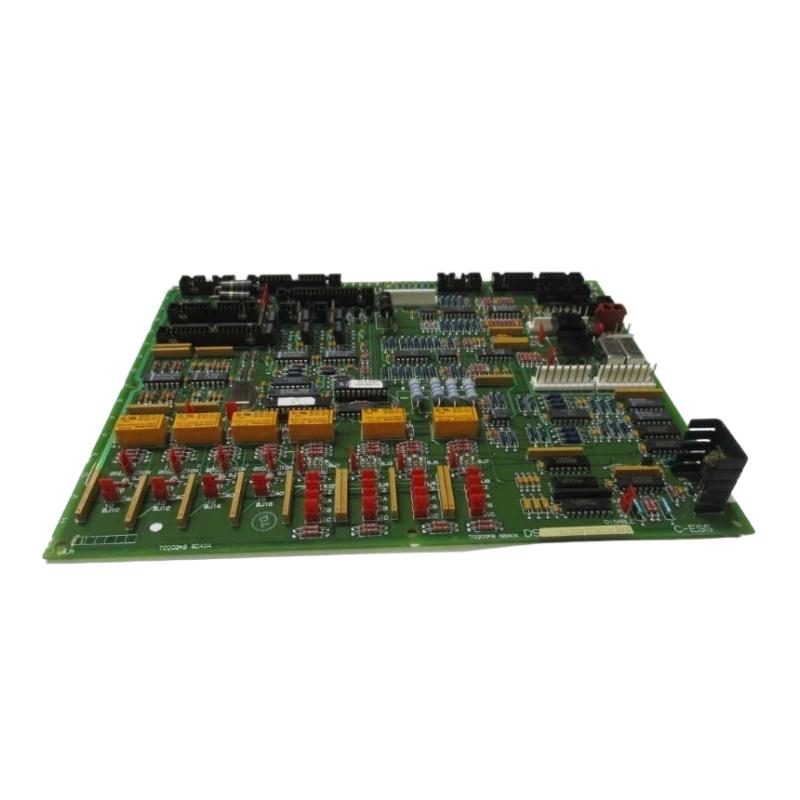

GE DS200TCQCG1BFE | Mark V RST Overflow Board Quality Selection 100% New

Brand：GE Fanuc PLC

Item No.：GE DS200TCQCG1BFE

Product origin：USA

Dimensions:330 × 280 × 50 mm

Weight:0.8 kg

Original source, data supports testing content, and after-sales processing is efficient

The model covers a wide range, and the delivery is efficient. Welcome to contact us for information!

Product Introduction：

Overview

The GE DS200TCQCG1BFE is an RST Overflow Board used in the GE Mark V control system. It provides supplementary analog signal handling, overflow channel management, and extended processing capability for R, S, and T controllers in turbine applications.

General Information

Part Number: DS200TCQCG1BFE
Manufacturer: GE (General Electric)
Series: Mark V
Type: RST Overflow Analog/Signal Processing Board
Mounting: Rack-mounted PCB connected through the backplane
Function: Supports additional analog processing and overflow channels beyond primary I/O boards

Power Specifications

Power Input: Supplied through the Mark V backplane
Supported Signals: Multiple overflow analog channels for voltage, current, and sensor feedback
Protection: Noise filtering, surge suppression, and electrical isolation
Indicators: On-board diagnostic and status LEDs (revision dependent)

Communication & Interface

Interfaces: Backplane data interface to main control processors
Signal Handling: Processes auxiliary/overflow analog channels used by the R, S, and T controllers
Conditioning Features: Filtering, scaling, buffering, and stability enhancement
Diagnostics: Built-in test points and LED monitoring

Environmental

Operating Temperature: Suitable for standard control cabinet environments
Humidity: Up to 95% RH, non-condensing
Installation: Mounted inside protected and enclosed GE Mark V racks

Dimensions & Weight

Dimensions (L × W × H): 330 × 280 × 50 mm
Weight: ~ 0.8 kg

Authentic brand-new products with immediate stock access — quotes available anytime.

The import process is clear, the supply is timely, and matching quotation suggestions can be provided for large quantities.
