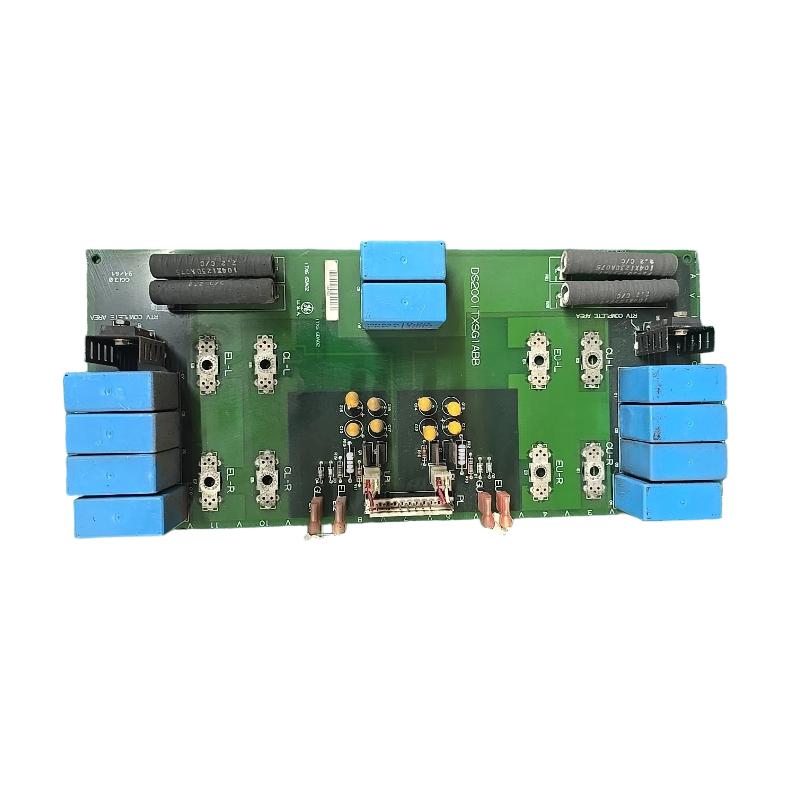

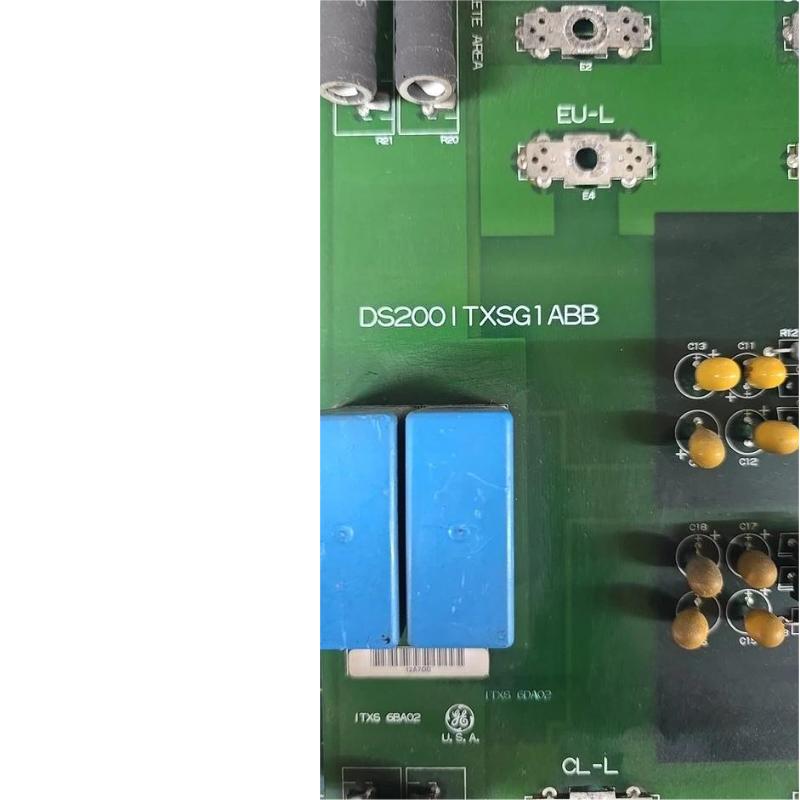

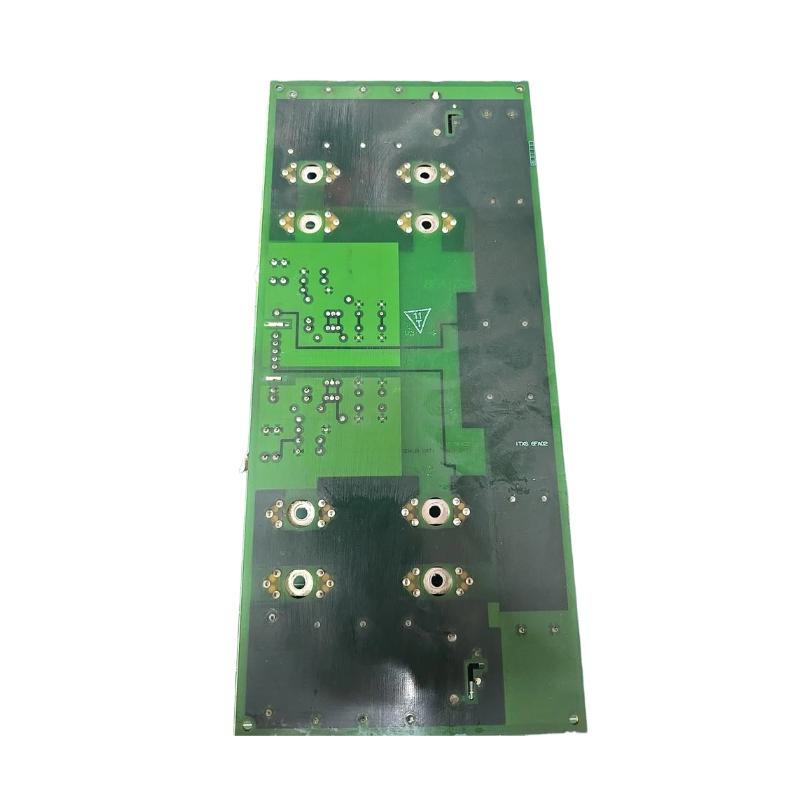

GE DS200ITXSG1ABB | Inverter Snubber Board Quality Selection 30-Day Returns！

Brand：GE Fanuc PLC

Item No.：GE DS200ITXSG1ABB

Product origin：USA

Dimensions:330 × 200 × 100 mm

Weight:2.1 kg

This product is imported from overseas, supports test report assistance, and has smooth after-sales connection

Large stock, diverse series, suitable for different working conditions, welcome to consult!

Product Introduction：

Overview

The GE DS200ITXSG1ABB is an inverter snubber board used in GE Mark V drive and turbine control systems. It absorbs switching transients, protects inverter power devices, and stabilizes voltage during high-frequency switching operations.

General Information

Part Number: DS200ITXSG1ABB
Manufacturer: GE (General Electric)
Series: DS200 / Mark V
Type: Inverter Snubber Board
Mounting: Installed inside inverter or drive cabinet
Technology: Snubber network, surge suppression, transient energy absorption

Power Specifications

Supply Voltage: Derived from inverter power stage
Power Function: Absorbs and dissipates transient surge energy
Protection: Overvoltage suppression and thermal energy absorption
Indicators: Internal test points or LED indicators depending on version

Communication & Interface

Electrical Role: Protects IGBT/inverter bridge circuits
Connections: Direct interface to inverter switching nodes
Diagnostics: Supports system-level fault detection
Operator Interface: None—internal protection board
Reset Features: Reset handled by system-level controller

I/O & Channels

Relay Channels: None
External Load Support: Not applicable
Channels: Internal snubber network paths

Environmental

Operating Temperature: Industrial drive/inverter environment
Humidity: Up to high humidity, non-condensing
Protection Rating: Enclosed inside drive cabinet

Dimensions & Weight

Dimensions (L × W × H): 330 × 200 × 100 mm
Weight: ~2.1 kg

Brand-new original items with full stock levels, supported by responsive customer service.

The product is imported, with complete information, fast delivery, and price advantages. Bulk purchases can be negotiated.
