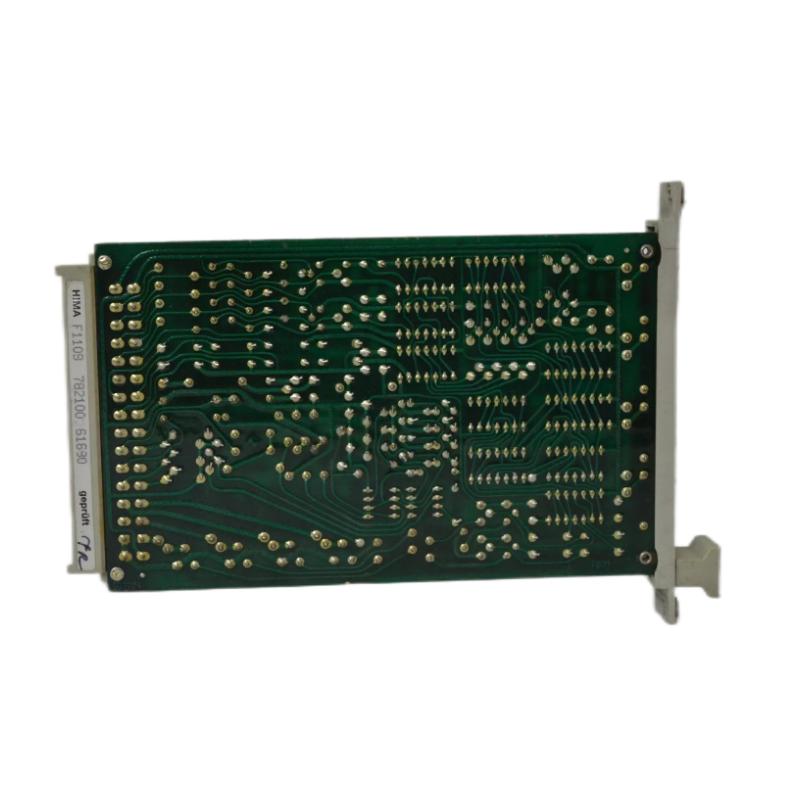

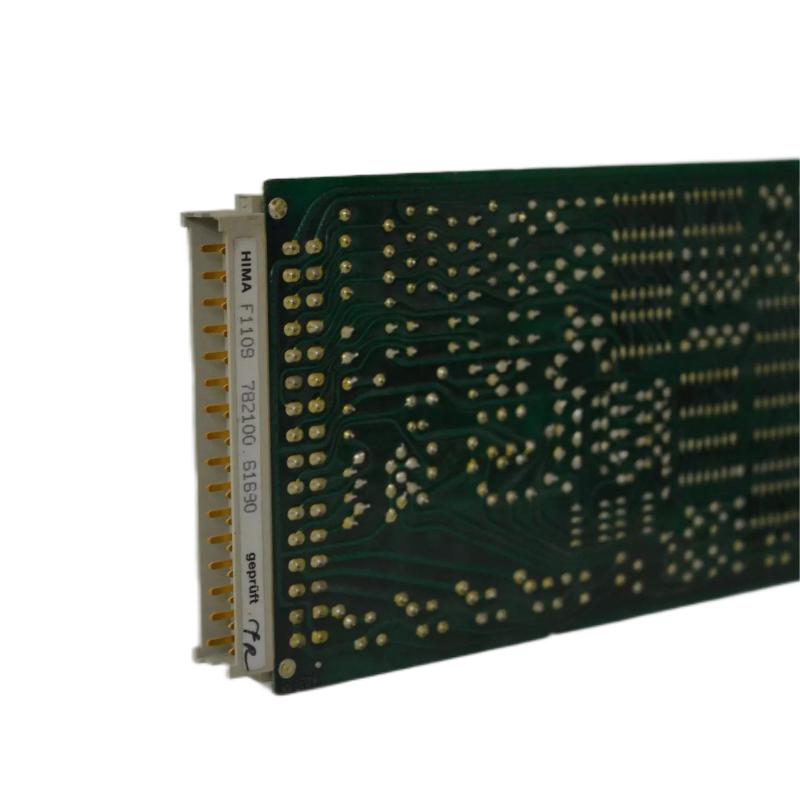

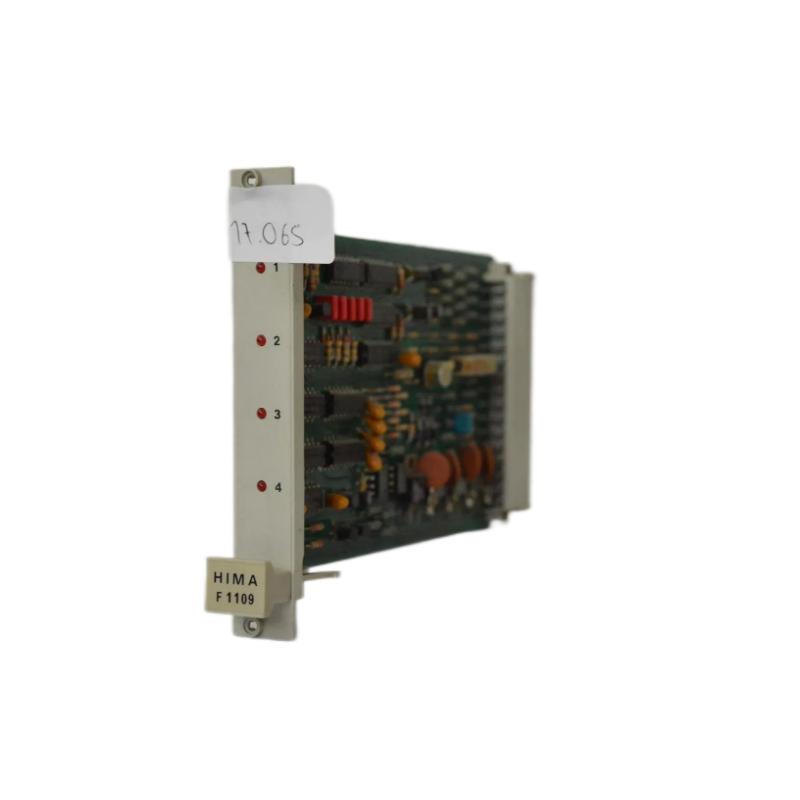

HIMA F1109 | Safety I/O Extension Module Quality Selection Trusted supplier

Brand：Hima DCS Modules

Item No.：HIMA F1109

Product origin：Germany

Dimensions:160 × 120 × 90 mm

Weight:1 kg

The import process is standardized, testing is supported, and after-sales service is guaranteed

The stock volume is large, the series is diverse, and it is suitable for different working conditions. Please consult!

Product Introduction：

Overview

The HIMA F1109 is a safety I/O extension module used in HIMA F1 and HIMAX safety automation systems. It provides additional fail-safe input and output channels, expanding the capacity of the main safety controller for industrial process protection.

General Information

Part Number: F1109
Manufacturer: HIMA
Series: F1 / Safety Module
Type: Safety I/O Extension Module
Mounting: DIN rail or panel-mounted inside safety control cabinets
Function: Expands input/output channels, monitors safety-critical signals, and communicates with the main safety CPU

Power Specifications

Supply Voltage: 24 V DC
Power Consumption: ≤ 12 W
Input: Powered via the main safety controller backplane
Protection: Overvoltage, short-circuit, and reverse-polarity protection
Indicators: LED indicators for power, channel status, and fault

Communication & Interface

Interfaces: Safety bus connection to main F1 or HIMAX controllers
I/O Channels: Multiple digital input and output channels
Diagnostics: On-board LED indicators and test points for maintenance
Operator Interface: LEDs and optional test/reset buttons
Reset Features: Supports hardware and system-level reset

Environmental

Operating Temperature: −20 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 or installed inside industrial control cabinet

Dimensions & Weight

Dimensions (L × W × H): 160 × 120 × 90 mm
Weight: ~ 1.0 kg

100% genuine and brand-new inventory, quick quotations available from our live team.

The product has reasonable price-performance ratio, timely delivery, and special preferential quotations can be applied for project-based procurement.
