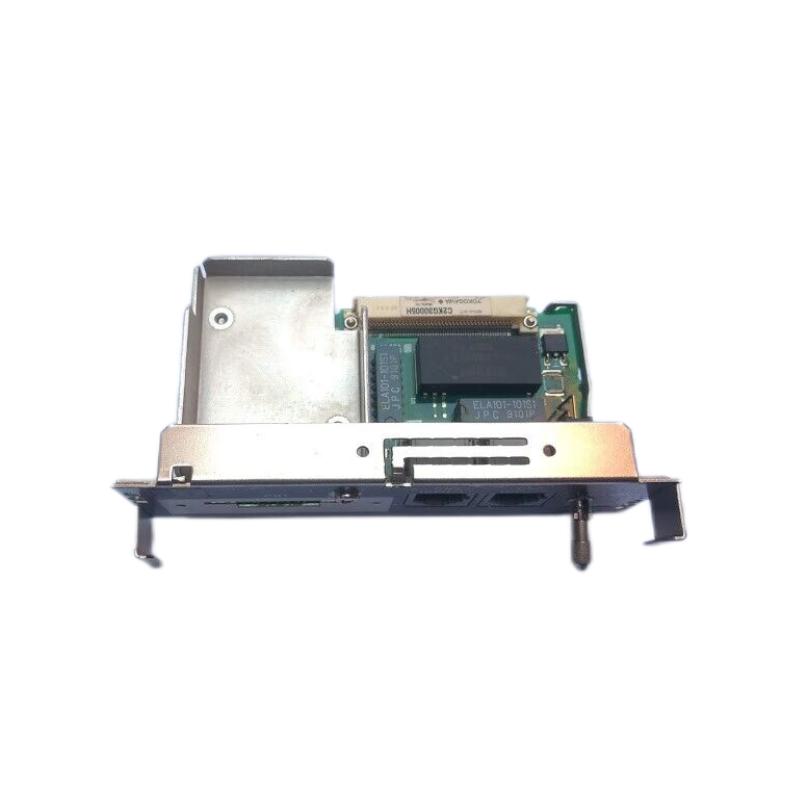

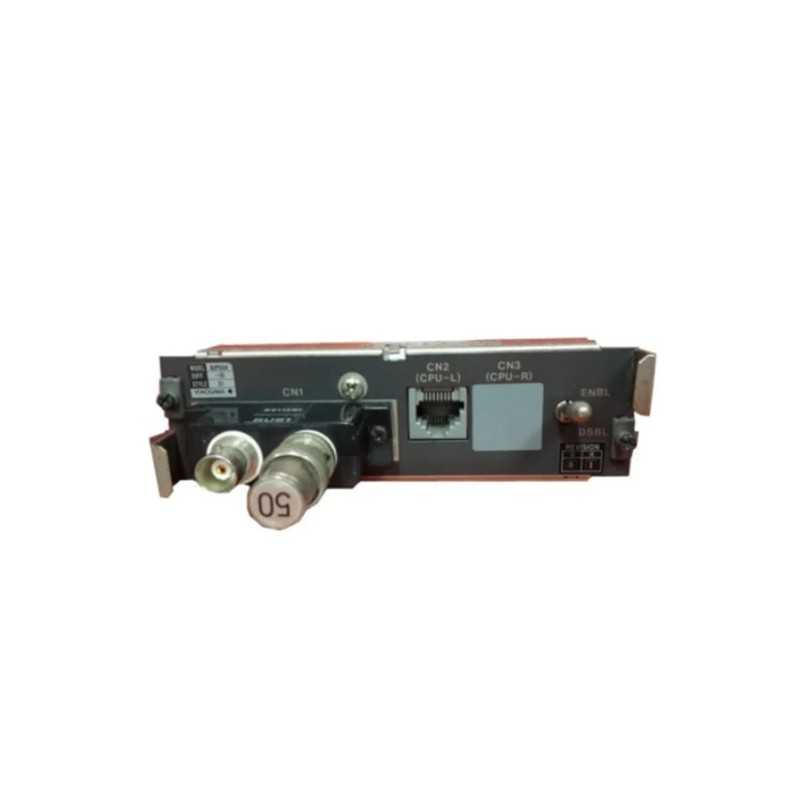

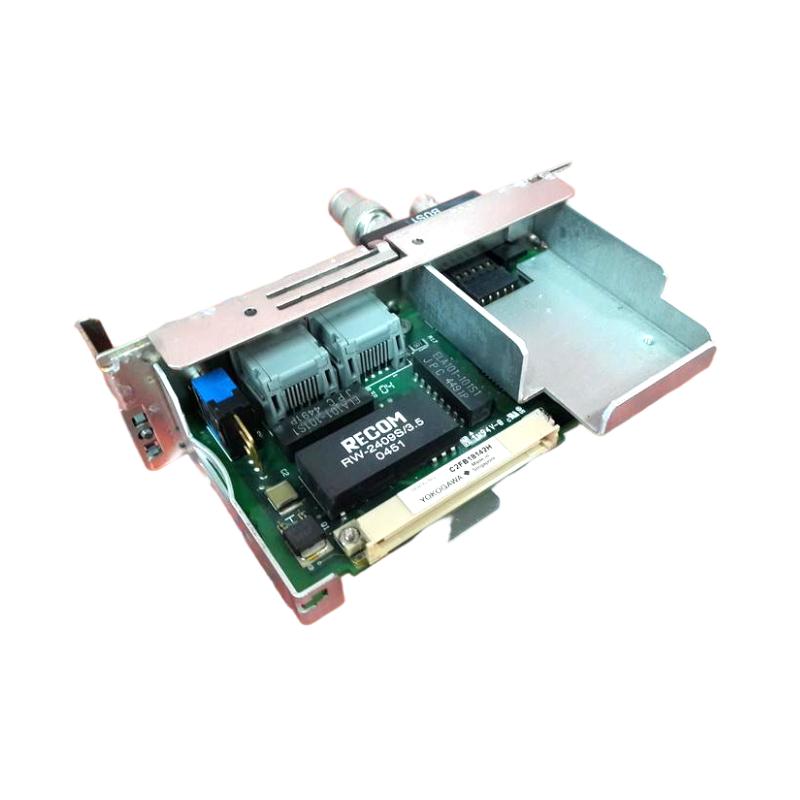

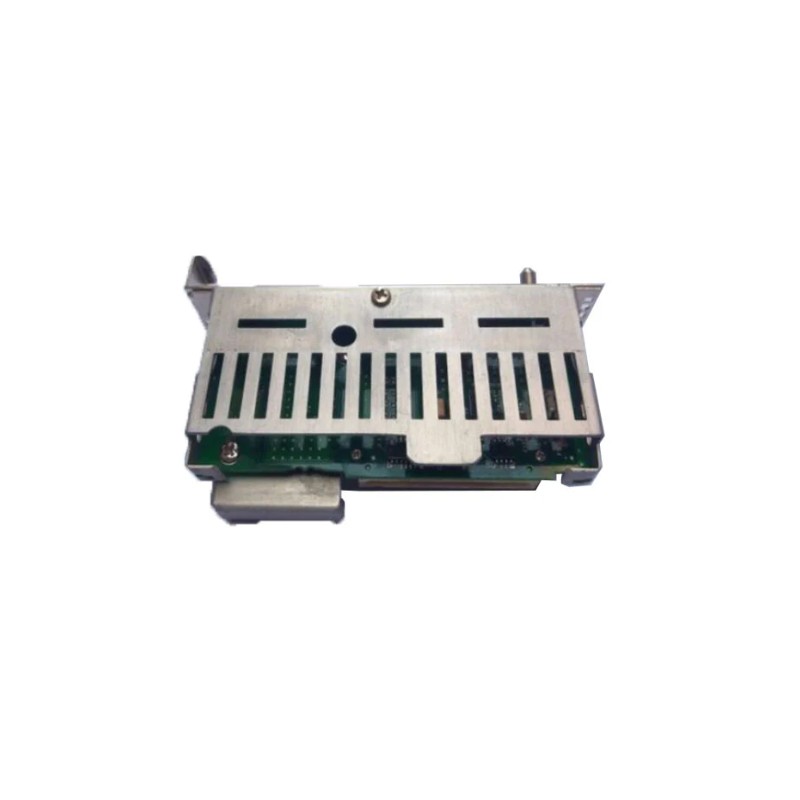

Yokogawa AIP504-10 | Interface Module Price Advantage Original

Brand：Yokogawa Electric

Item No.：Yokogawa AIP504-10

Product origin：Japan

Dimensions:160 × 40 × 120 mm

Weight:0.45 kg

Supply through formal channels, complete and available information, supporting service guarantee

Wide coverage of models, efficient delivery, welcome to contact us for information!

Product Introduction：

Overview

The Yokogawa AIP504-10 is an analog input processing module used in Yokogawa CENTUM DCS systems. It receives analog signals from field instruments and converts them into data that can be processed by the DCS controller. The module supports high-accuracy signal conversion, fast data acquisition, and built-in diagnostics to ensure reliable system operation.

General Information

Part Number: AIP504-10
Manufacturer: Yokogawa
Series: AIP (Analog Input Processing)
Type: Analog Input Module / Interface Module
Mounting: Rack or card installation in DCS control chassis
Technology: Signal conversion, channel isolation, fault detection

Power Specifications

Supply Voltage: 24 V DC from backplane
Power Consumption: ≤ 6 W
Input: Powered via backplane
Protection: Overvoltage and reverse-polarity protection
Indicators: LEDs for power, channel status, and fault detection

Communication & Interface

Field Signal Input: Supports 4–20 mA, 0–10 V, and thermocouple signals depending on module configuration
Controller Interface: Connects analog signals to the DCS control system
Diagnostics: Channel health monitoring, signal failure detection, status reporting
Operator Interface: LEDs for power, communication, and fault indication
Reset Features: Supports soft reset via DCS system software

I/O & Channels

Analog Input Channels: Up to 8 channels per module
Relay / Output Channels: None, used for signal acquisition only
External Load Support: Not applicable

Environmental

Operating Temperature: 0 to 55 °C
Humidity: 10–90% RH, non-condensing
Protection Rating: Standard industrial cabinet, IP20 equivalent

Dimensions & Weight

Dimensions (L × W × H): 160 × 40 × 120 mm
Weight: ~0.45 kg
