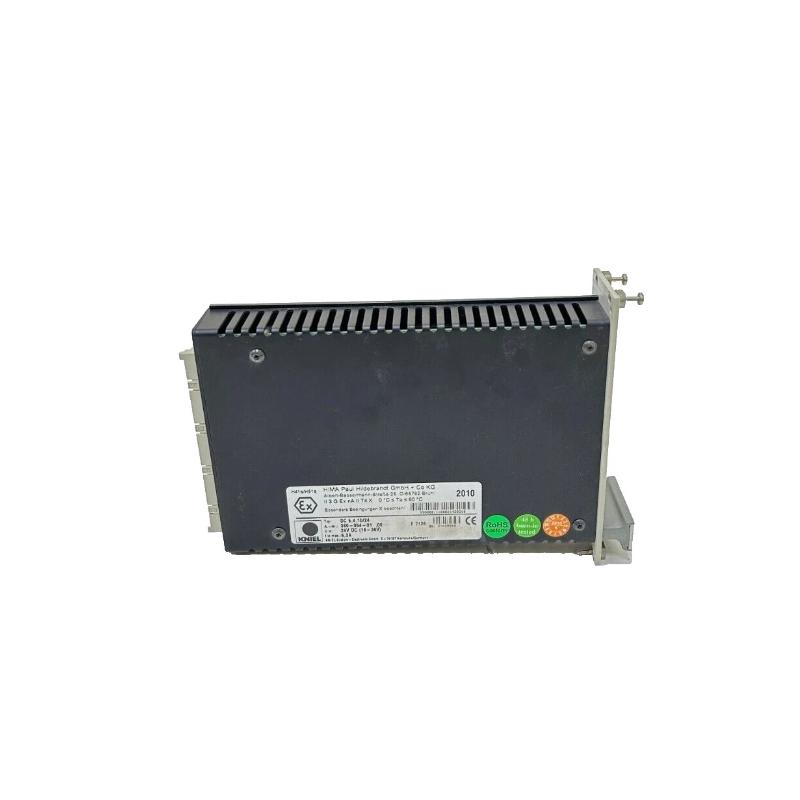

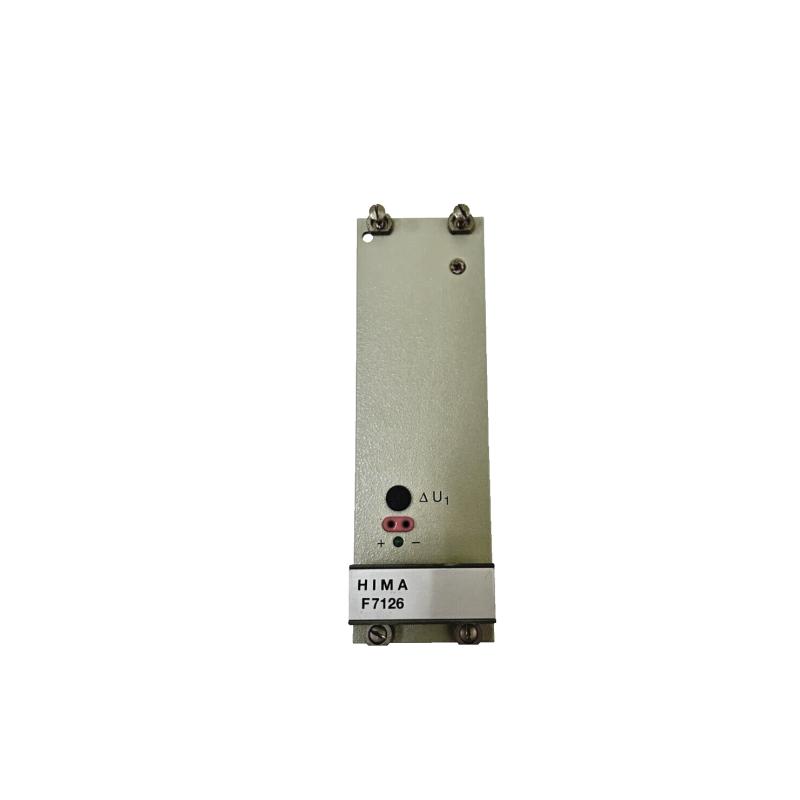

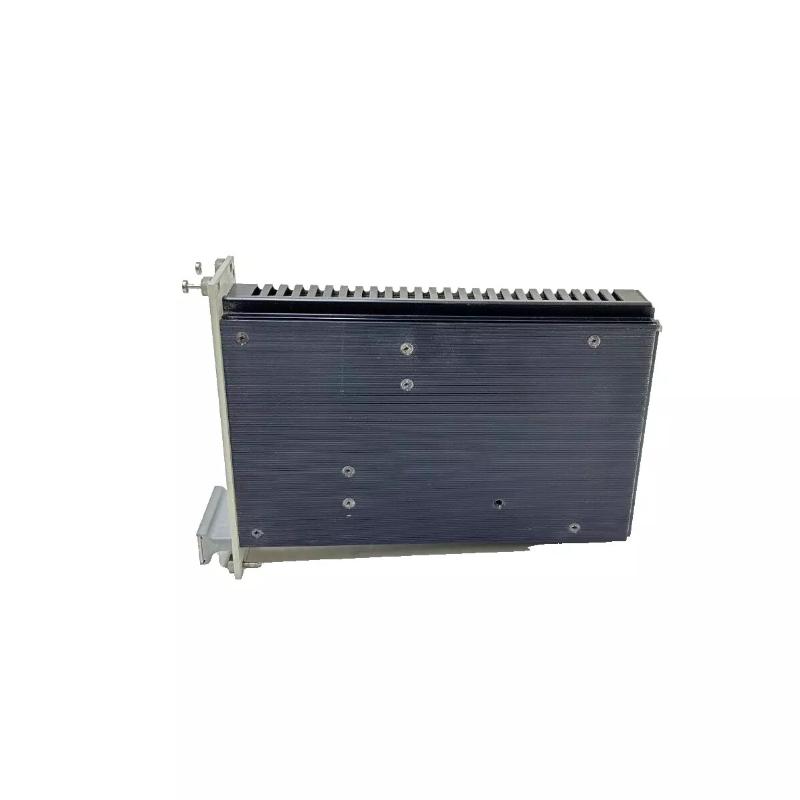

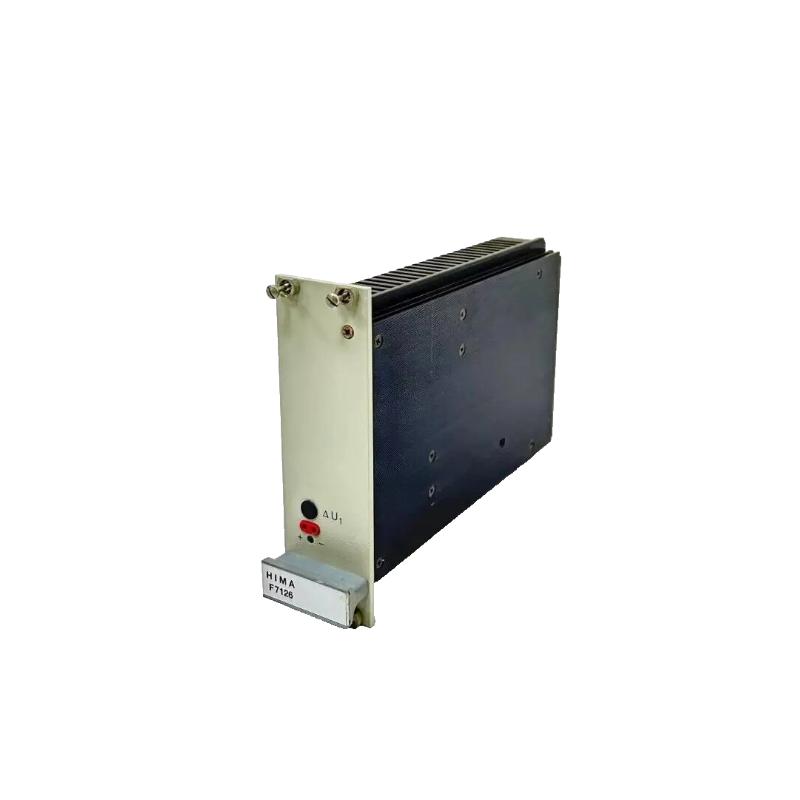

HIMA F7126 | Digital Output Module Efficient delivery Trusted supplier

Brand：Hima DCS Modules

Item No.：HIMA F7126

Product origin：Germany

Dimensions:128 × 40 × 160 mm

Weight:0.28 kg

Standardized import process, support for testing, and guaranteed after-sales

Complete models, inventory is updated in real time, welcome to get the latest list!

Product Introduction：

Overview

The HIMA F7126 is a 16-channel digital output module used in HIMA HIMax and HIQuad safety systems. It provides secure switching of field devices such as valves, contactors, and alarms in safety-critical applications, with SIL-compliant operation and integrated diagnostics.

General Information

Part Number: F7126
Manufacturer: HIMA
Country of Origin: Germany
Series: F-Series I/O
Type: Digital Output Module (DO)
Mounting: Plug-in module for HIMA backplane racks
Application: Safety PLC systems, ESD, BMS, turbine control, process interlocks

Power Specifications

Supply Voltage: Powered via HIMA system backplane
Output Voltage: 24 V DC (typical field supply)
Load Type: Supports resistive and inductive loads within rated limits
Protection: Overload, short-circuit protection, and internal diagnostics
Power Consumption: Low module logic consumption

Communication & Interface

Interface Type: Backplane communication with HIMA controller
Output Channels: 16 digital outputs
Signal Type: 24 V DC switching outputs
Diagnostics: Channel fault monitoring, output status indication
LED Indicators: Individual channel LEDs for status and diagnostics

I/O & Channels

Output Type: Digital Output (DO)
Number of Channels: 16
Isolation: Galvanic isolation between module and field wiring
External Load Support: Relays, solenoids, contactors within rated limits

Environmental

Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Industrial control cabinet
Protection Rating: IP20 (installed in rack enclosure)

Dimensions & Weight

Dimensions (L × W × H): 128 × 40 × 160 mm
Weight: ~ 0.28 kg
