HIMA F3237 | Digital Output Module Hot Items Fast Shipping!

Brand：Hima DCS Modules

Item No.：HIMA F3237

Product origin：Germany

Dimensions:128 × 40 × 160 mm

Weight:0.28 kg

Compliant import, support for testing, and fast response to after-sales service

Flexible stock of multiple models, support for fast response, welcome to cooperate and communicate!

Product Introduction：

Overview

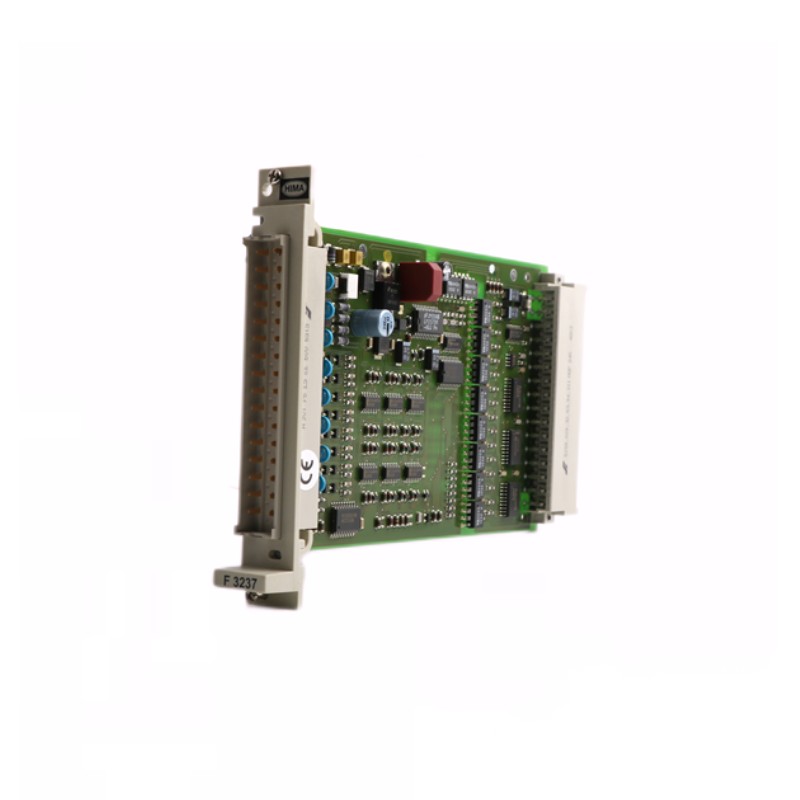

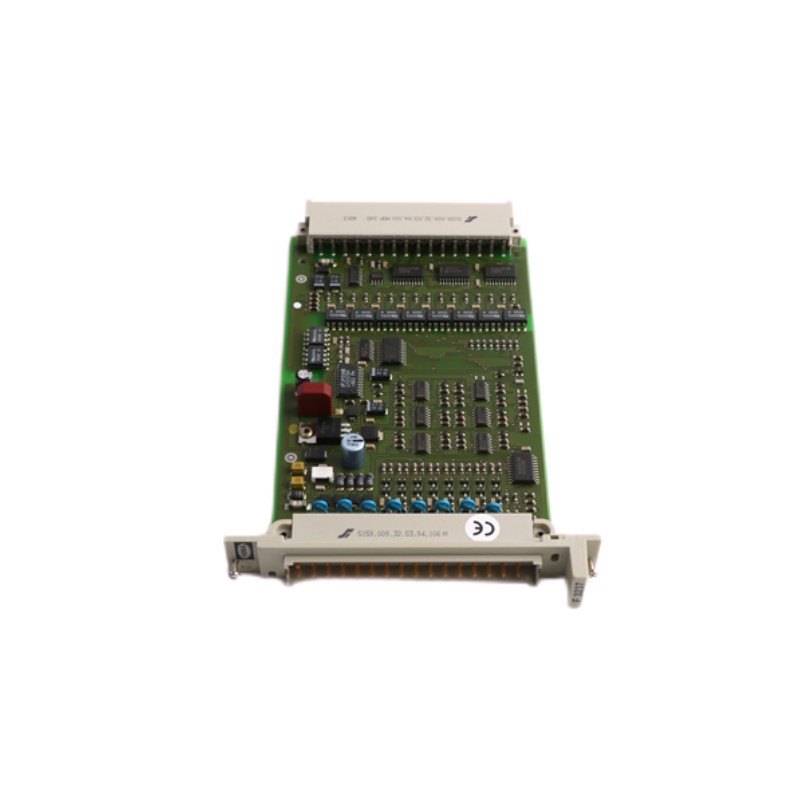

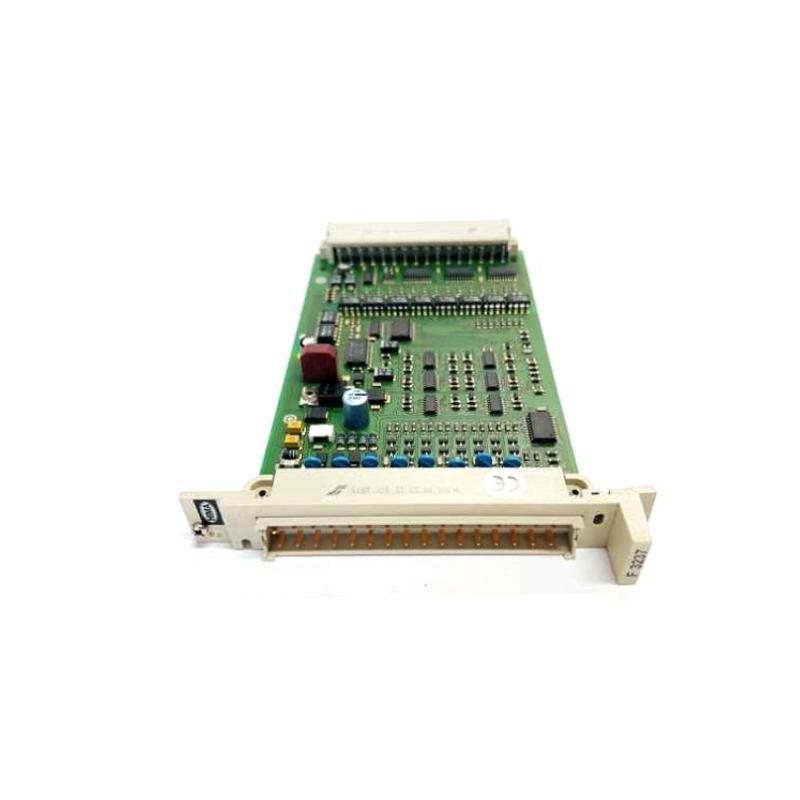

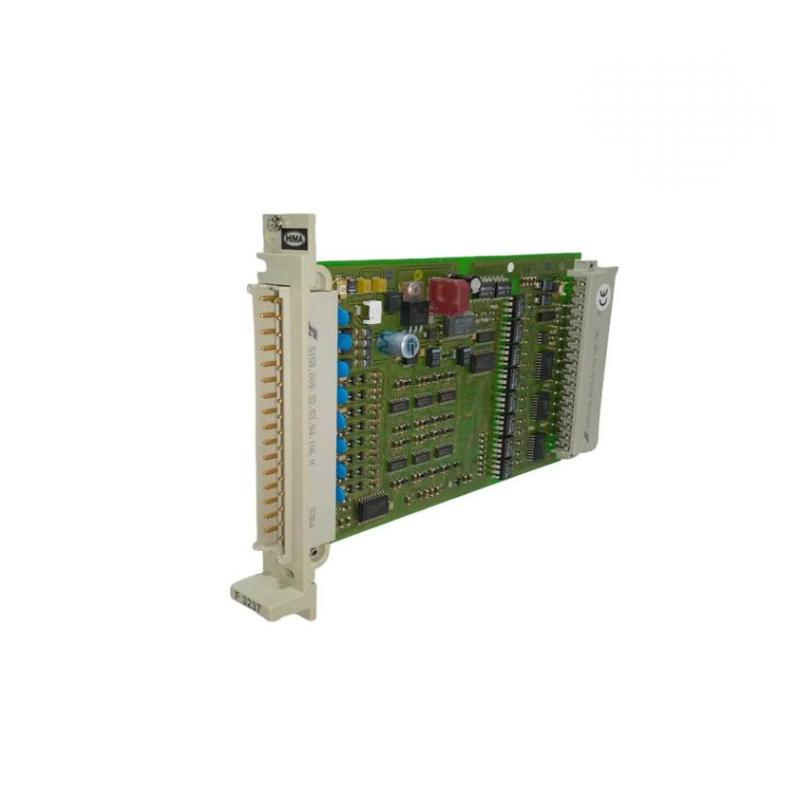

The HIMA F3237 is a 16-channel digital output module designed for HIMA HIMax / HIQuad safety systems. It provides reliable DO signal switching for critical safety and process control applications, featuring diagnostic capability and SIL-compliant performance for shutdown, interlock, and control functions。

General Information

Part Number: F3237
Manufacturer: HIMA
Country of Origin: Germany
Series: F-Series I/O
Type: Digital Output Module (16-channel)
Mounting: Plug-in card for HIMA system racks
Application: ESD, BMS, turbine control, process safety logic systems

Power Specifications

Module Supply: Powered from the backplane power system
Output Voltage: 24 V DC (typical field supply)
Output Type: Solid-state electronic outputs
Power Consumption: Low module logic consumption
Protection: Overload and short-circuit protection, internal supervision

Communication & Interface

Interface Type: HIMA backplane communication
Output Channels: 16 digital outputs
Signal Type: 24 V DC switching output
Diagnostics: Channel health monitoring, output status, fault notification
LED Indicators: Individual output-status LEDs

I/O & Channels

Output Type: Digital Output (DO)
Number of Channels: 16
Load Capability: Supports resistive and inductive loads within rated limits
Isolation: Galvanic isolation between module and field wiring

Environmental

Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH (non-condensing)
Protection Class: IP20 (when installed in cabinet)
Installation: Industrial control cabinet with HIMA rack system

Dimensions & Weight

Dimensions (L × W × H): 128 × 40 × 160 mm
Weight: ~0.28 kg
