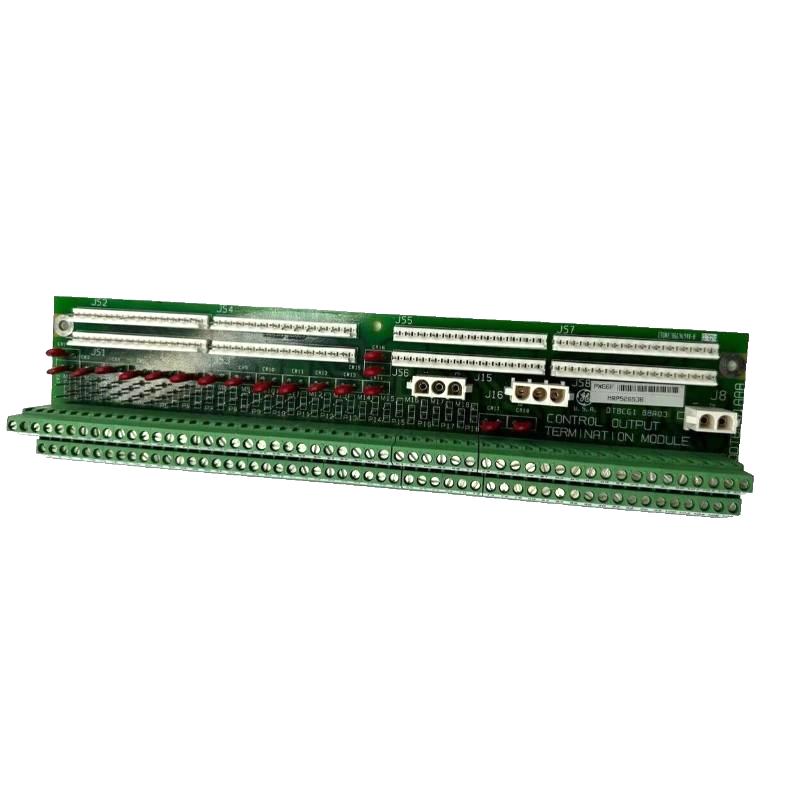

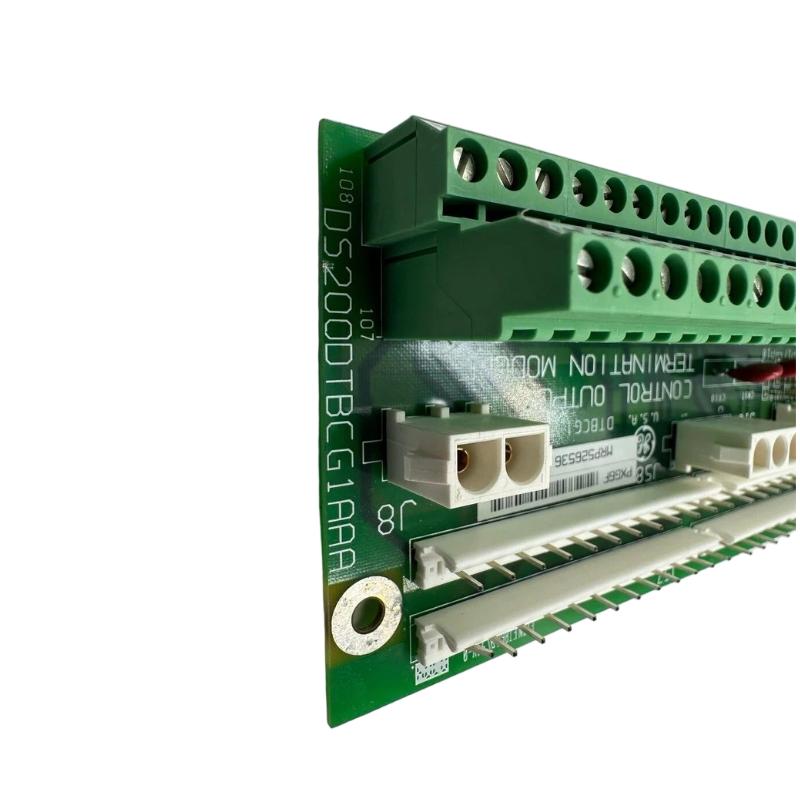

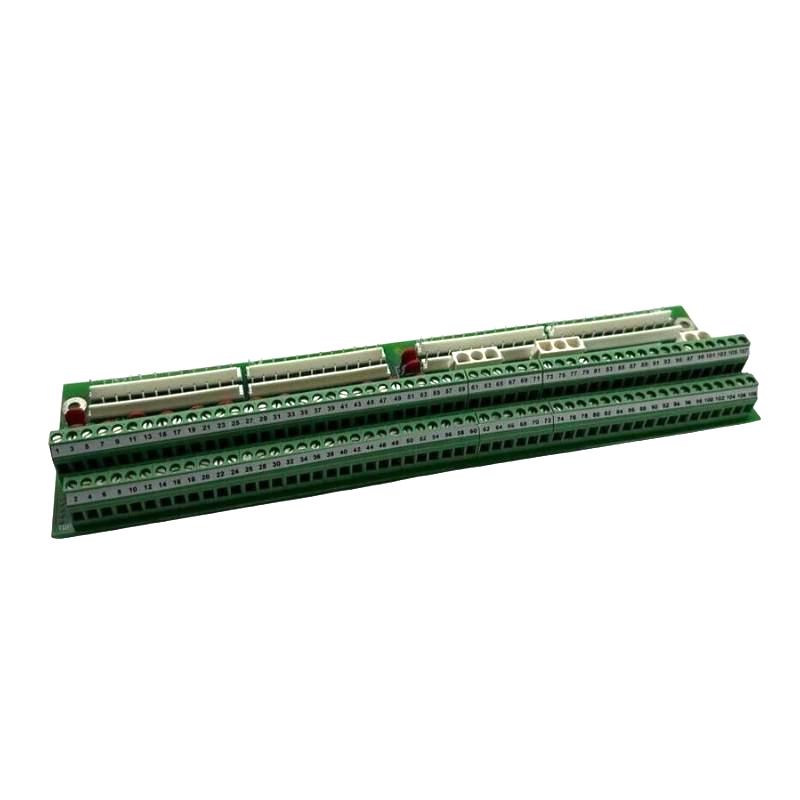

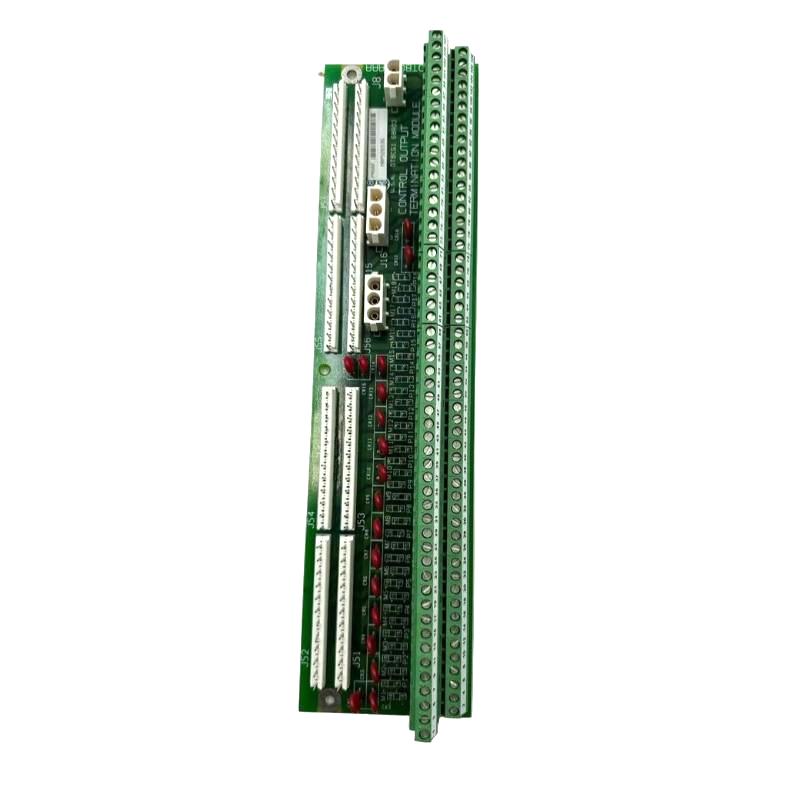

GE DS200DTBCG1AAA | Connector Relay Terminal Board Original Fast Shipping!

Brand：GE Fanuc PLC

Item No.：GE DS200DTBCG1AAA

Product origin：USA

Dimensions:330 × 280 mm

Weight:0.55 kg

Compliant import, support for testing, and fast response to after-sales service

Flexible stock of multiple models, support for fast response, welcome to cooperate and communicate!

Product Introduction：

Overview

The GE DS200DTBCG1AAA is a connector relay terminal board used within the GE Mark V turbine control system. It provides field wiring termination points for discrete input and output signals, enabling secure and organized interfacing between field devices and the control rack. The board also supports relay signal routing and isolation for enhanced system reliability.

General Information

Part Number: DS200DTBCG1AAA
Manufacturer: GE (General Electric)
Series: Mark V
Type: Connector / Relay Terminal Board
Mounting: Rack-mounted or panel-mounted within the Mark V cabinet
Technology: Passive termination board with relay signal distribution

Power Specifications

Supply Voltage: Receives operating signals from the main control modules
Power Consumption: Minimal, passive board
Input Power Source: Mark V rack signal interface
Protection: Noise filtering, fused signal paths (model dependent)
Indicators: May include basic status labeling for wiring identification

Communication & Interface

Interface Role: Provides terminal points for relay I/O and discrete signals
Connector Type: Pluggable terminal blocks and ribbon cable connectors
Signal Routing: Supports relay output routing and digital input interfacing
Diagnostics: Physical labeling and wiring identification marks
Operator Interface: Front-access terminal connections for easy maintenance
Reset Features: Not applicable for passive boards

I/O & Channels

I/O Support: Multiple discrete channels depending on connected modules
Function: Terminates field wiring for relays, switches, alarms, and contact inputs
External Load Support: Routing only; no load driving capability

Environmental

Operating Temperature: 0 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for installation inside industrial control enclosures

Dimensions & Weight

Dimensions: 330 × 280 mm
Weight: ~ 0.55 kg
