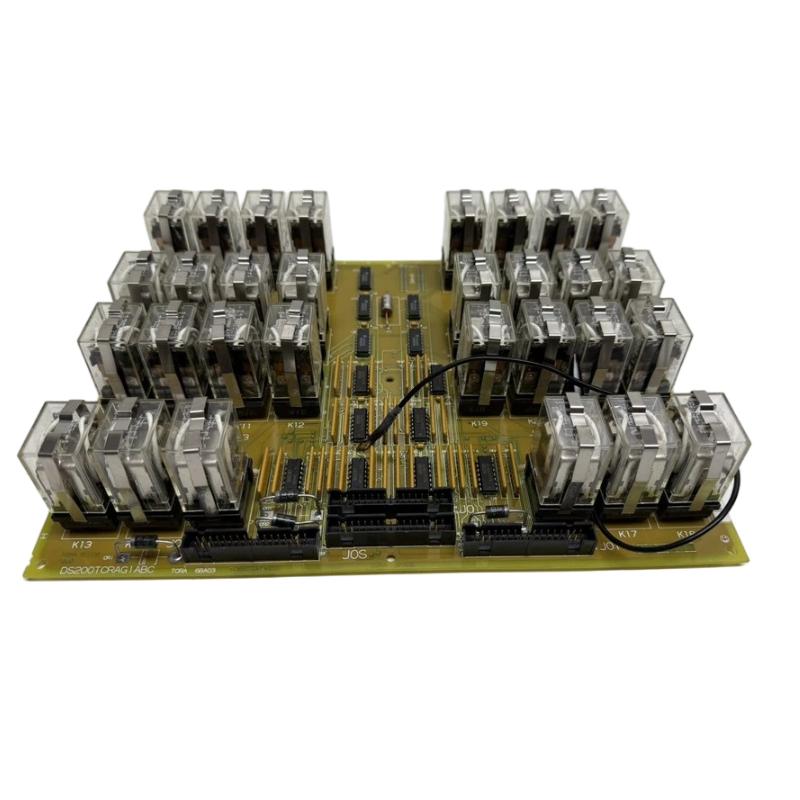

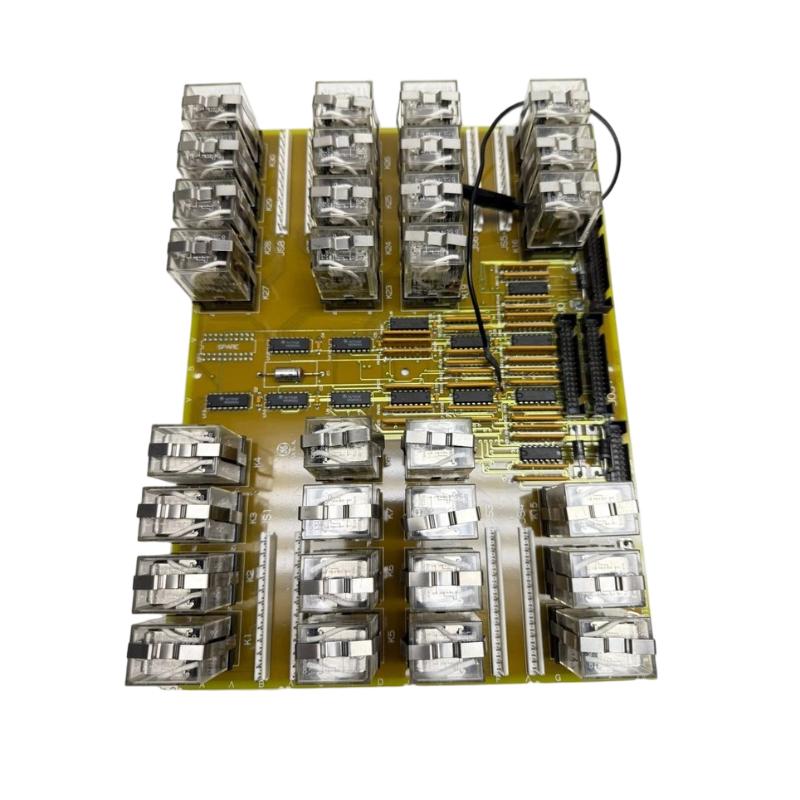

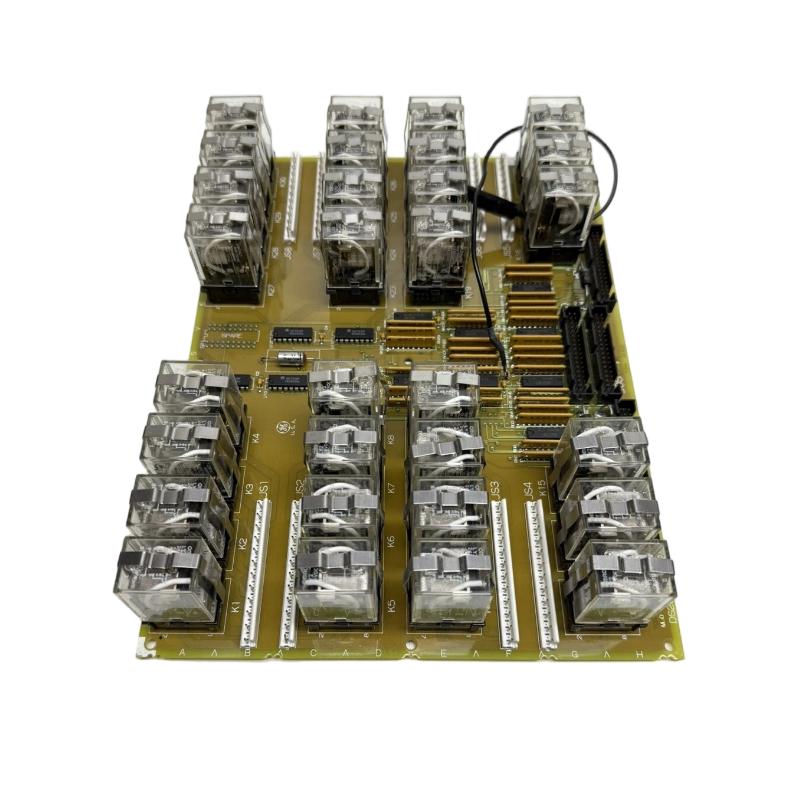

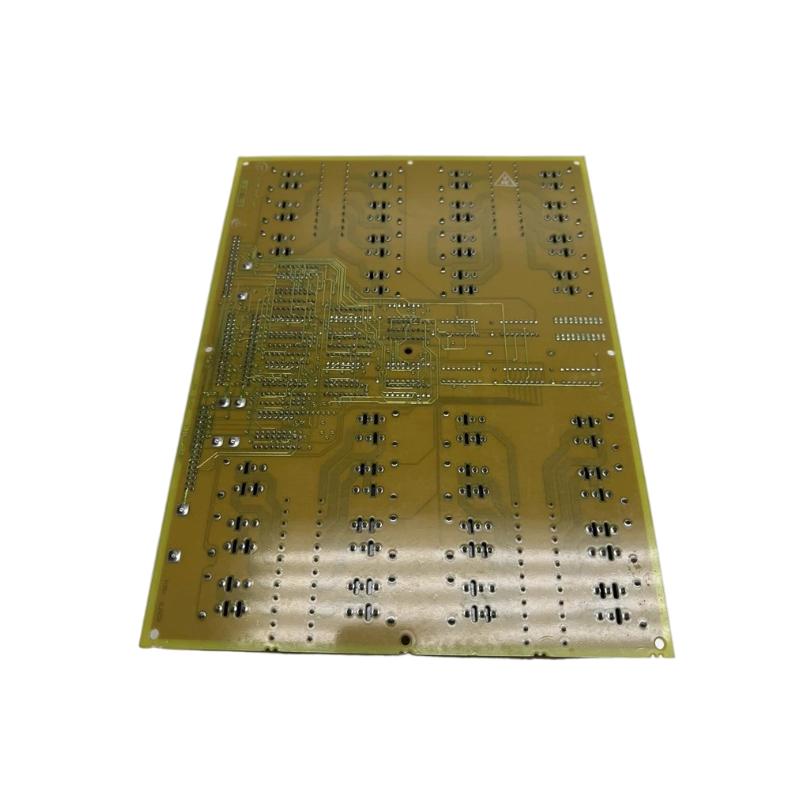

GE DS200TCRAG1ABC | Relay Output Board Quality Selection Original

Brand：GE Fanuc PLC

Item No.：GE DS200TCRAG1ABC

Product origin：USA

Dimensions:330 × 280 mm

Weight:0.6 kg

Original source, data support testing content, efficient after-sales processing

Flexible stocking of multiple models, support for quick response, welcome to cooperate and communicate!

Product Introduction：

Overview

The GE DS200TCRAG1ABC is a relay output board used within the GE Mark V control system. It provides electrically isolated relay outputs for driving external devices such as solenoids, contactors, alarms, and interlock circuits. This board ensures reliable command execution and is commonly used in turbine and auxiliary equipment control.

General Information

Part Number: DS200TCRAG1ABC
Manufacturer: GE (General Electric)
Series: Mark V
Type: Relay Output Board
Mounting: Installed in the Mark V control rack
Technology: Electromechanical relay output stage with isolation

Power Specifications

Supply Voltage: Powered from the Mark V backplane
Power Consumption: Low-power control circuitry
Input Power Source: Rack backplane
Protection: Relay isolation, noise suppression components, transient protection
Indicators: On-board LEDs for relay status and diagnostics

Communication & Interface

Control Role: Provides discrete relay outputs for system commands
Output Type: Electromechanical relay contacts
Relay Configuration: Form A / Form C contact types (depending on board version)
Diagnostics: Relay health monitoring, status indication
Operator Interface: LED indicators for each relay channel
Reset Features: System-level reset through the turbine control processor

I/O & Channels

Relay Outputs: Multiple relay channels for external device control
Contact Rating: Suitable for typical control voltage and current levels
External Load Support: Supports solenoids, interlocks, alarms, and control relays

Environmental

Operating Temperature: 0 to +60 °C (typical Mark V conditions)
Humidity: Up to 95% RH, non-condensing
Protection Rating: Standard industrial control cabinet environment

Dimensions & Weight

Dimensions: 330 × 280 mm
Weight: ~ 0.6 kg
