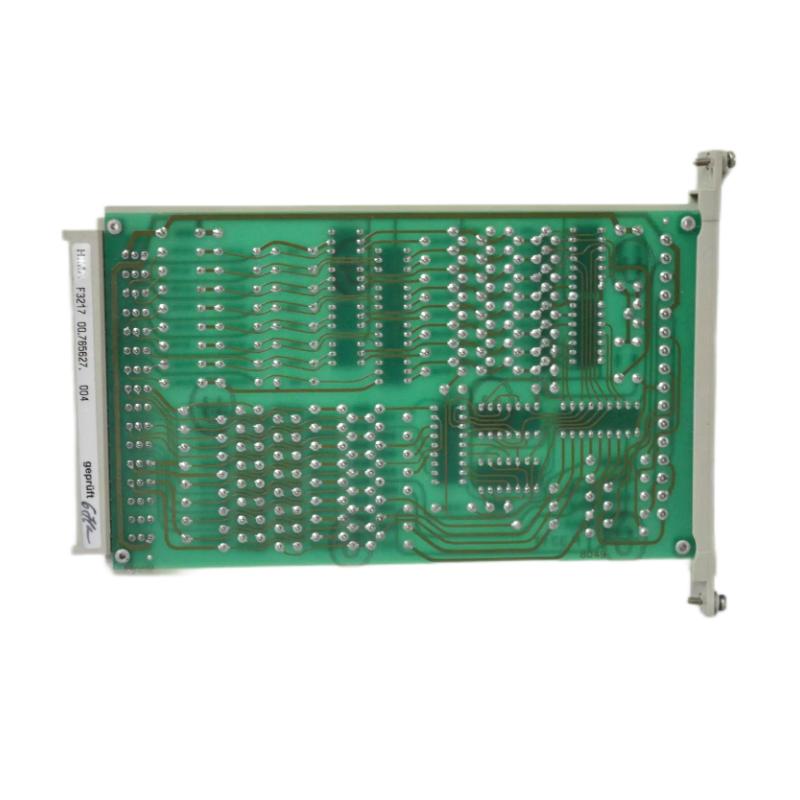

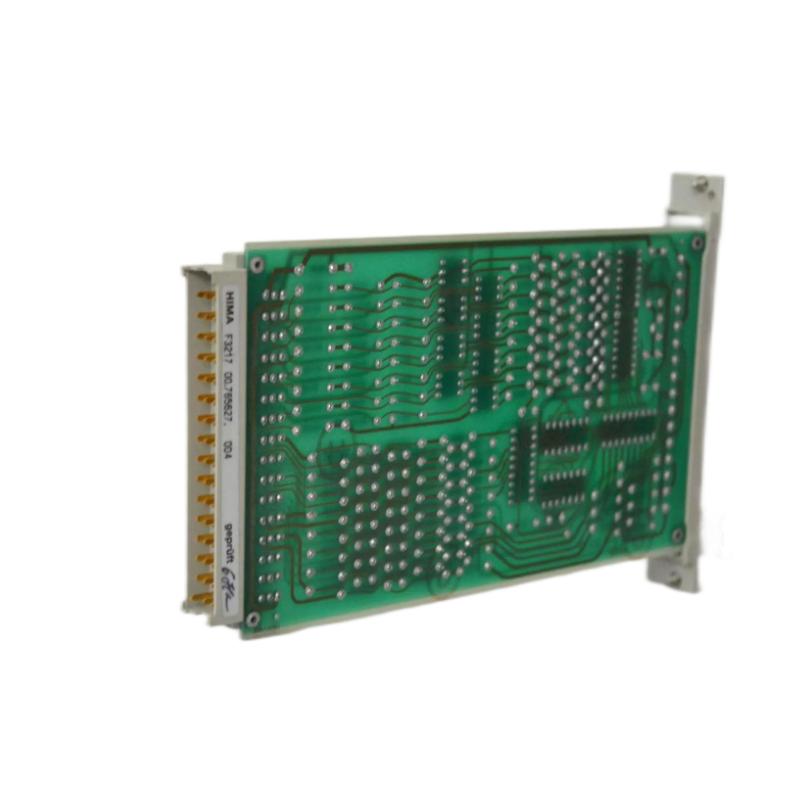

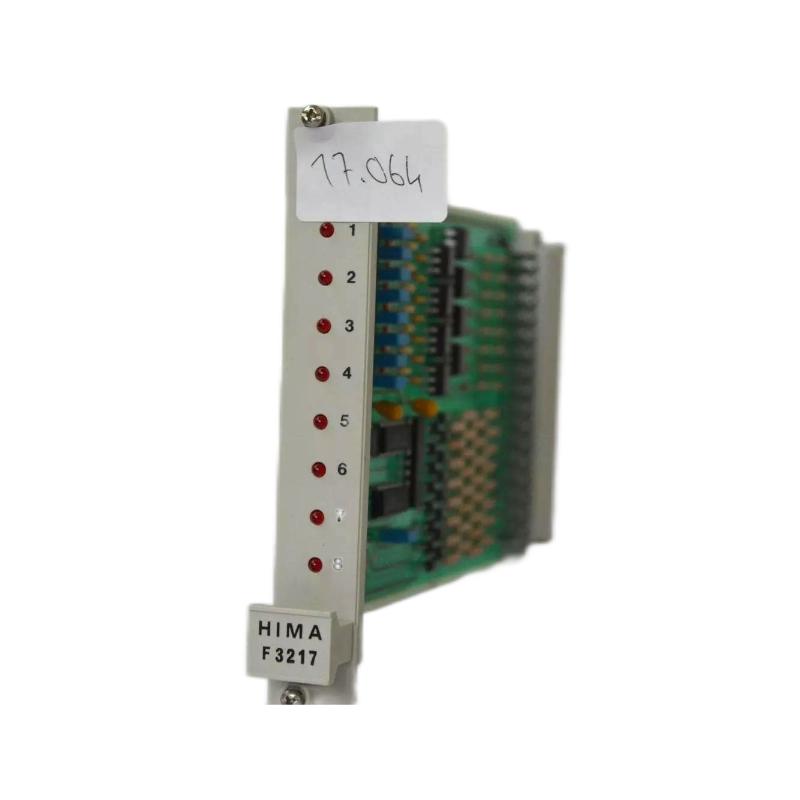

HIMA F3217 | 8‑Channel Safety Input Module New In Stock 30-Day Returns！

Brand：Hima DCS Modules

Item No.：HIMA F3217

Product origin：Germany

Dimensions:200 × 100 × 35 mm

Weight:0.3 kg

Formal channel supply, complete information available, supporting service guarantee

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product Introduction：

Overview

The HIMA F3217 is an 8‑channel safety‑rated input module from HIMA’s Planar‑F / safety I/O family. It is used to collect discrete field signals (e.g. from sensors, switches) and transmit them reliably to the safety controller for monitoring and logic processing.

General Information

Part Number: F3217
Manufacturer: HIMA
Country of Origin: Germany
Module Type: Digital Input Module (Safety Related)
Function: Receives and processes 24 V DC digital input signals from field devices for safety monitoring

Input & Signal Specifications

Input Channels: 8 isolated digital inputs
Input Voltage: 24 V DC signal standard
Isolation: Galvanic isolation between each channel and system bus for safety integrity
Fault Monitoring: Supports wire‑break detection, short‑circuit detection, and channel-level diagnostics

Environmental & Operational Conditions

Operating Temperature: –20 °C to +60 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Compatible with typical industrial control-room cabinet environments, non‑condensing
Mounting: DIN‑rail or standard control‑cabinet backplane compatible

Dimensions & Weight

Dimensions (L × W × H): 200 × 100 × 35 mm
Weight: ~ 0.30 kg

Brand-new original products in stock, professional customer service available anytime, pricing transparent.

The import process is clear, the supply is timely, and matching quotation suggestions can be provided for large quantities.
