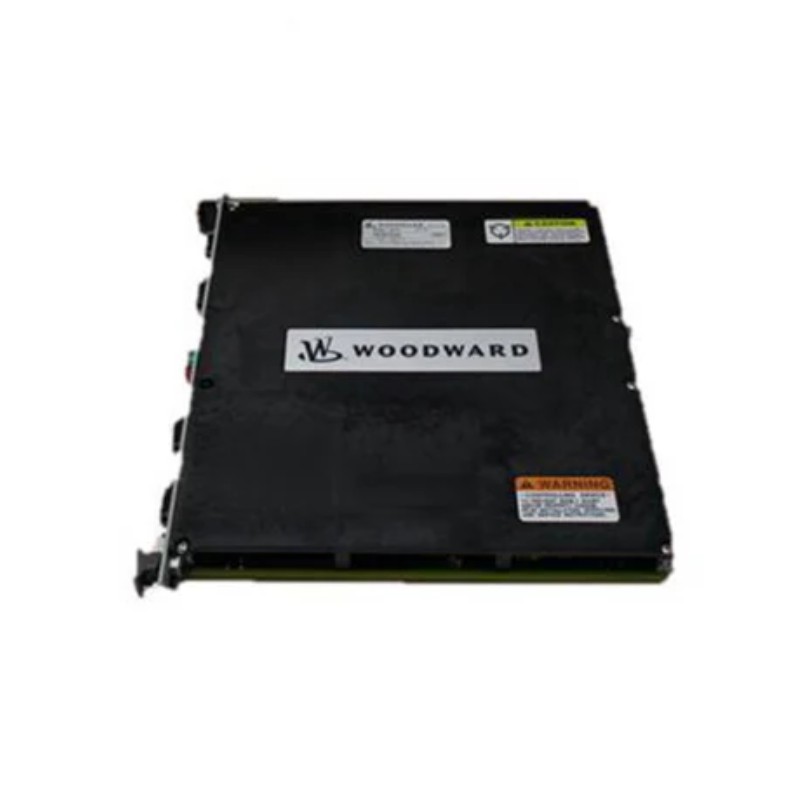

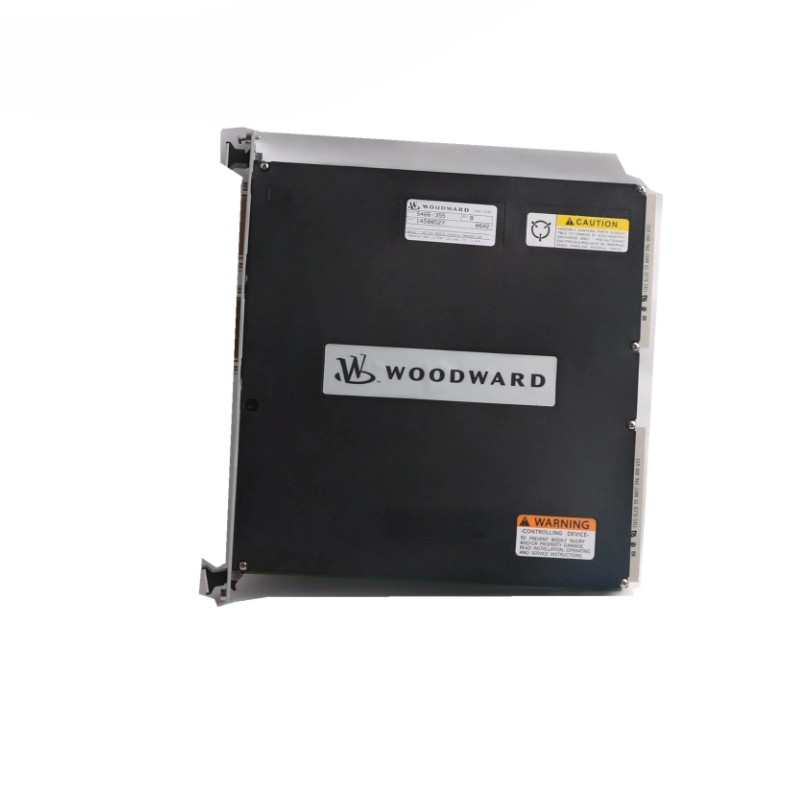

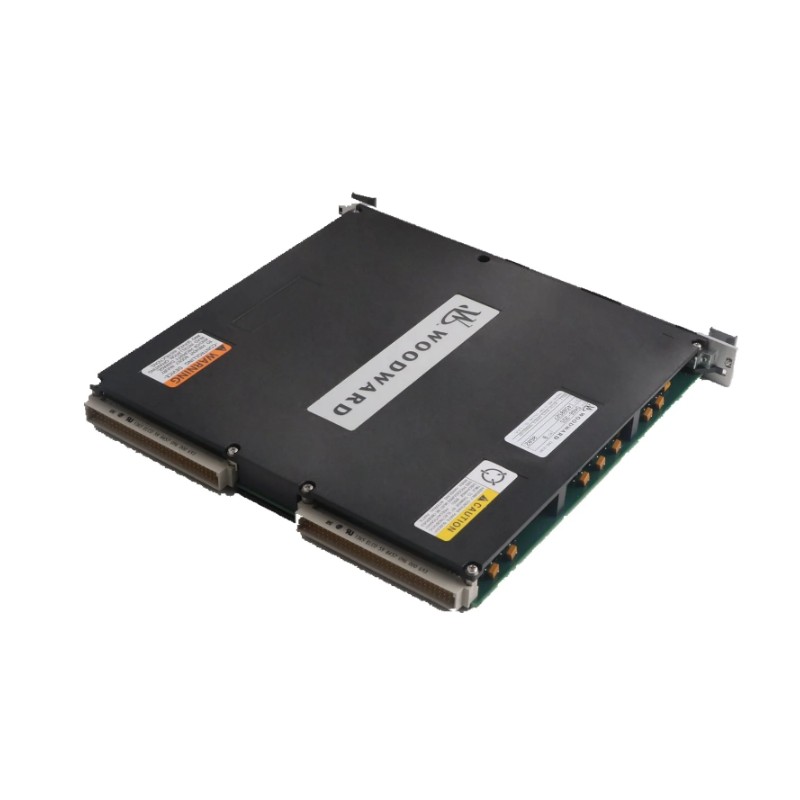

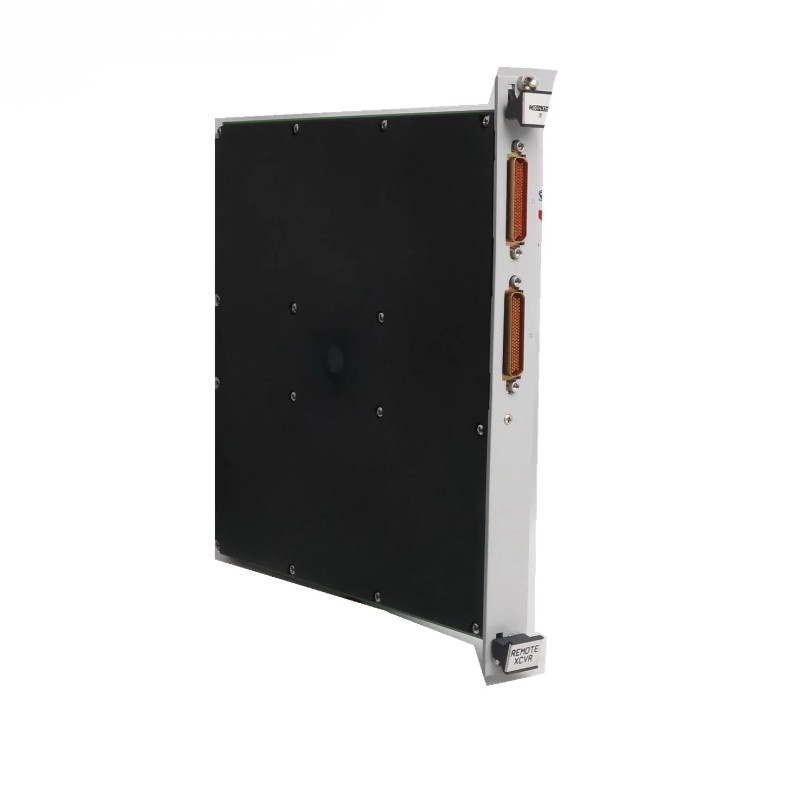

Woodward 5501-469 | Digital Control Module New In Stock Trusted supplier

Brand：Woodward PLC

Item No.：Woodward 5501-469

Product origin：USA

Dimensions:175 × 35 × 140 mm

Weight:0.4 kg

Formal channel supply, complete information can be checked, and supporting service guarantee

The inventory covers multiple brands and series, and supports fast delivery. Welcome to call for negotiation!

Product Introduction：

Overview

The Woodward 5501-469 is a digital control module used within Woodward 505/5000-series turbine and engine control platforms. It provides processing, logic execution, and communication functions required for high-reliability industrial control applications.

General Information

Part Number: 5501-469

Manufacturer: Woodward

Series: 5000 / 505 Control Series

Type: Digital Control / Processor Module

Mounting: Rack-mounted in Woodward control chassis

Technology: Microprocessor-based control with onboard diagnostics

Power Specifications

Supply Voltage: 24 V DC (from system backplane)

Power Consumption: ≤ 12 W

Input: Powered through the rack interface/backplane

Protection: Overvoltage and internal isolation protection

Indicators: LEDs for power, run, communication, and fault status

Communication & Interface

Communication Bus: Woodward system backplane communication bus

Supported Functions: System logic processing, inter-module communication

Diagnostics: Continuous self-test, watchdog monitoring, status reporting

Operator Interface: Status LEDs, software configuration tools

Reset Features: Supports module reset and system restart

I/O & Channels

Relay Channels: None (logic/processor module only)

External Load Support: Not applicable

Signal Handling: Executes logic based on other system I/O modules

Environmental

Operating Temperature: −20 to +70 °C

Humidity: 5–95% RH, non-condensing

Protection Rating: Standard control cabinet conditions (approx. IP20)

Dimensions & Weight

Dimensions (L × W × H): Approx. 175 × 35 × 140 mm
Weight: ~ 0.4 kg
