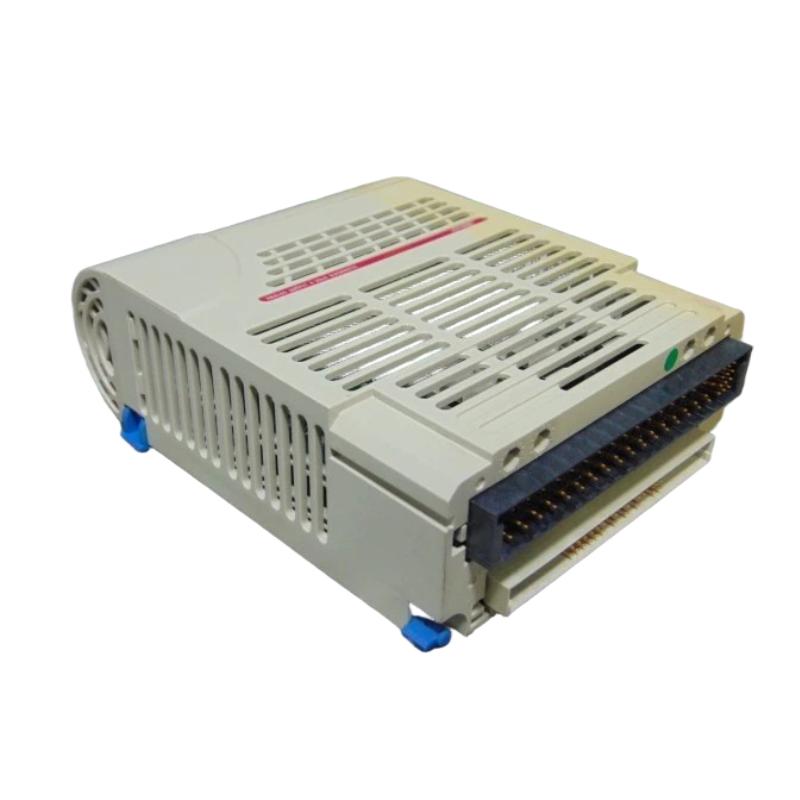

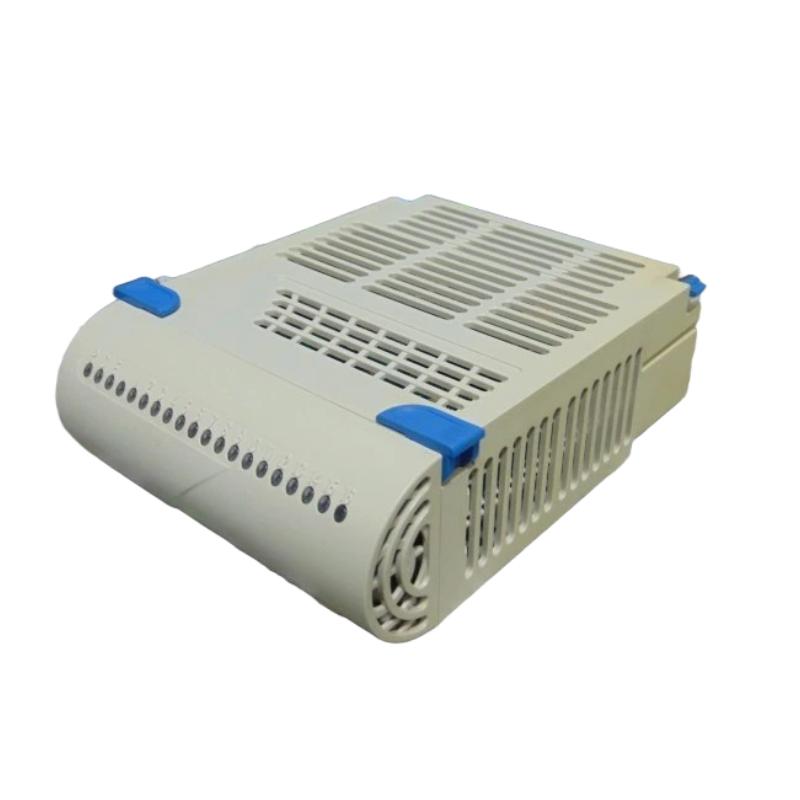

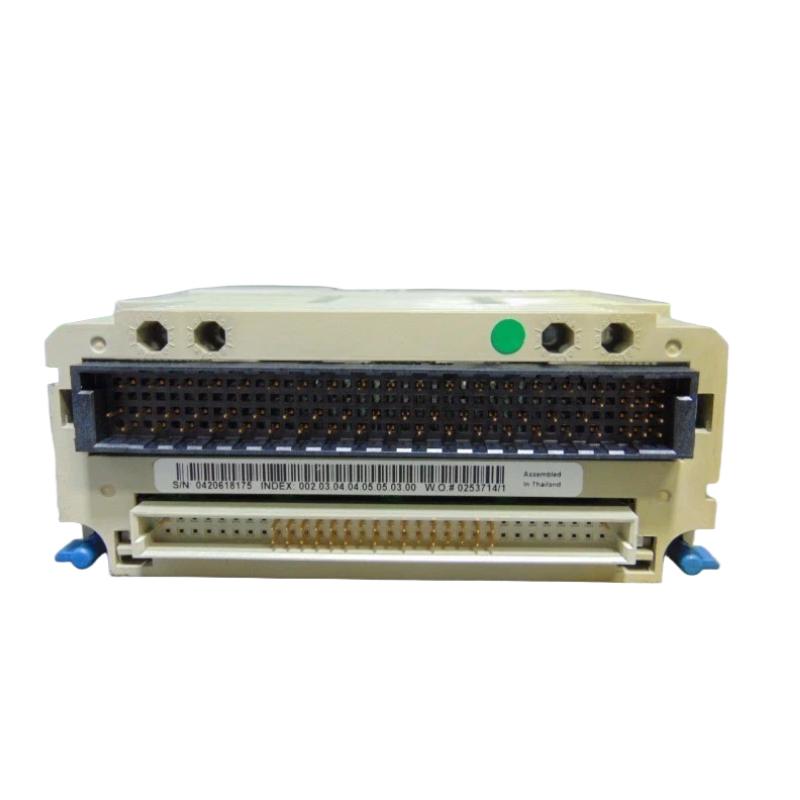

Ovation 1D54557G03 | Q‑Crate / Card Cage Module Hot Items Trusted supplier

Brand：Ovation DCS

Item No.：OVATION 1D54557G03

Product origin：USA

Dimensions:400 × 300 × 150 mm

Weight:3 kg

Formal channel supply, complete information can be checked, and supporting service guarantee

There are rich models in stock, which support quick docking of procurement needs. Welcome to inquire for details!

Product Introduction：

Overview
The Ovation 1D54557G03 is a card cage or backplane rack module used in the Emerson Ovation DCS system. It provides the mechanical frame and electrical backplane to hold and connect multiple Ovation I/O or interface modules.

General Information
Part Number: 1D54557G03

Manufacturer: Emerson

Brand / Country of Origin: Emerson / USA

Series: Ovation System Accessories

Type: Card Cage / Backplane Rack Module

Mounting: Installed in control cabinet to hold plug-in modules

Technology: Passive backplane with slot carriers for modular I/O and interface cards

Power Specifications
Backplane Voltage: 24 V DC for module power distribution

Power Consumption: Minimal; provides power and signal routing for inserted modules

Protection: Backplane isolation and chassis grounding for safety

Indicators: None (passive module)

Communication & Interface
Backplane Interface: Standard Ovation bus to distribute power and data to installed cards

Supported Modules: Analog I/O, digital I/O, communication modules, controller interface cards

Diagnostics: Not applicable (passive infrastructure module)

Configuration: No configuration required; operates as part of rack assembly

I/O & Channels
Relay Channels: None

External Load Support: None; serves as mechanical and electrical backbone only

Environmental
Operating Temperature: 0 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Suitable for protected indoor control cabinets

Dimensions & Weight
Dimensions (L × W × H): Approx. 400 × 300 × 150 mm

Weight: ~3.0 kg
