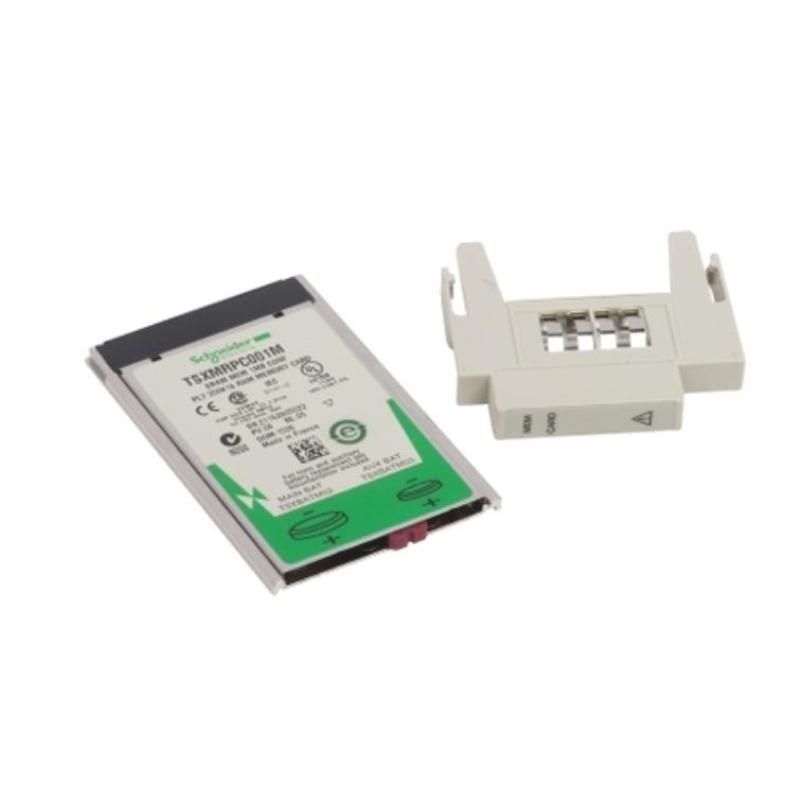

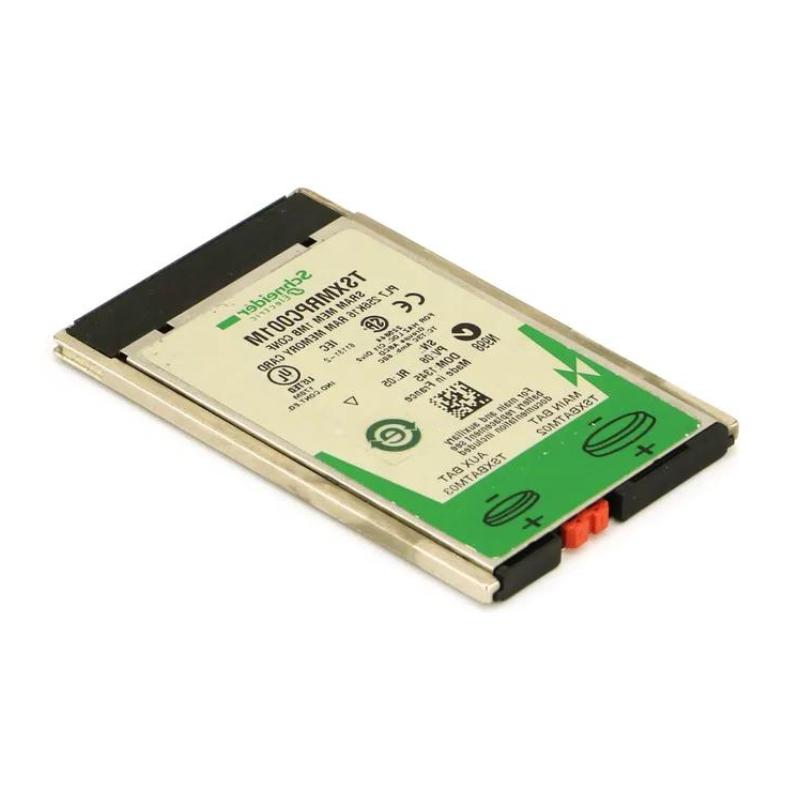

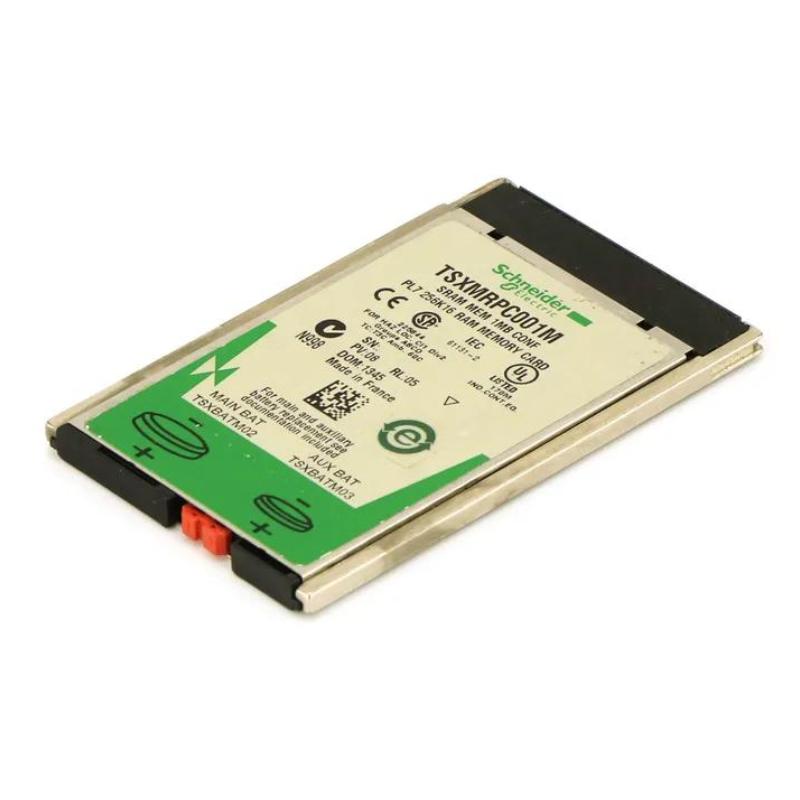

Schneider TSXMRPC001M | Configurable SRAM Application Memory Expansion Module Original 12-Month Warranty

Brand：Schneider PLC

Item No.：Schneider TSXMRPC001M

Product origin：France

Dimensions:26 × 91 × 132 mm

Weight:0.076 kg

Compliant import, support for cooperation testing, and fast response to after-sales service

The model covers a wide range and the delivery is efficient. Welcome to contact us for information!

Product Introduction：

Overview
The Schneider TSXMRPC001M is a configurable SRAM memory expansion module designed to extend the memory capacity of programmable logic controllers (PLCs). It provides additional memory resources to handle complex applications and support real-time data processing in industrial automation systems.

General Information
Brand: Schneider
Country of Origin: France
Part Number: TSXMRPC001M
Type: SRAM Application Memory Expansion Module

Power Specifications
Supply Voltage: 5 V DC
Power Consumption: ≤ 0.5 W
Output Power: N/A (Memory module does not generate output power)
Indicators: None

Communication & Interface
I/O Type: Memory expansion
Interface: Plug-and-play interface with supported PLCs
Diagnostics: Memory status monitoring through the PLC interface

Environmental
Operating Temperature: −10 to +60 °C
Humidity: Up to 95% RH, non-condensing

Dimensions & Weight
Dimensions (L × W × H): 26 × 91 × 132 mm
Weight: 0.076 kg
