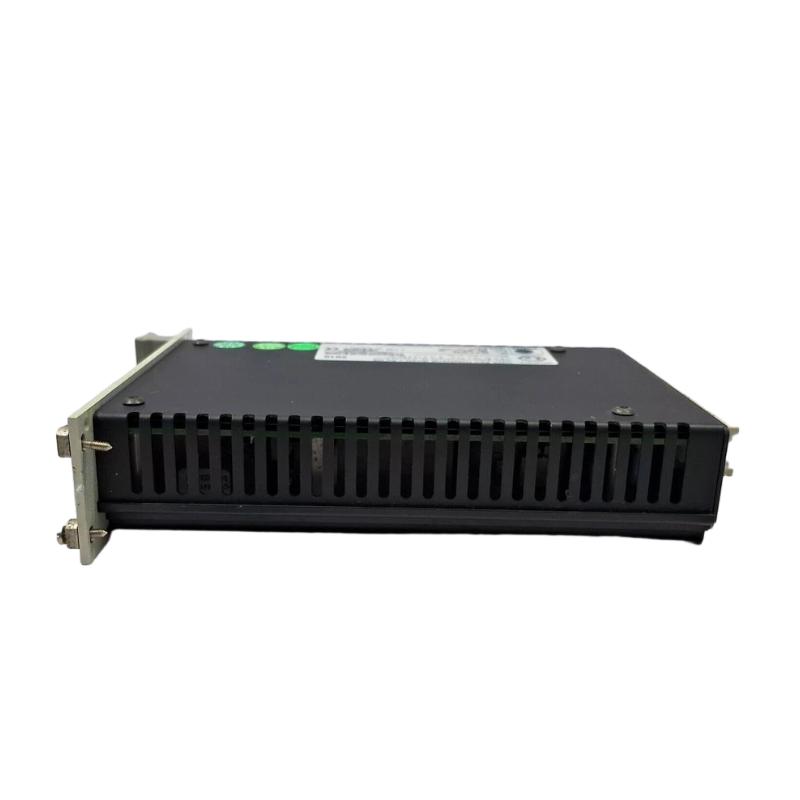

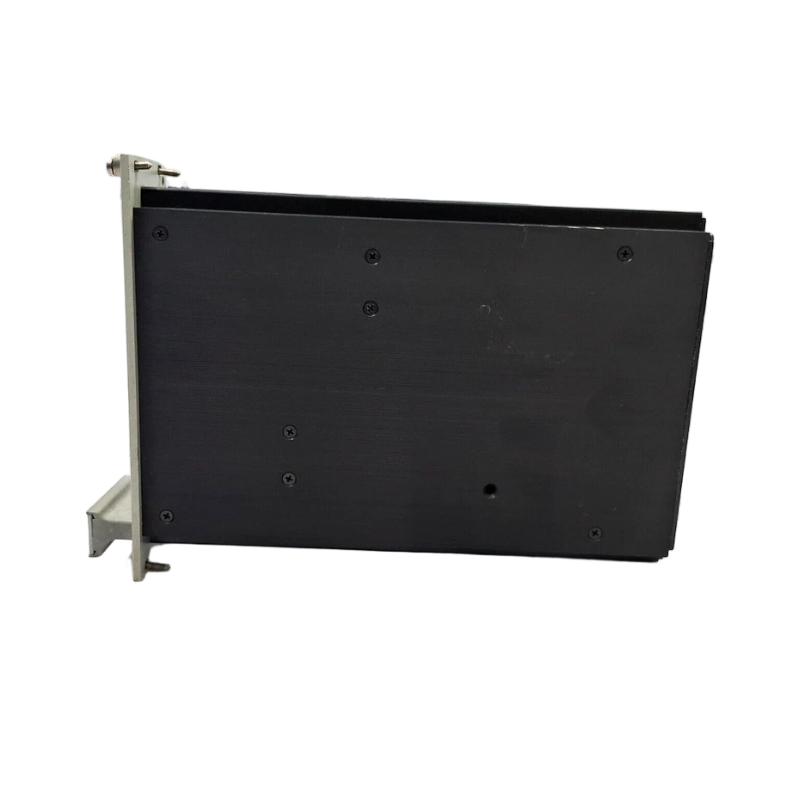

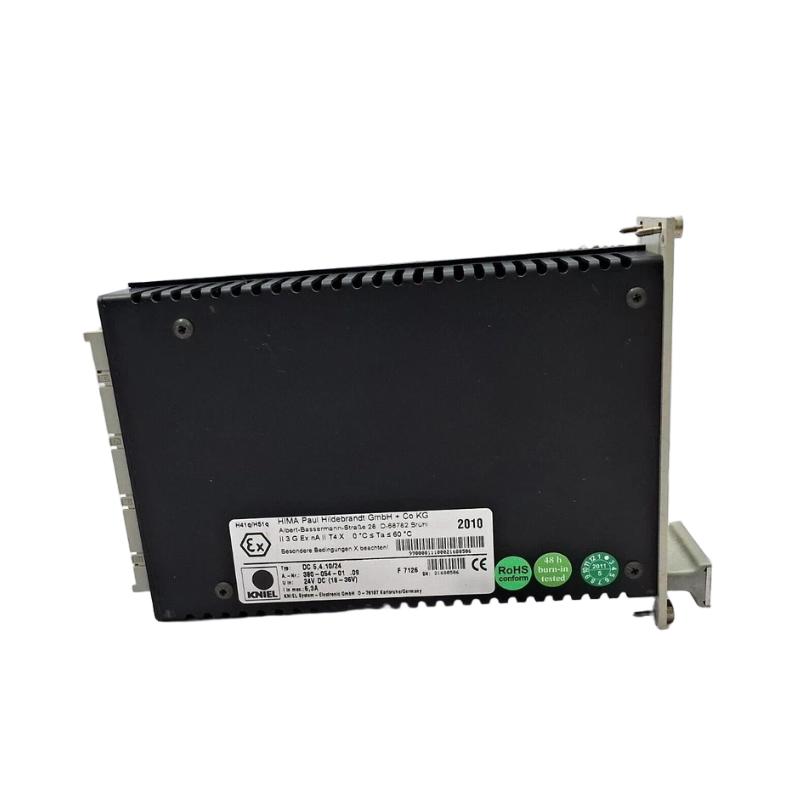

HIMA F7126A | Discrete Input Module 100% New Trusted supplier

Brand：Hima DCS Modules

Item No.：HIMA F7126A

Product origin：Germany

Dimensions:160 × 20 × 125 mm

Weight:0.25 kg

Formal channels, complete test instructions, and responsive services

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product Introduction：

Overview
The HIMA F7126A is a discrete input module designed for HIMax and HIQuad safety instrumented systems. It provides secure and reliable digital signal acquisition from field devices such as switches, contacts, and sensors, ensuring accurate monitoring for safety-critical applications.

General Information
Part Number: F7126A
Manufacturer: HIMA
Brand / Country of Origin: HIMA / Germany
Series: HIMax / HIQuad
Type: Discrete Input Module
Mounting: Installed on HIMA rack or baseplate system
Technology: Safety-certified digital input with channel isolation and diagnostic monitoring

Power Specifications
Supply Voltage: 24 V DC (via system backplane)
Power Consumption: ≤ 6 W
Power Source: Redundant backplane supply supported
Protection: Short-circuit protection, surge suppression, and channel isolation
Indicators: LEDs for channel status, module health, and fault

Communication & Interface
Input Type: Discrete digital signals (dry contacts or voltage input)
Channel Count: Typically 16 isolated input channels
Diagnostics: Open-circuit detection, abnormal signal monitoring, and self-test functions
Configuration: Managed through HIMA engineering and safety configuration tools
Reset Options: Software reset supported via system controller

Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for protected industrial control cabinet installation

Dimensions & Weight
Dimensions (L × W × H): Approx. 160 × 20 × 125 mm
Weight: ~0.25 kg
