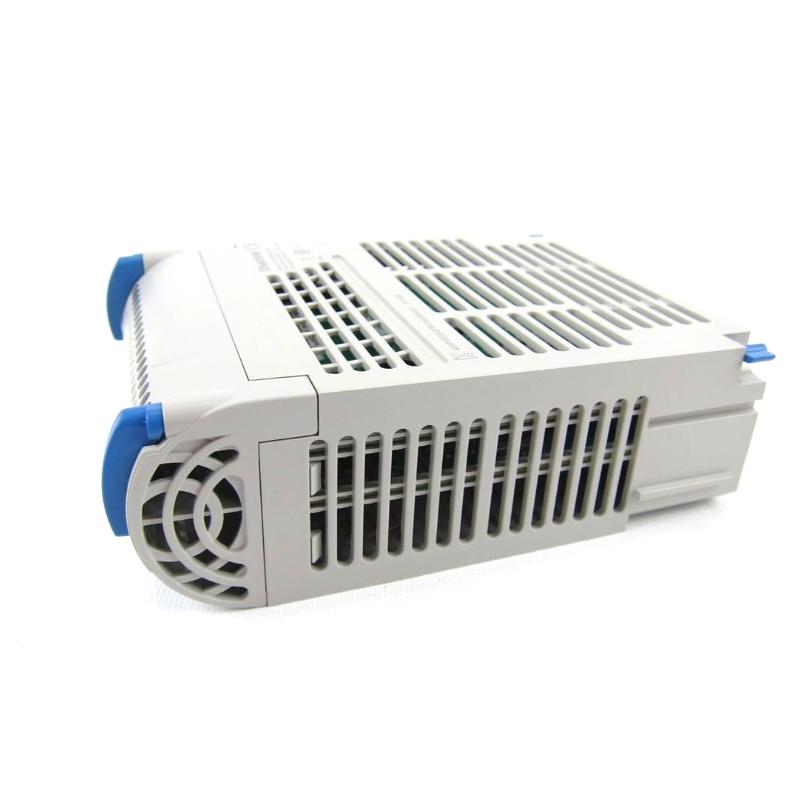

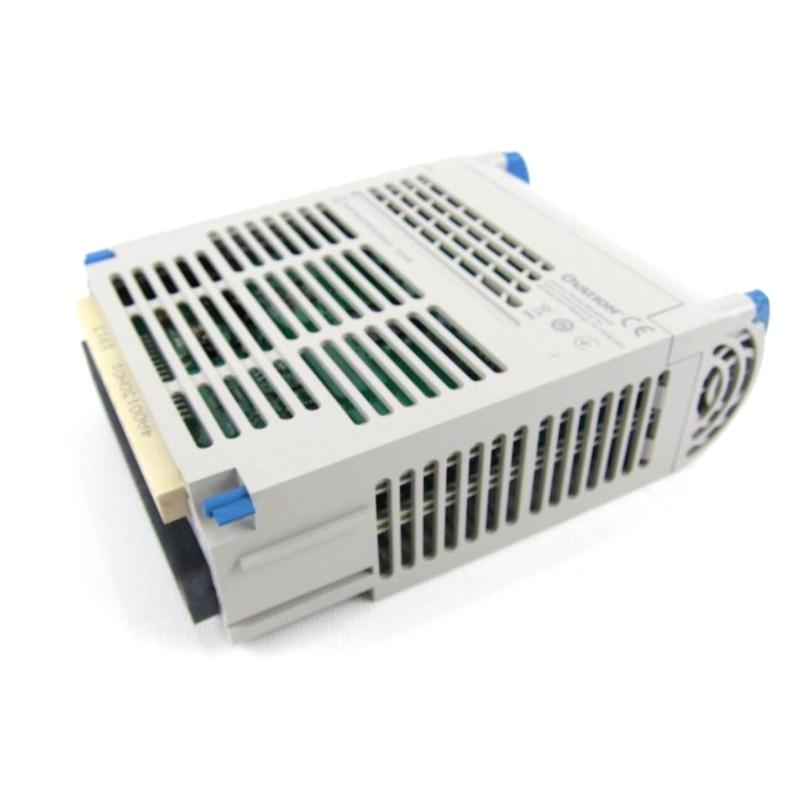

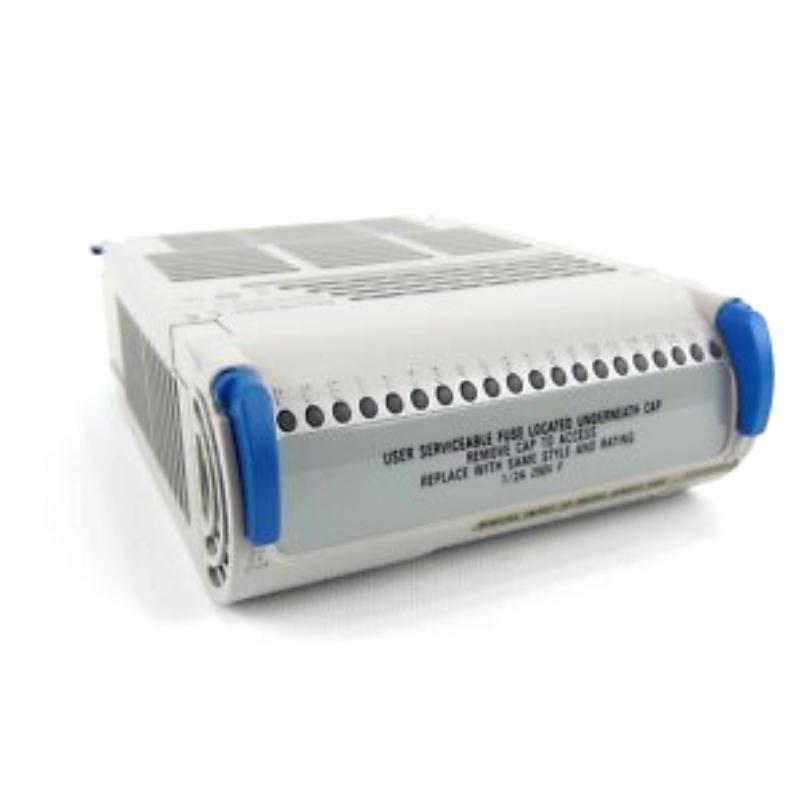

OVATION 1X00055H01 | Media Converter Chassis Rave reviews Original

Brand：Ovation DCS

Item No.：OVATION 1X00055H01

Product origin：USA

Dimensions:400 × 300 × 150 mm

Weight:3 kg

Regular supply, testing instructions can be coordinated, and after-sales service continues to follow up

A wide range of spot models, support for quick docking of purchasing needs, welcome to inquire!

Product Introduction：

Overview
The Ovation 1X00055H01 is a chassis or mounting kit intended for use with media converter modules in the Ovation DCS system. It provides the proper mechanical housing and backplane mounting support for converter modules, enabling stable and organized installation within the control cabinet.

General Information
Part Number: 1X00055H01
Manufacturer: Emerson
Brand / Country of Origin: Emerson / USA
Type: Media Converter Chassis / Mounting Kit
Series: Ovation System Accessories / Infrastructure
Mounting: Installed in an Ovation control cabinet or rack, designed to accept and secure media converter modules
Technology: Passive chassis/backplane mount providing mechanical support and electrical backplane connectivity for converter modules

Power Specifications
Backplane Power Distribution: Provides required 24 V DC (and other module supply voltages) to mounted converter modules
Power Consumption: Minimal (chassis itself does not consume power)
Protection: Chassis provides proper grounding, isolation and mechanical integrity for mounted modules
Indicators: None (passive chassis)

Communication & Interface
Function: Hosts media converter modules — enabling copper-to-fiber or fiber-to-copper network signal conversion when modules are installed
Backplane Interface: Standard Ovation backplane connectors for power and data routing to each inserted converter module
Supported Modules: Media converter cards compatible with Ovation 1X00055H01 chassis; supports proper alignment, insertion, and connectivity within the system rack
Diagnostics: Not applicable for chassis itself; diagnostics depend on installed converter module
Configuration: No configuration needed for chassis; installation only

I/O & Channels
Relay Channels: None
External Load Support: None — chassis is structural / infrastructural only, not an active signal module

Environmental
Operating Temperature: 0 to +60 °C (typical industrial cabinet ambient)
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for indoor control cabinet installation, within a protected environment

Dimensions & Weight
Dimensions (L × W × H): Approx. 400 × 300 × 150 mm
Weight: ~3.0 kg
