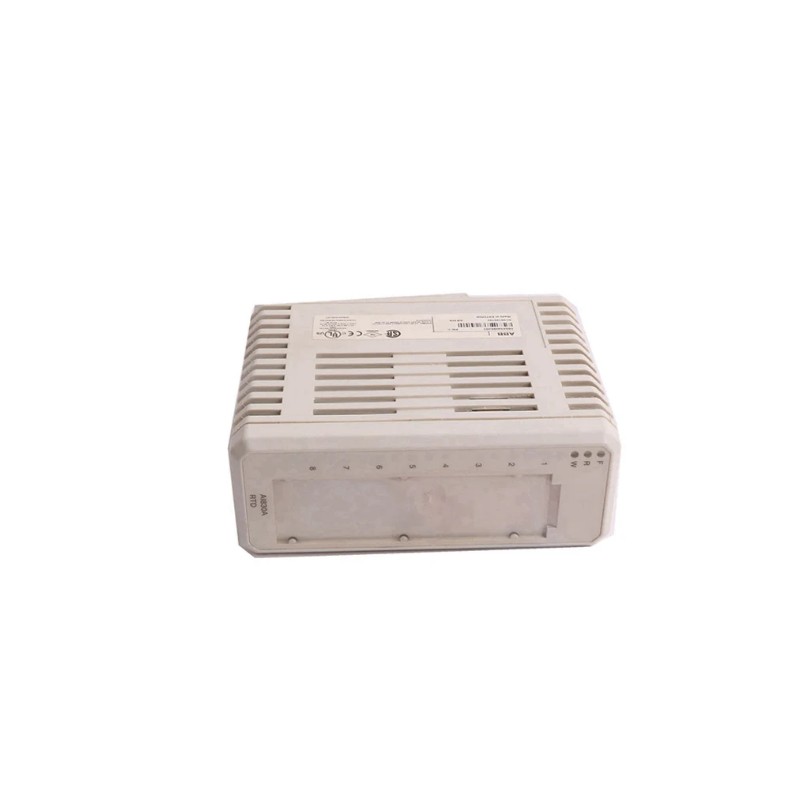

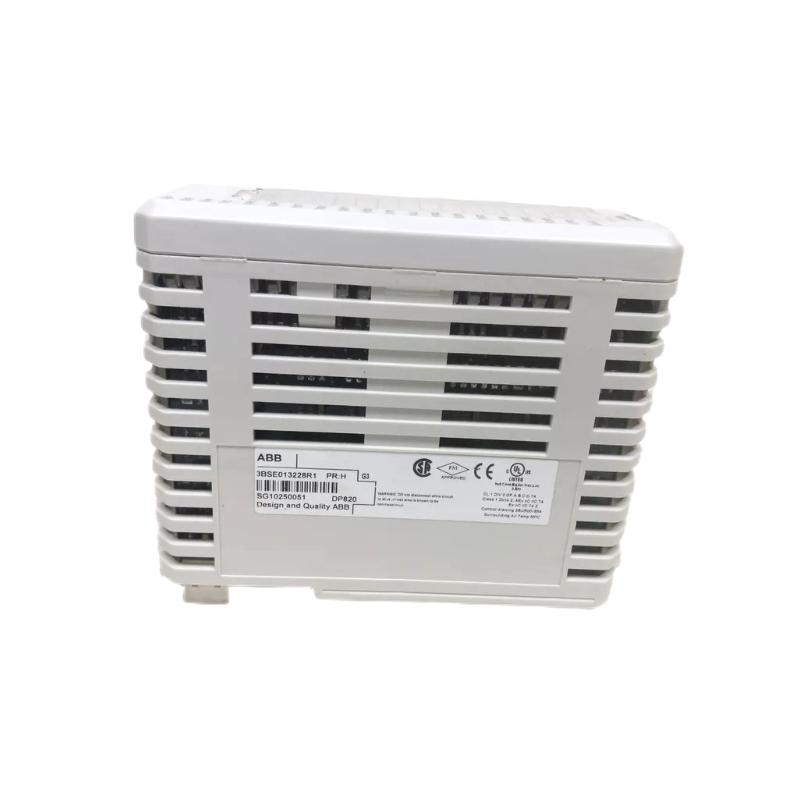

ABB DP820 3BSE013228R1 | Pulse Counter 12-Month Warranty New In Stock

Brand：ABB PLC

Item No.：ABB DP820 3BSE013228R1

Product origin：Sweden

Dimensions:102 × 119 × 45 mm

Weight:0.3kg

The import process is standardized, testing is supported, and after-sales service is guaranteed

The stock volume is large, the series is diverse, and it is suitable for different working conditions. Please consult!

Product Introduction：

Overview
The ABB DP820 3BSE013228R1 is a high-performance pulse counter module designed for integration into ABB’s industrial automation systems. It is responsible for accurately counting pulses from various field devices such as encoders, flow meters, and other pulse-generating equipment. The DP820 module provides high-speed, precise pulse counting and real-time data processing, making it ideal for applications requiring fast and reliable pulse measurement. It is an essential component for systems that require accurate pulse counting and data collection in industrial processes.

General Information

Part Number: 3BSE013228R1

Manufacturer: ABB

Series: DP (Digital Processing)

Type: Pulse Counter Module

Mounting: DIN rail or rack-mounted installation

Technology: Pulse counting, real-time data processing, system integration

Brand / Country of Origin: ABB / Sweden

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Input: Powered from the system backplane

Protection: Surge protection, reverse-polarity protection

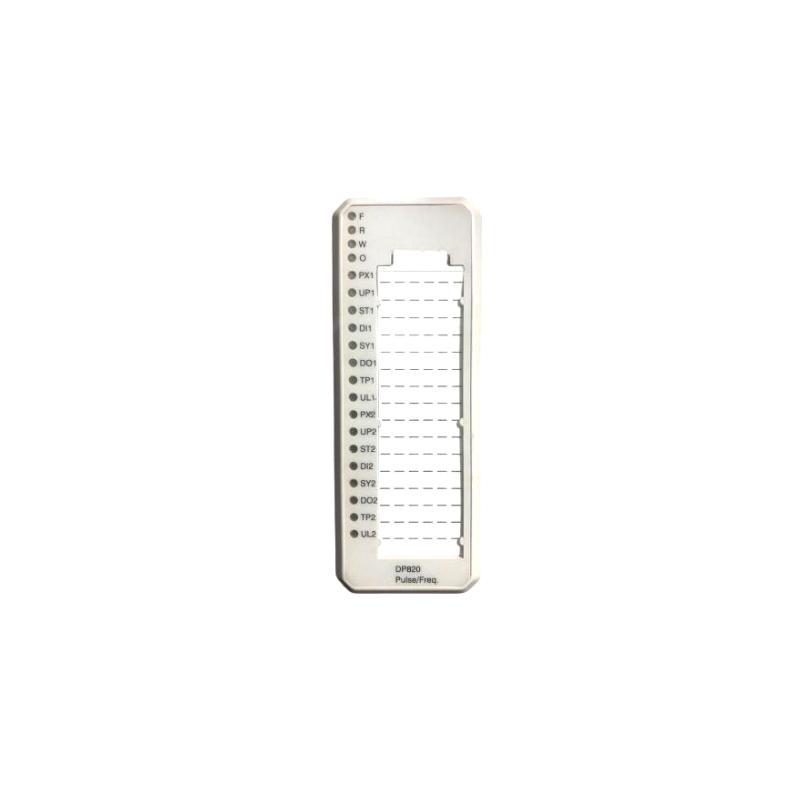

Indicators: LED indicators for power, pulse counting status, and system health

Communication & Interface

Communication Ports: Integrated with the system backplane for communication with the central processing unit

Diagnostic Features: Real-time diagnostics, fault detection, and system health monitoring

Input Features: Accepts pulse signals from encoders, flow meters, or other pulse-generating devices

Output Features: Provides pulse count data for further processing or display

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for installation in control cabinets)

Dimensions & Weight

Dimensions (L × W × H): 102 × 119 × 45 mm

Weight: 0.3 kg

The product has a cost-effective advantage, timely supply, and a large quantity has a step-by-step discount space.
