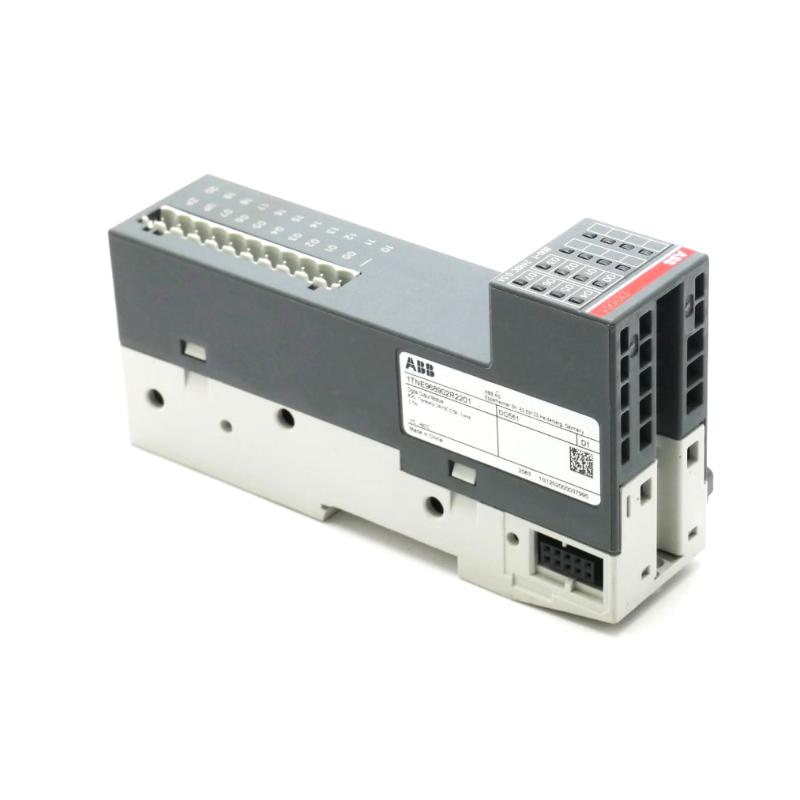

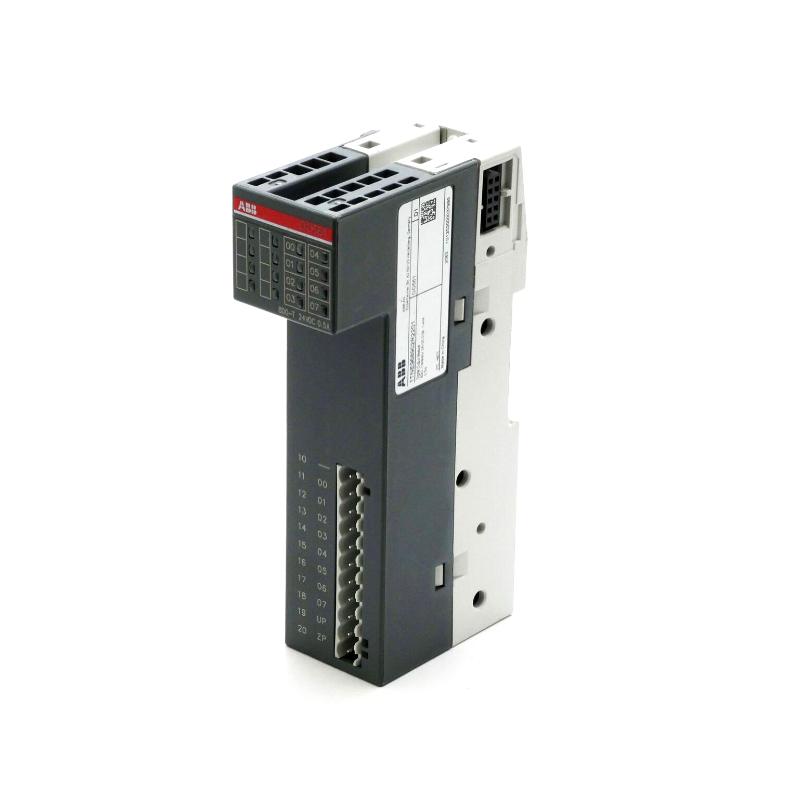

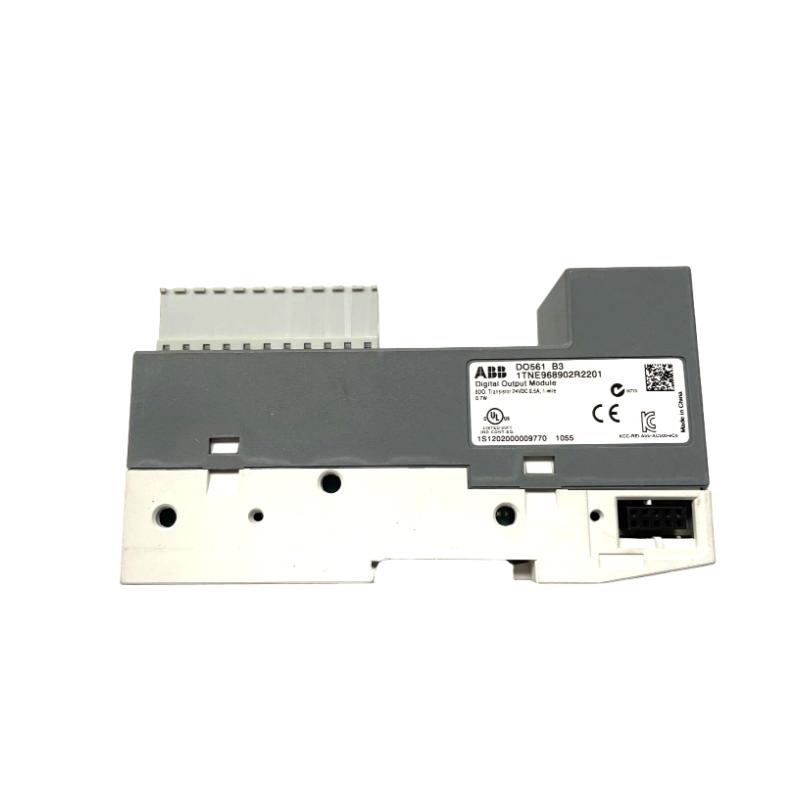

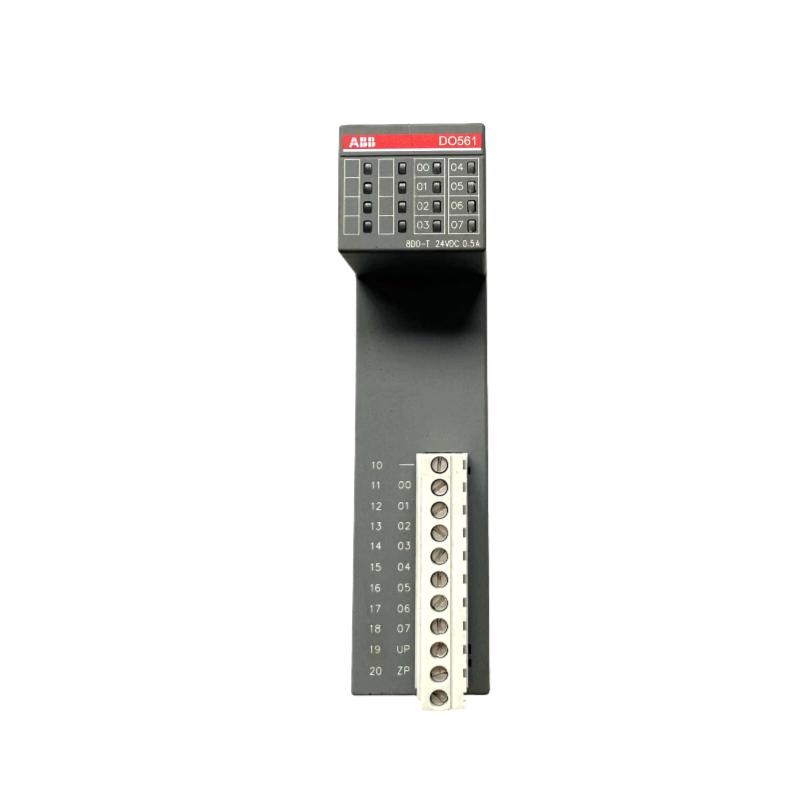

ABB DO561 1TNE968902R2201 | Digital Output Module Trusted supplier Trusted supplier

Brand：ABB PLC

Item No.：ABB DO561 1TNE968902R2201

Product origin：Sweden

Dimensions:93 × 63 × 170 mm

Weight:0.22kg

Original import channel supply, support testing instructions, worry-free after-sales

A wide range of spot models, support quick docking of procurement needs, welcome to inquire!

Product Introduction：

Overview
The ABB DO561 1TNE968902R2201 is a high-performance digital output module designed for use in ABB’s industrial automation systems. This module is responsible for driving digital output signals to control various field devices such as relays, solenoids, and on/off actuators. With its reliable and rapid switching capabilities, the DO561 is ideal for applications that require precise, real-time control of output devices. It is a crucial component in applications demanding accurate digital output for efficient automation processes.

General Information

Part Number: 1TNE968902R2201

Manufacturer: ABB

Series: DO (Digital Output)

Type: Digital Output Module

Mounting: DIN rail or rack-mounted installation

Technology: Digital signal output, real-time control, system integration

Brand / Country of Origin: ABB / Sweden

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Input: Powered from the system backplane

Protection: Surge protection, reverse-polarity protection

Indicators: LED indicators for power, output status, and system health

Communication & Interface

Communication Ports: Integrated with the system backplane for communication with the central processing unit

Diagnostic Features: Real-time diagnostics, fault detection, and system health monitoring

Output Features: Multiple digital outputs for controlling field devices such as relays, solenoids, and other on/off devices

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for installation in control cabinets)

Dimensions & Weight

Dimensions (L × W × H): 93 × 63 × 170 mm

Weight: 0.22 kg

This product is suitable for many types of applications, fast delivery, and bulk purchases support more cost-effective quotation methods.
