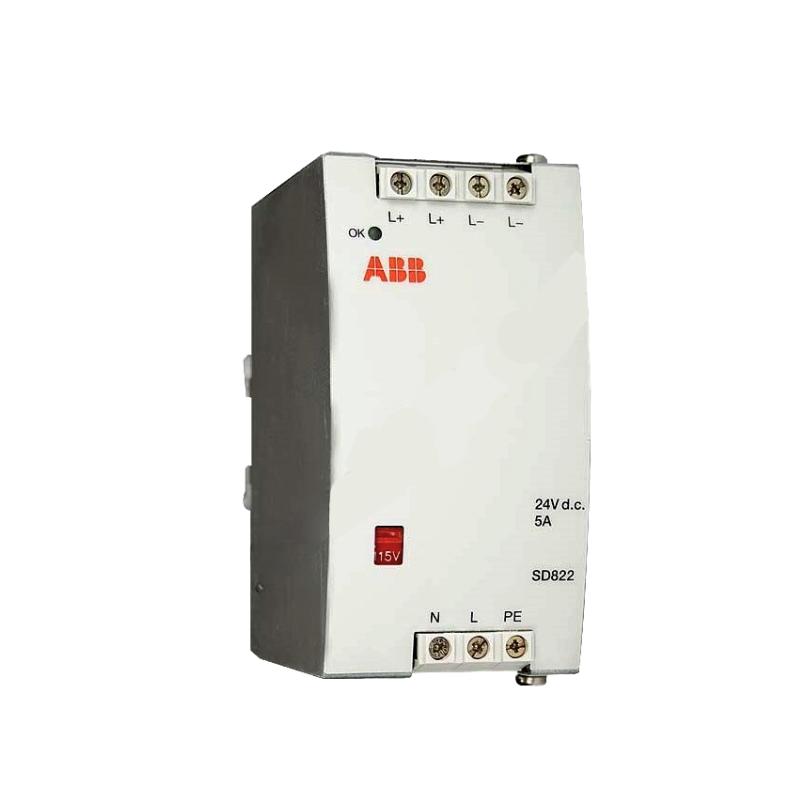

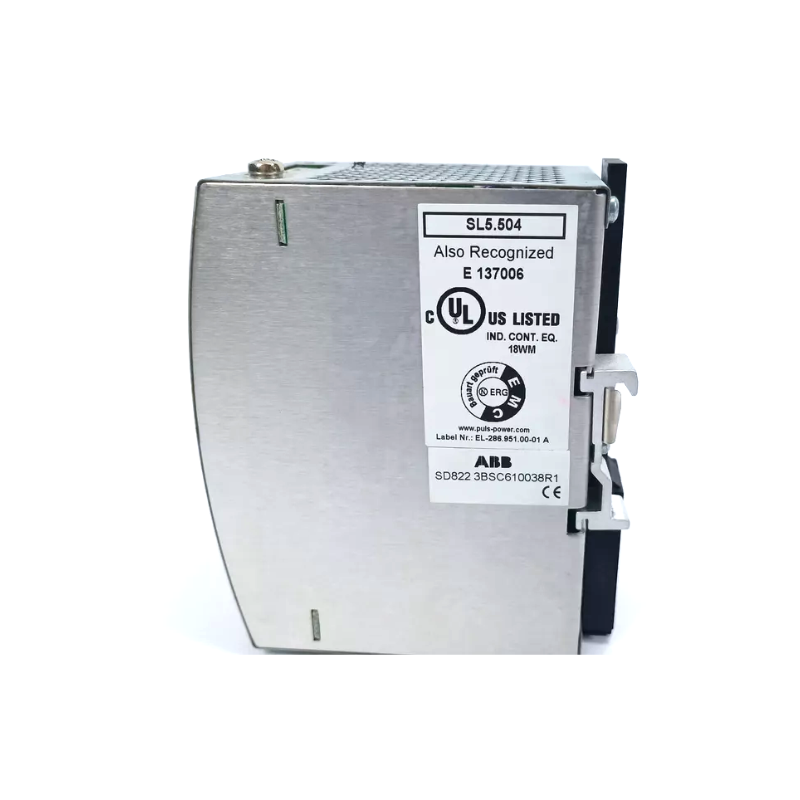

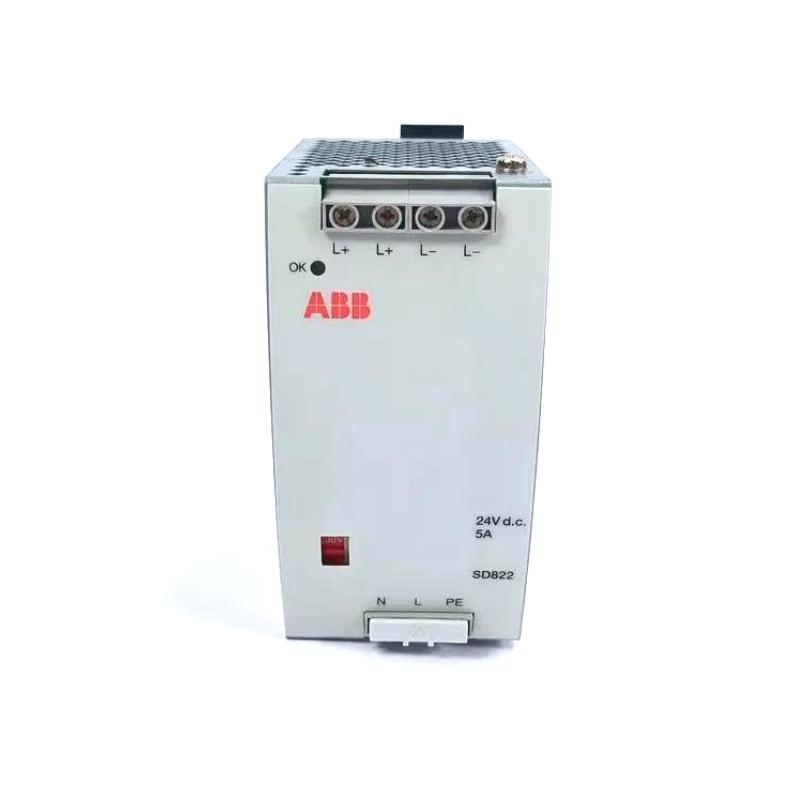

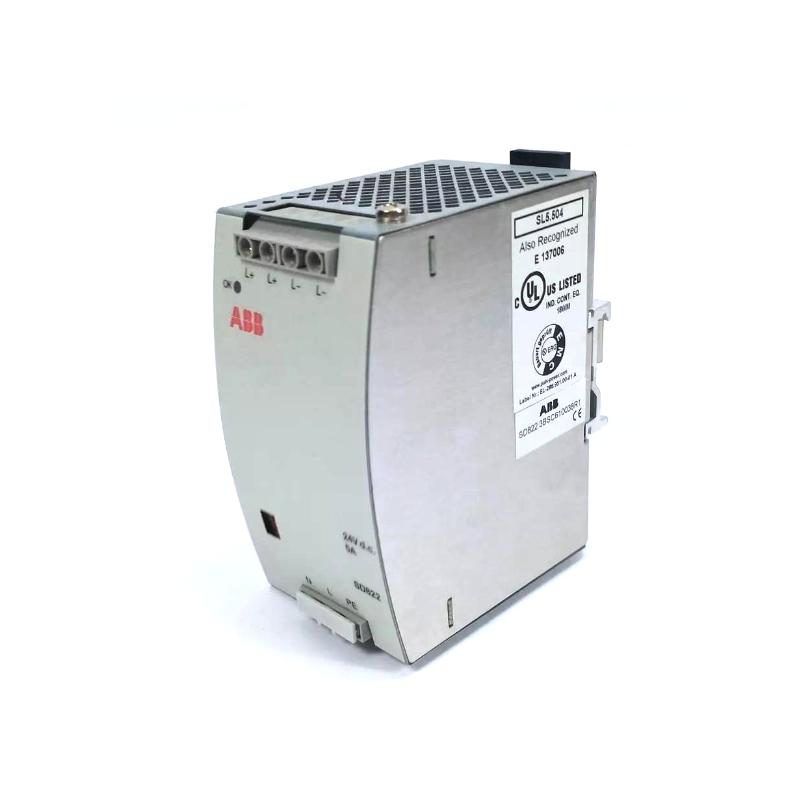

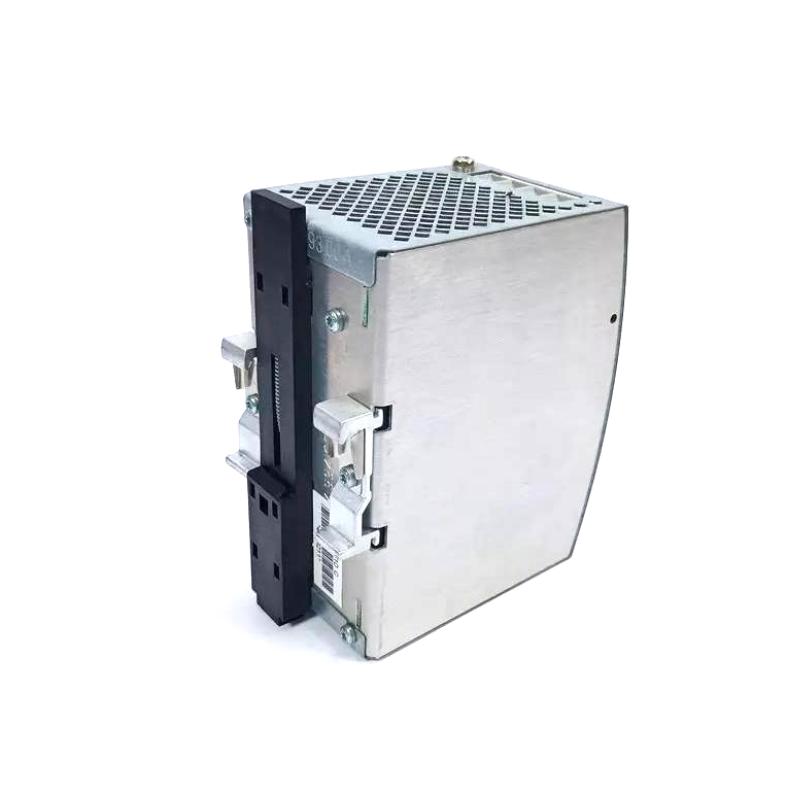

ABB SD822 3BSC610038R1 | Power Supply Module 12-Month Warranty 30-Day Returns！

Brand：ABB PLC

Item No.：ABB SD822 3BSC610038R1

Product origin：Sweden

Dimensions:63× 105 × 13 mm

Weight:3.0kg

Original source, data support test content, efficient after-sales processing

Sufficient inventory of tens of thousands of models, fast delivery from stock, welcome to consult!

Product Introduction：

Overview
The ABB SD822 3BSC610038R1 is a power supply module designed for integration into ABB's industrial automation systems. This module ensures reliable and stable power delivery to all connected components, providing the necessary voltage for efficient operation. The SD822 module converts AC input power into a regulated DC output, making it suitable for a wide range of industrial applications. It is essential for systems requiring continuous power supply to maintain operational stability, prevent downtime, and support smooth process control.

General Information

Part Number: 3BSC610038R1

Manufacturer: ABB

Series: SD (Power Supply)

Type: Power Supply Module

Mounting: DIN rail or rack-mounted installation

Technology: Power conversion, voltage regulation, energy efficiency

Brand / Country of Origin: ABB / Sweden

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Input Voltage Range: 100-240 V AC

Output Voltage: 24 V DC

Protection: Overvoltage, overload, short-circuit, and reverse-polarity protection

Indicators: LED indicators for power status, input/output voltage, and system health

Communication & Interface

Communication Ports: Integrated with the system backplane for communication with the central processing unit

Diagnostic Features: Real-time diagnostics, fault detection, and system health monitoring

Input Features: Accepts AC input and provides stable DC output for powering control systems

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for installation in control cabinets)

Dimensions & Weight

Dimensions (L × W × H): 63× 105 × 13 mm

Weight: 3.0 kg

This product can quickly allocate inventory, fast delivery, and batch cooperation supports supporting discounts.
