Product Introduction：

Overview

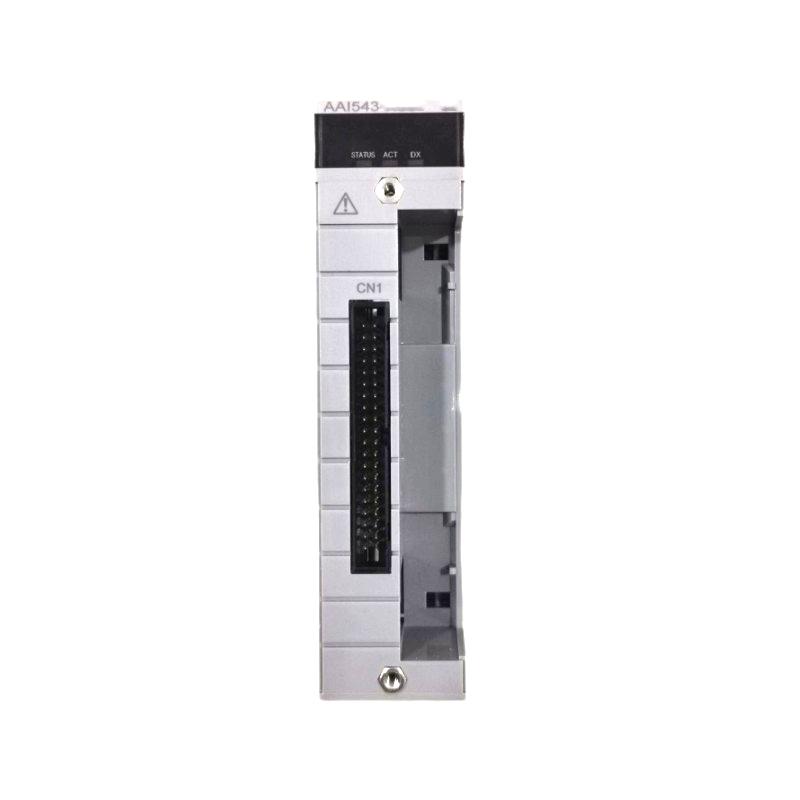

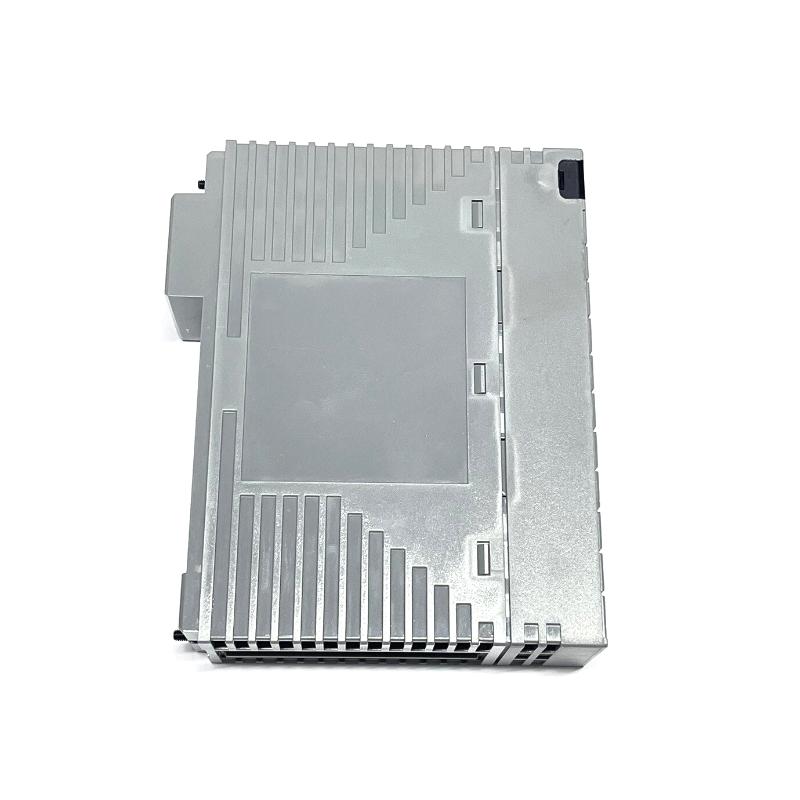

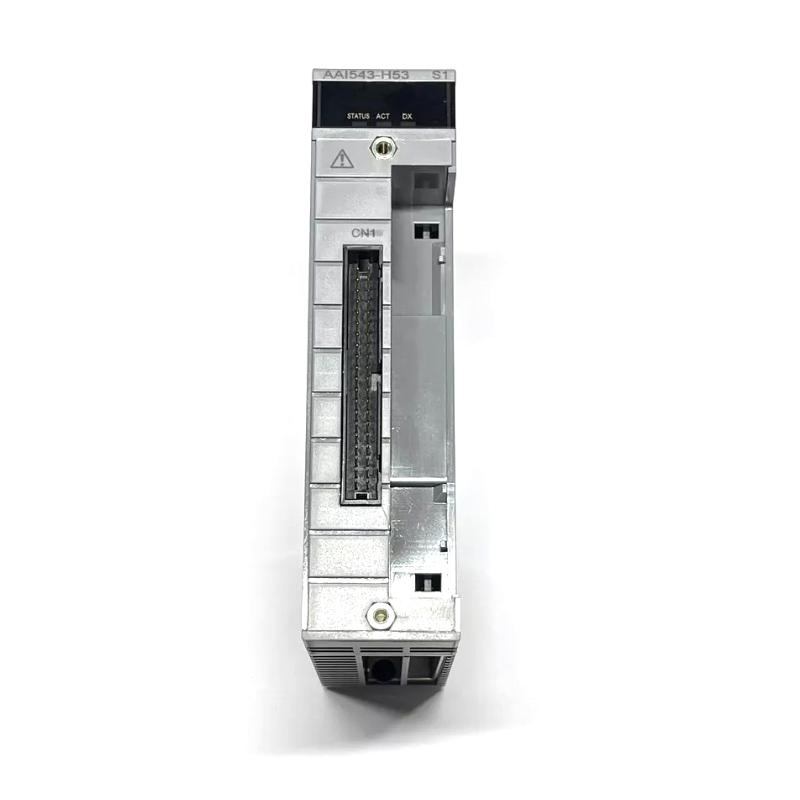

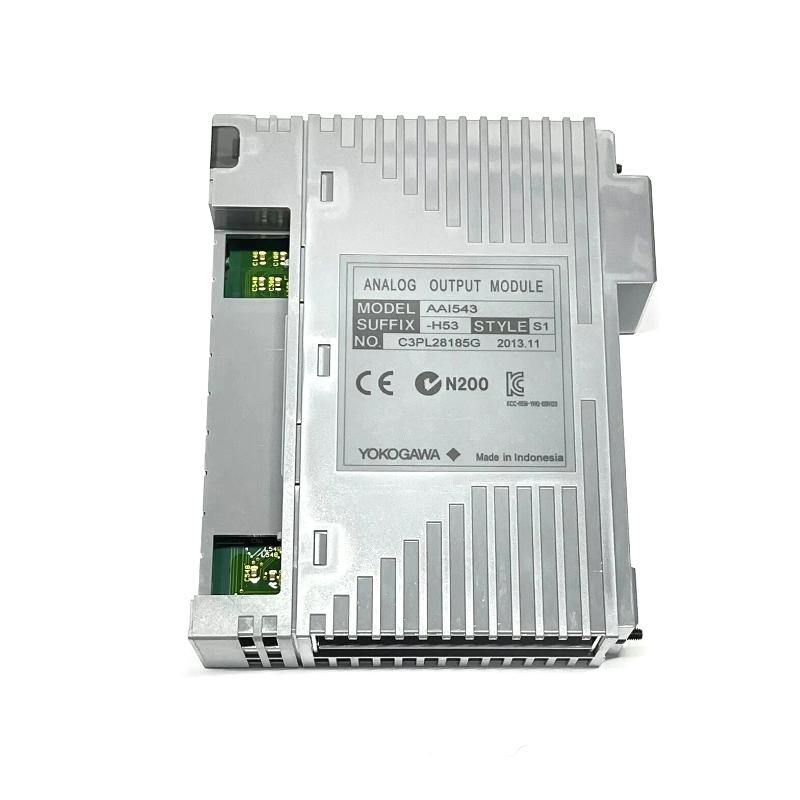

The Yokogawa AAI543-S50/A4S10 is a 16-channel isolated analog output module designed for Yokogawa DCS systems. It delivers accurate 4–20 mA DC output signals to control field devices such as valves and actuators.

General Information

Manufacturer: Yokogawa Electric Corporation

Origin: Japan

Model Number: AAI543

Suffix: S50/A4S10

Type: Analog Output Module

Function: 16-channel isolated 4–20 mA analog output

Applications: Process control, industrial automation, instrumentation systems

Electrical Specifications

Number of Channels: 16

Output Signal: 4–20 mA DC

Allowable Load Resistance: 0–750 Ω

Circuit-Open Detection: Below 0.65 mA

Accuracy: ±48 µA

Data Update Period: 10 ms

Withstanding Voltage: 1500 V AC between output and system for 1 minute

Power Supply Voltage: 19–25.5 V DC

Environmental Specifications

Operating Temperature Range: −20°C to +60°C

Storage Temperature Range: −40°C to +70°C

Relative Humidity: Up to 95%, non-condensing

Protection Rating: IP20

Installation Environment: Standard industrial control cabinet

Dimensions & Weight

Dimensions (L × W × H): 107.5 × 32.8 × 130 mm

Weight: 0.4 kg
