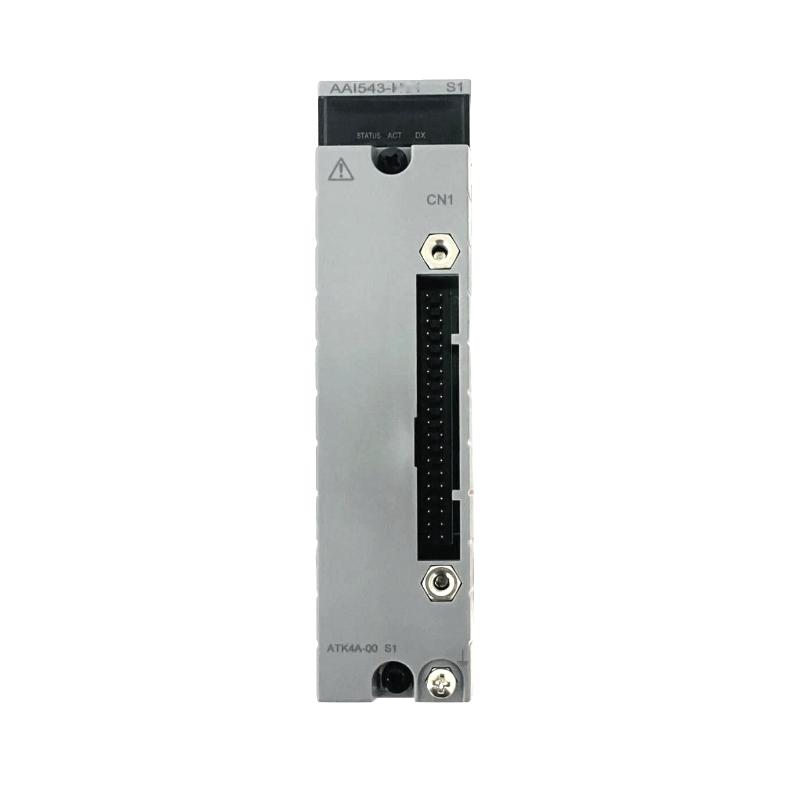

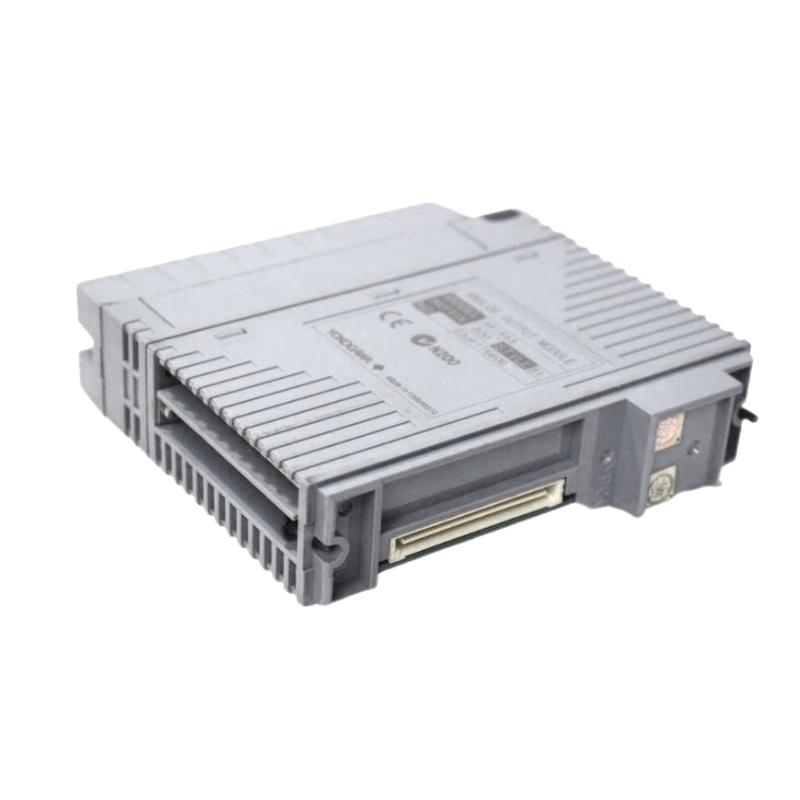

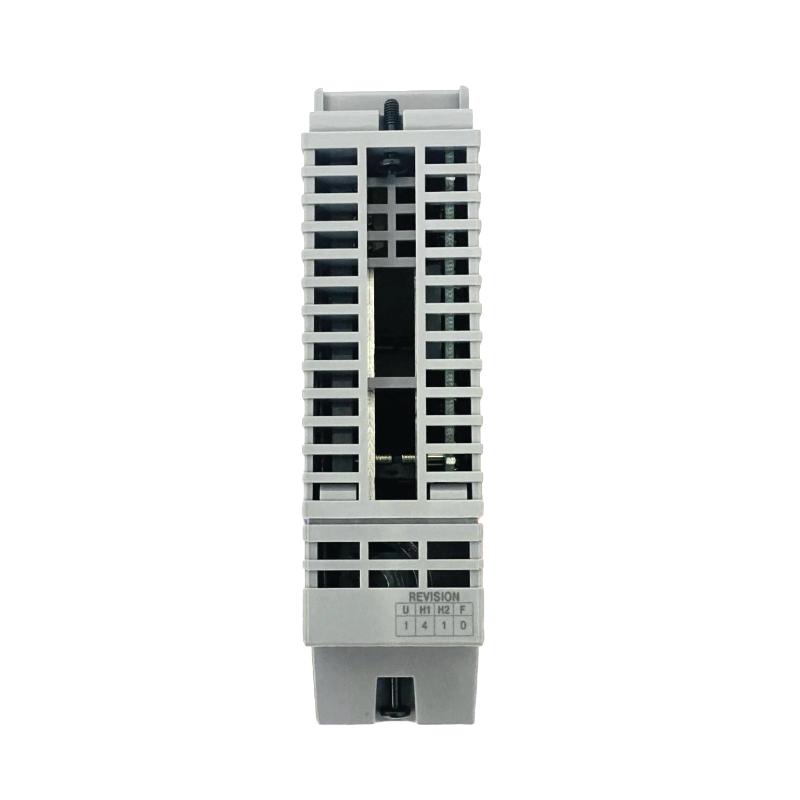

Yokogawa AAI543-S50/K4A00 Analog Output Module Quality Selection 30-Day Returns！

Brand：Yokogawa Electric

Item No.：Yokogawa AAI543-S50/K4A00

Product origin：Japan

Dimensions:107.5 × 32.8 × 130 mm

Weight:0.4 kg

The source of goods is regular, the test instructions can be coordinated, and the after-sales service continues to follow up

Tens of thousands of models are in sufficient stock, and the spot is shipped quickly. Welcome to consult!

Product Introduction：

Overview

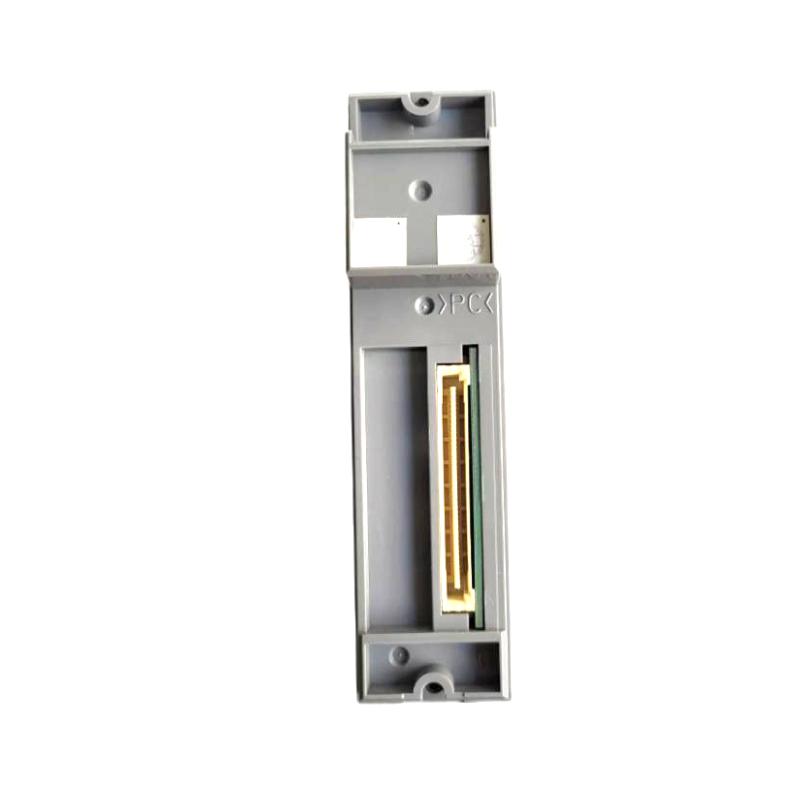

The Yokogawa AAI543-S50/K4A00 is a 16-channel isolated analog output module designed for Yokogawa’s CENTUM VP and CS 3000 DCS platforms. It offers reliable 4–20 mA DC output signals and supports simplified wiring via the KS cable interface adapter.

General Information

Manufacturer: Yokogawa Electric Corporation

Origin: Japan

Model Number: AAI543

Suffix: S50/K4A00

Type: Analog Output Module

Function: Provides 16 isolated 4–20 mA output channels

Applications: Process control, industrial automation systems

Electrical Specifications

Number of Output Channels: 16

Output Signal: 4–20 mA DC

Allowable Load Resistance: 0–750 Ω

Circuit-Open Detection: Less than 0.65 mA

Accuracy: Approximately ±48 µA

Data Update Period: 10 ms

Withstanding Voltage: Between output and system: 1500 V AC for 1 minute; with KS cable: 500 V AC for 1 minute

Maximum Current Consumption: 230 mA (5 V DC), 540 mA (24 V DC)

Supply Voltage: 19.0–25.5 V DC (at 20 mA output)

Environmental Specifications

Operating Temperature Range: −20 °C to +60 °C

Protection Rating: IP20

Weight: 0.4 kg

Dimensions & Weight

Dimensions (L × W × H): 107.5 × 32.8 × 130 mm

Weight: 0.4 kg
