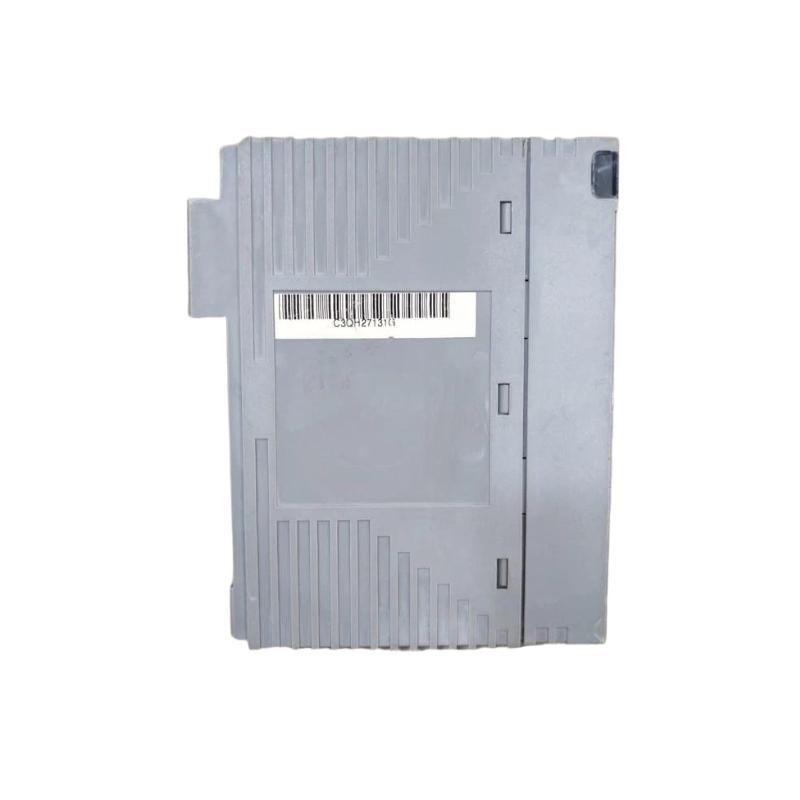

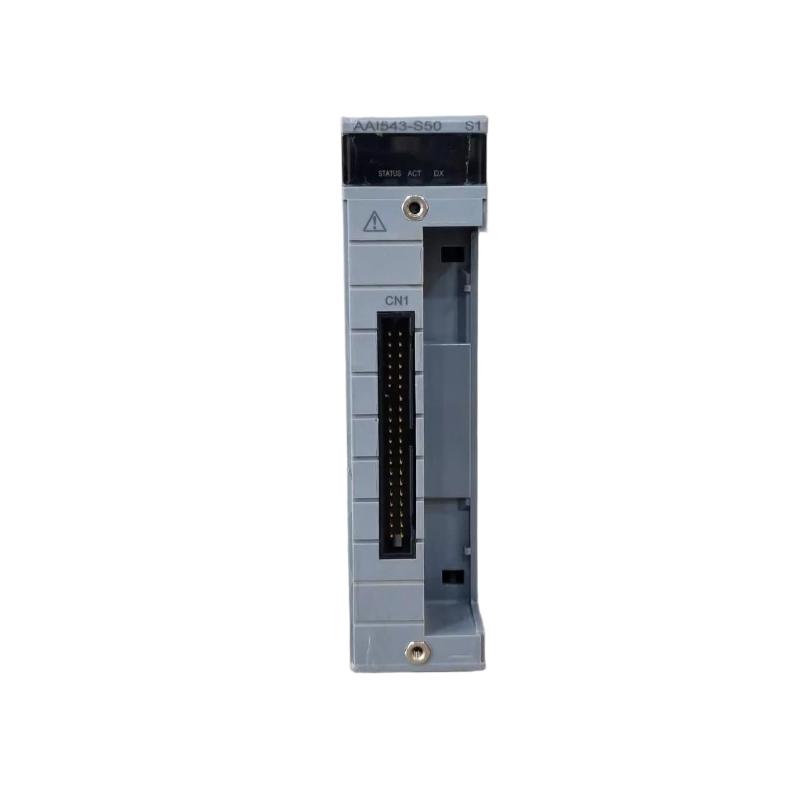

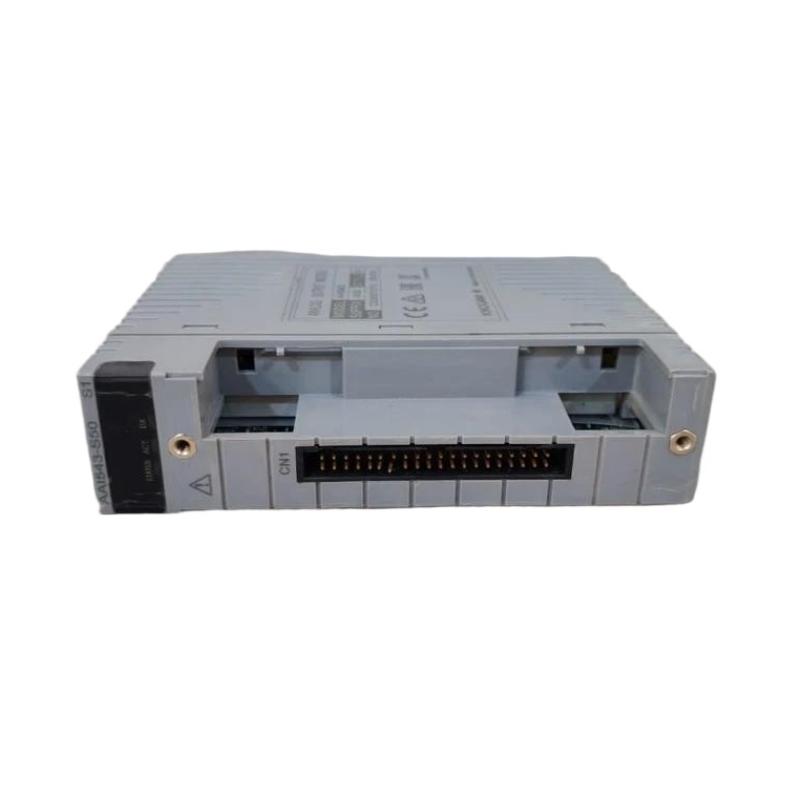

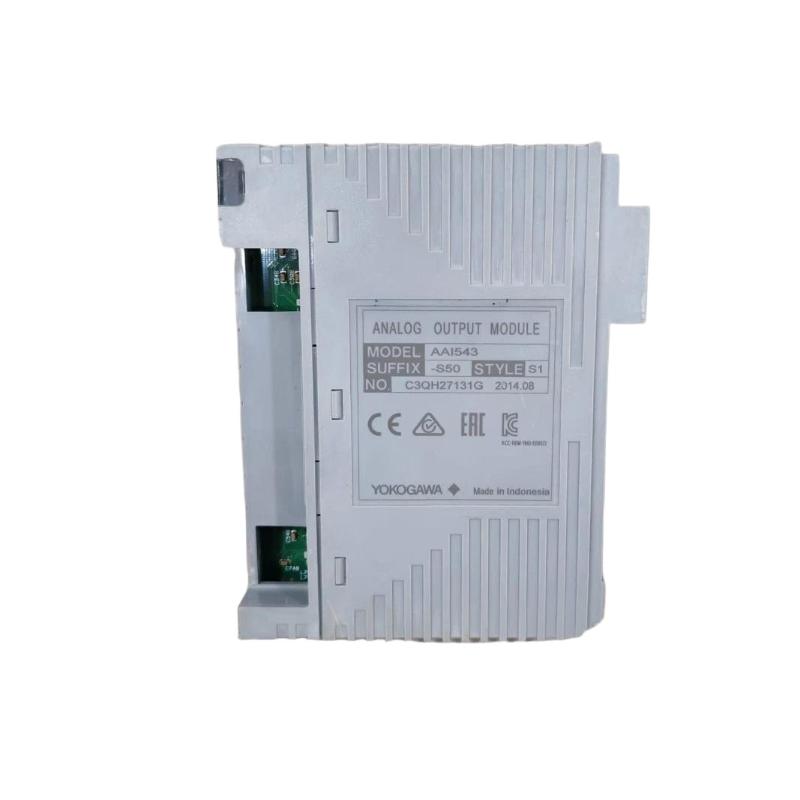

Yokogawa AAI543-S50 S1 Analog Output Module Efficient delivery Trusted supplier

Brand：Yokogawa Electric

Item No.：Yokogawa AAI543-S50 S1

Product origin：Japan

Dimensions:107.5 × 32.8 × 130 mm

Weight:0.4 kg

Compliant import, support for cooperation testing, and fast response to after-sales service

Tens of thousands of models are in stock, and spot delivery is fast. Welcome to consult!

Product Introduction：

Overview
The Yokogawa AAI543-S50 S1 is a 16-channel analog output module designed for Yokogawa's CENTUM VP Distributed Control System (DCS). It provides isolated 4–20 mA DC output signals, ensuring precise control of field devices such as actuators and control valves.

General Information

Manufacturer: Yokogawa Electric Corporation

Origin: Japan

Model Number: AAI543

Suffix: S50 S1

Type: Analog Output Module

Function: Provides 16 isolated 4–20 mA output channels

Applications: Industrial automation, process control systems

Electrical Specifications

Output Channels: 16

Output Signal: 4–20 mA DC

Accuracy: ±0.1% of span

Allowable Load Resistance: 0–750 Ω

Withstanding Voltage: 1500 V AC between output and system for 1 minute

Isolation: Channel-to-channel and channel-to-system

Data Update Period: 10 ms

Maximum Current Consumption: 230 mA (5 V DC), 540 mA (24 V DC)

Supply Voltage: 19.0–25.5 V DC (at 20 mA output)

Environmental Specifications

Operating Temperature Range: −10°C to +70°C

Protection Rating: IP20

Conformal Coating: Yes, for protection against dust and moisture

Dimensions & Weight

Dimensions (L × W × H): 107.5 × 32.8 × 130 mm

Weight: 0.4 kg

100% new and unused inventory, always in stock and backed by quick assistance.

This product can quickly allocate inventory, fast delivery, and batch cooperation supports supporting discounts.
