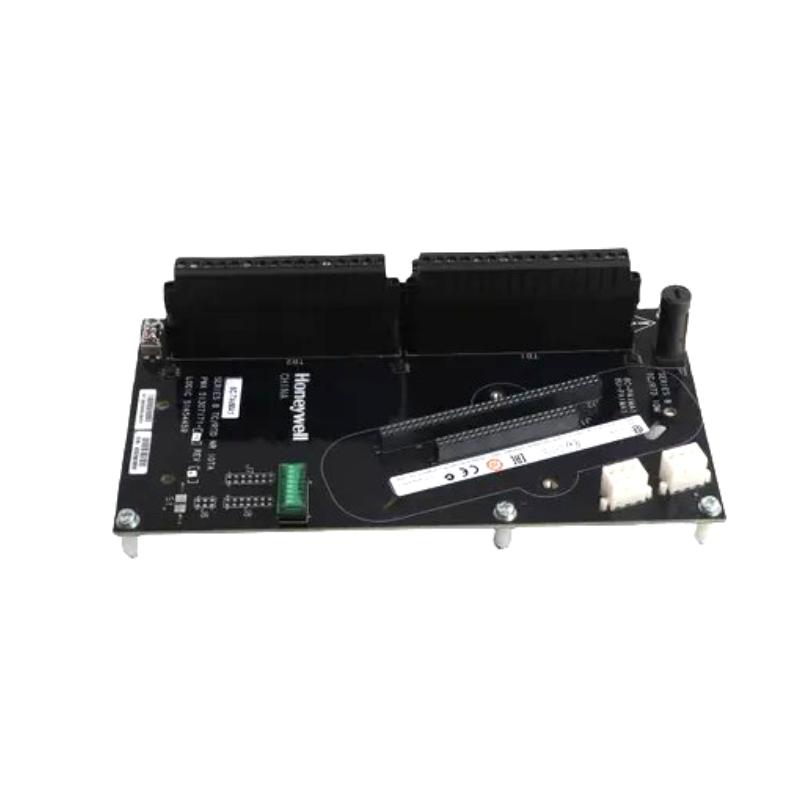

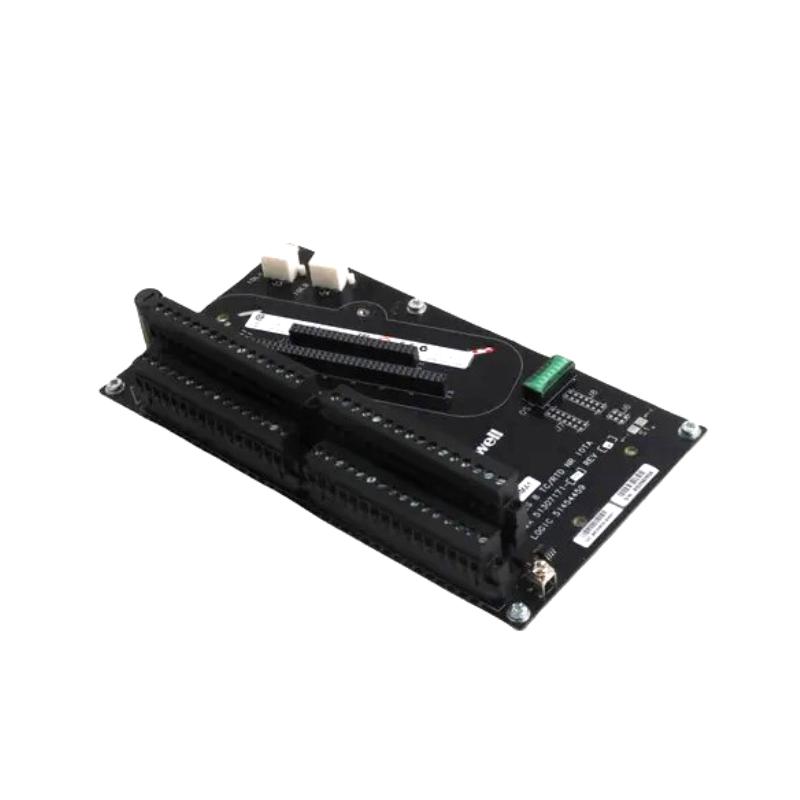

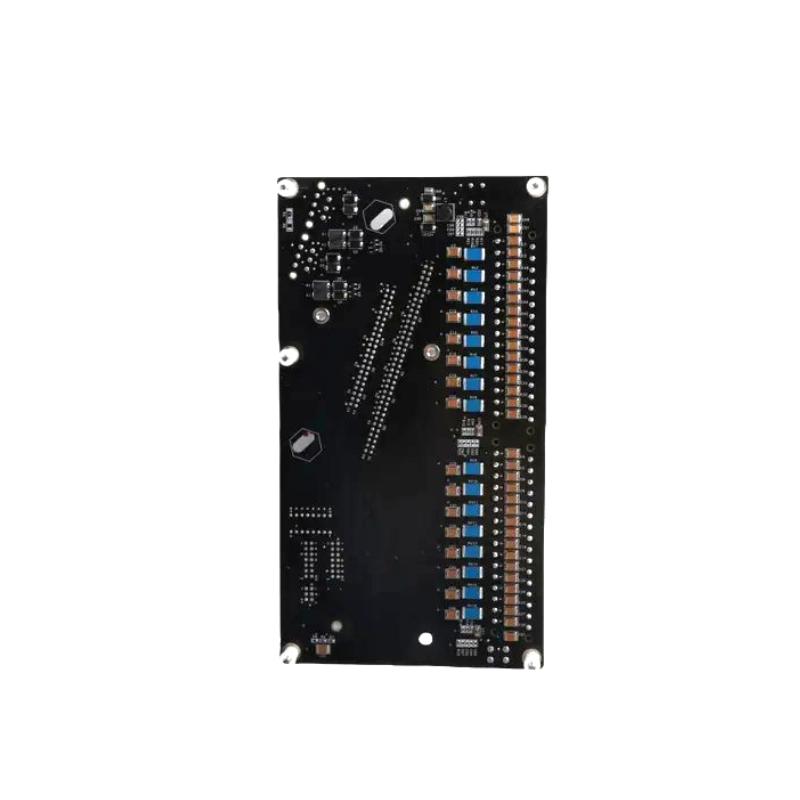

Honeywell 8C-TDODB1 51307151-175 Digital Output Module Price Advantage 100% New

Brand：Honeywell DCS

Item No.：Honeywell 8C-TDODB1 51307151-175

Product origin：USA

Dimensions:313 × 278 × 30 mm

Weight:0.55 kg

Formal channels, complete test instructions, and responsive services

Large stock, diverse series, adapted to different working conditions, welcome to consult!

Product Introduction：

Overview
The Honeywell 8C-TDODB1 (51307151-175) is a high-density 32-channel digital output module from the Series 8 I/O family. Designed for use with the C300 controller in Honeywell Experion PKS systems, it provides fast and reliable 24 V DC discrete output control to operate a wide range of field devices such as relays, lamps, and solenoid valves.

General Information

Manufacturer: Honeywell Process Solutions

Origin: United States

Model Number: 8C-TDODB1

Part Number: 51307151-175

Type: Digital Output Module

Series: Series 8 (C300 Controller Platform)

Channels: 32 isolated digital outputs

Mounting: Installed on IOTA / IOM base assembly

Function: Provides discrete output control signals from the controller to field devices for process operation

Power Specifications

Supply Voltage: 24 V DC nominal

Output Voltage Range: 18 V DC to 30 V DC

Channel Current: Up to 0.5 A per channel

Power Consumption: ≤ 12 W

Isolation Voltage: 1000 V AC RMS (output to system)

Protection: Integrated short-circuit, overload, and reverse-polarity protection

Communication & Interface

System Interface: Communicates with the C300 controller through the I/O Link network

Output Type: 24 V DC transistor-type outputs

Diagnostics: LED indicators for each channel, fault monitoring, and self-diagnostic features

Configuration: Hot-swappable design allowing replacement without interrupting system operation

Environmental

Operating Temperature: −40 °C to +70 °C

Humidity: 5 % to 95 % RH, non-condensing

Protection Rating: IP20 (intended for installation in an enclosed control cabinet)

Dimensions & Weight

Dimensions (L × W × H): Approx. 313 × 278 × 30 mm

Weight: Approx. 0.55 kg
