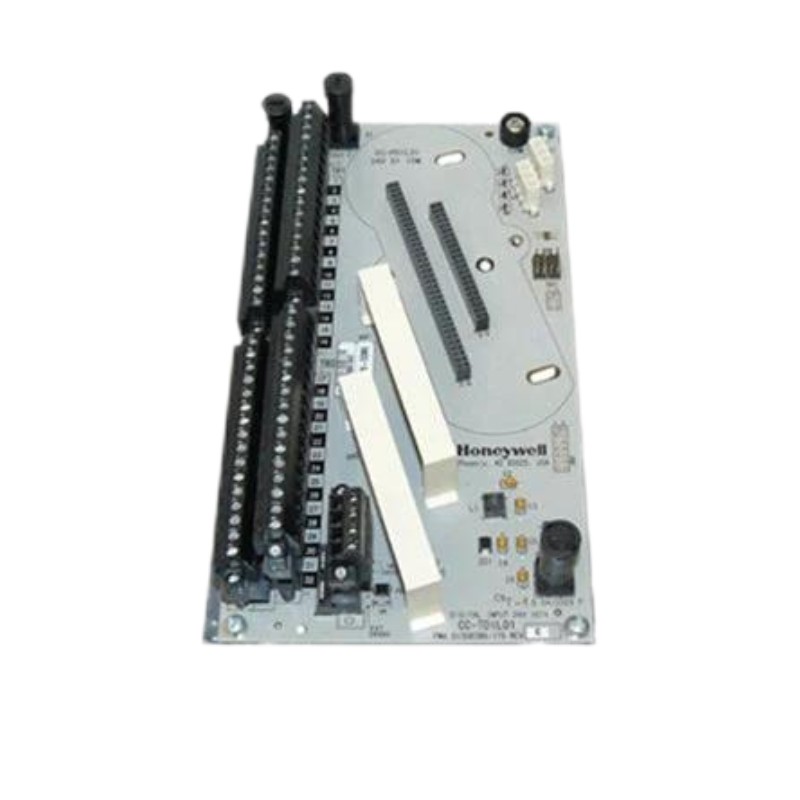

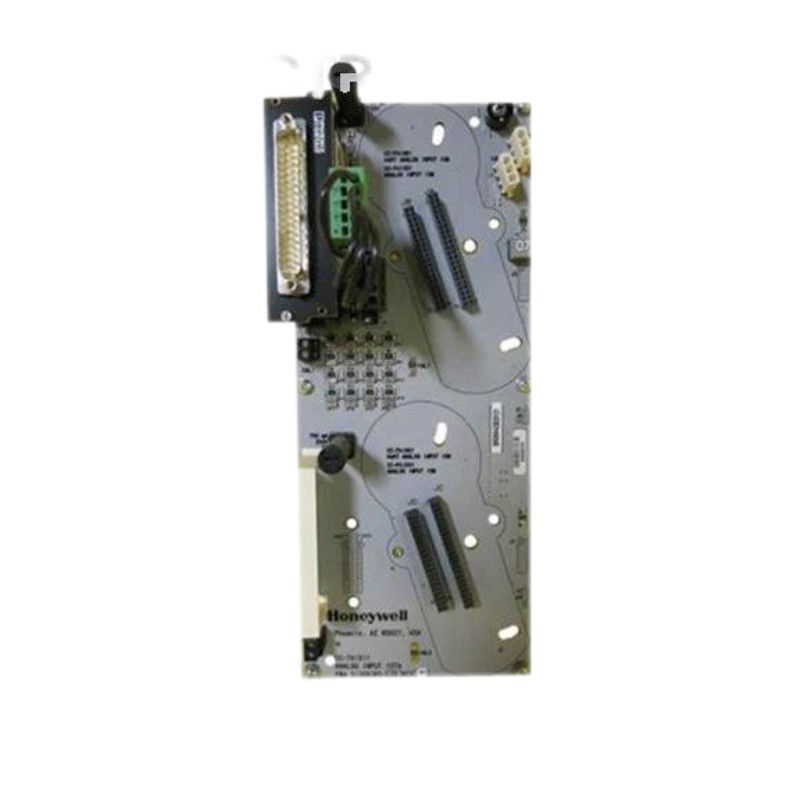

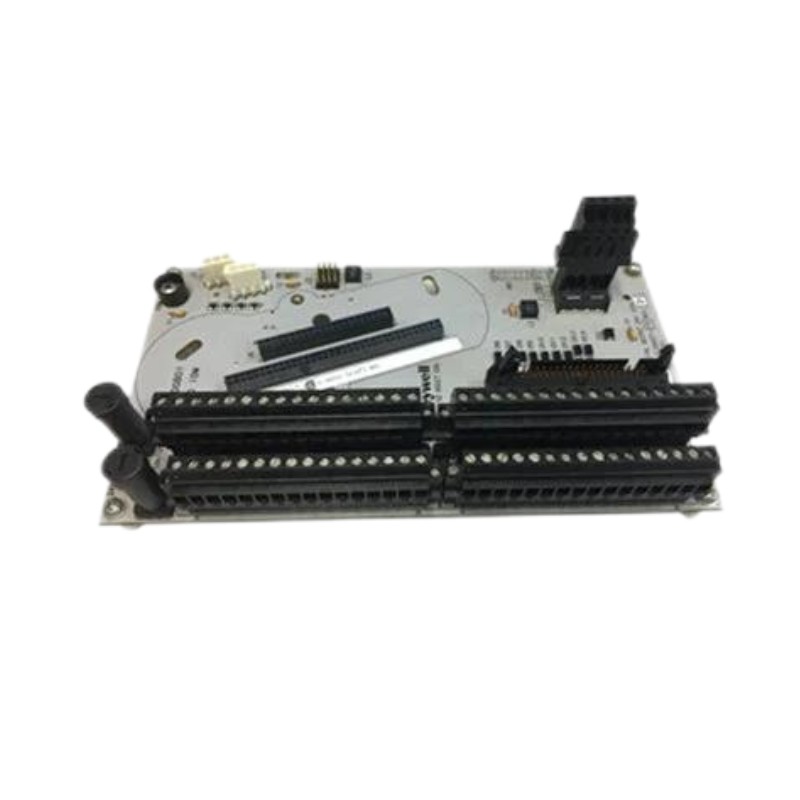

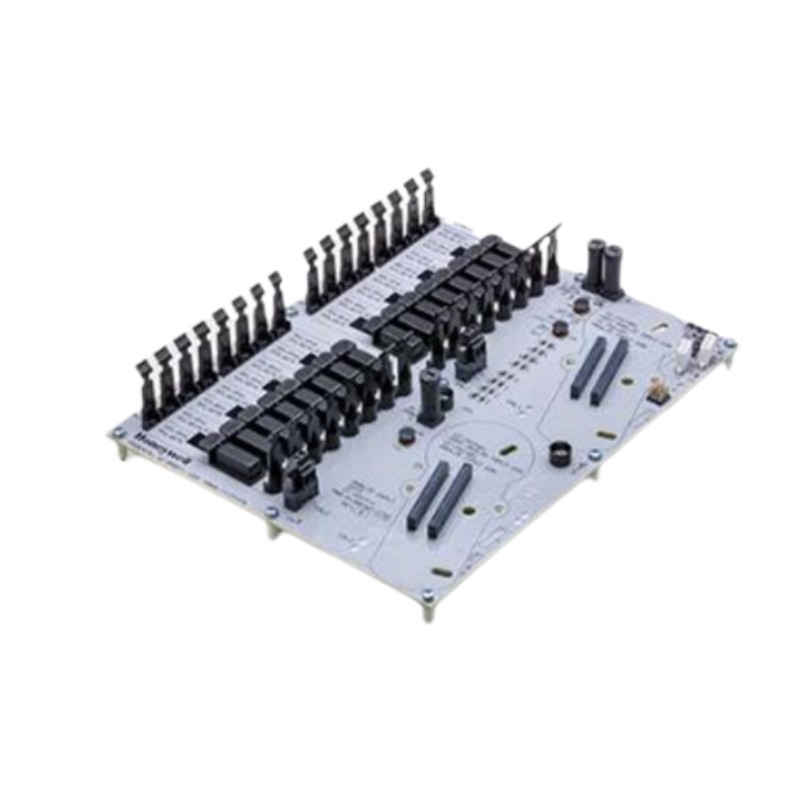

Honeywell CC-GAIX11 Analog Input Module Thoughtful service Original

Brand：Honeywell DCS

Item No.：Honeywell CC-GAIX11

Product origin：USA

Dimensions:313 × 278 × 30 mm

Weight:0.55 kg

Original source, data supports testing content, and after-sales processing is efficient

The model covers a wide range, and the delivery is efficient. Welcome to contact us for information!

Product Introduction：

Overview
The Honeywell CC-GAIX11 is an analog input module designed for hazardous area (GI/IS) applications within the Series C I/O architecture. It provides precise and isolated analog signal processing for field devices such as transmitters and sensors, ensuring safe and reliable operation in explosive environments.

General Information

Manufacturer: Honeywell Process Solutions

Origin: United States

Model Number: CC-GAIX11

Type: Analog Input Module (GI/IS rated)

Series: Series C I/O – Experion PKS platform

Function: Accepts high-level current or voltage inputs from transmitters and sensing devices, providing galvanic isolation and protection for hazardous area installations.

Power Specifications

Supply Voltage: Nominal 24 V DC

Power Consumption: Typically low; fully loaded module <10 W

Isolation Voltage: Up to 1500 V AC RMS (field to logic common)

Protection: Short-circuit, overload, and reverse-polarity protection

Communication & Interface

System Interface: Mounted on IOTA (Input/Output Termination Assembly); plugs into IOM (Input/Output Module) slot of Series C rack; communicates over I/O Link or equivalent bus within the C300 system.

Channel Features: Analog channels for voltage and current inputs; open-wire detection and diagnostics may be available.

Field Connections: Suitable for field wiring in Zone/Division explosion-hazard rated environments with galvanic isolation and protective separation.

Environmental

Operating Temperature: –40 °C to +70 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (when installed in cabinet); module is designed for use within protective enclosure in hazardous area classification.

Dimensions & Weight

Dimensions (L × W × H): Approximately 313 × 278 × 30 mm

Weight: Approximately 0.55 kg
