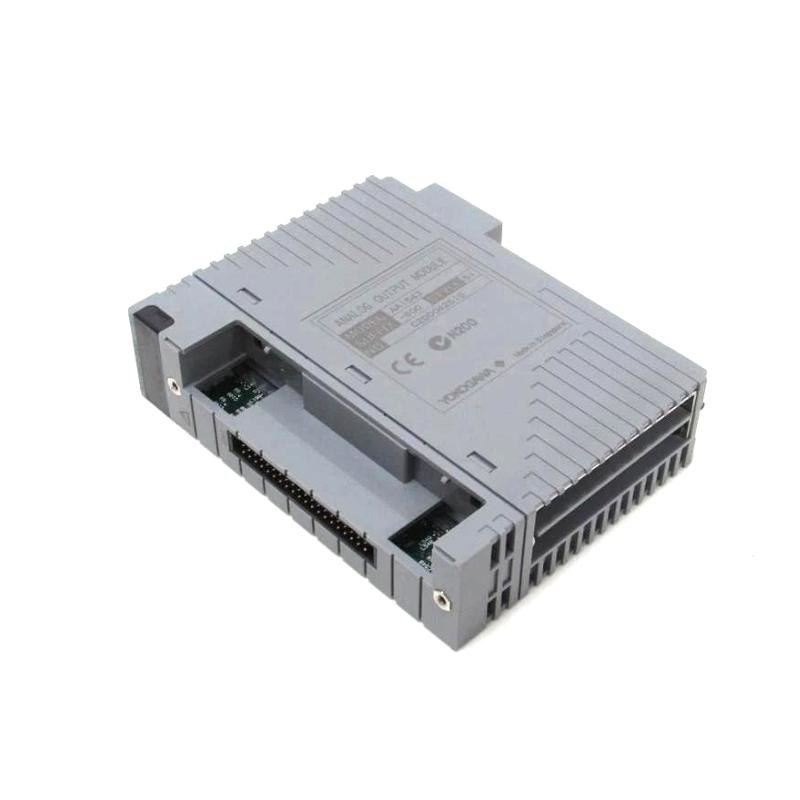

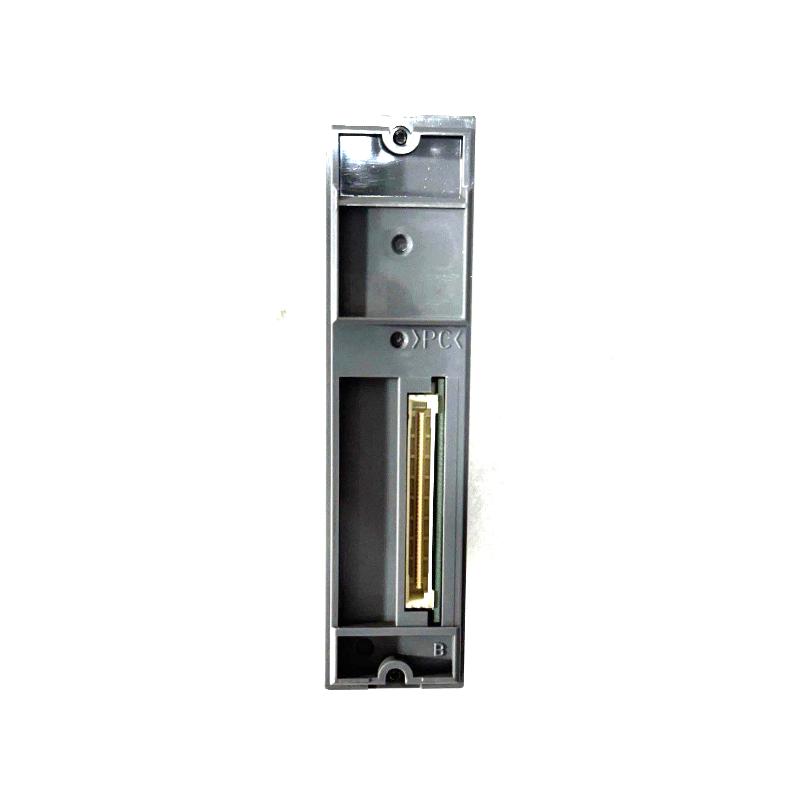

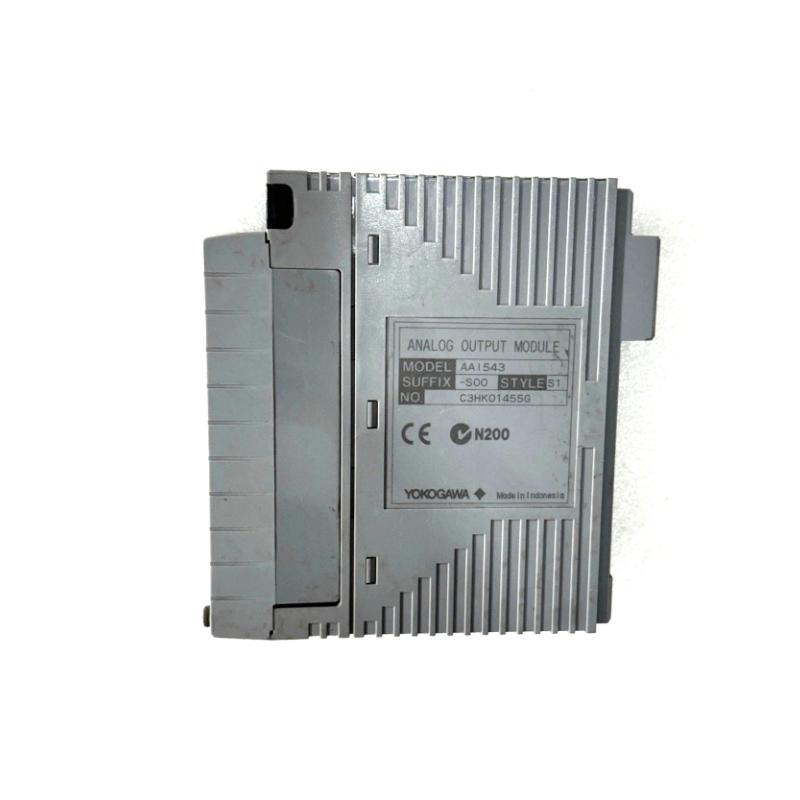

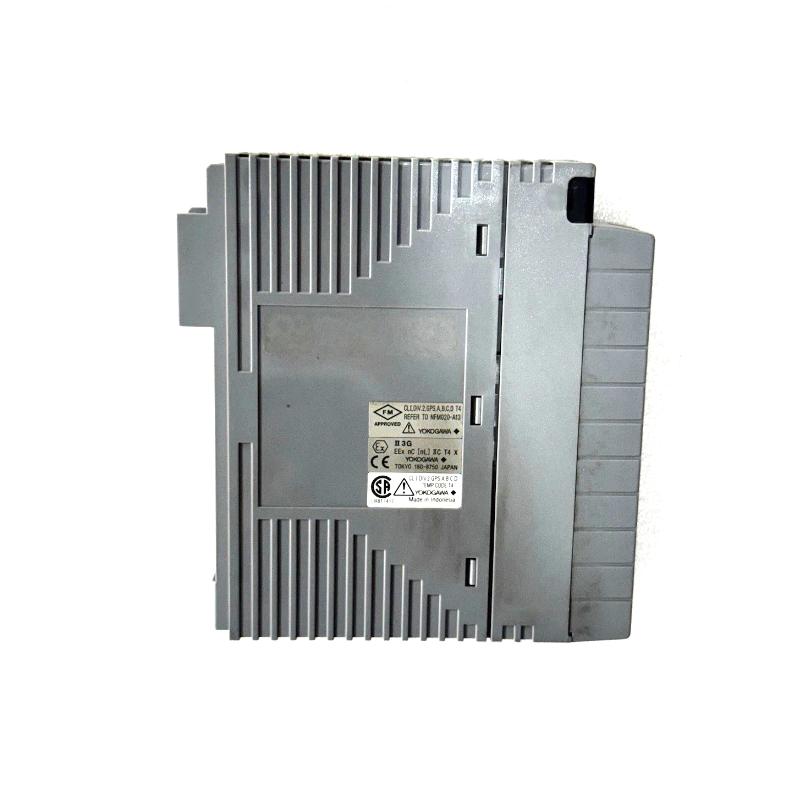

Yokogawa AAI543-S00/K4A00 Analog Output Module Recommended products Original

Brand：Yokogawa Electric

Item No.：Yokogawa AAI543-S00/K4A00

Product origin：Japan

Dimensions:107.5 × 32.8 × 130 mm

Weight:0.4 kg

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

The product inventory is continuously updated, and the order demand is quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview
The Yokogawa AAI543-S00/K4A00 is a 16-channel isolated analog output module designed for industrial automation systems. It provides precise 4–20 mA DC output signals for controlling actuators, control valves, and other field devices.

General Information

Manufacturer: Yokogawa Electric Corporation

Origin: Japan

Model Number: AAI543

Suffix: S00/K4A00

Type: Analog Output Module

Function: Provides 16 isolated 4–20 mA output channels

Applications: Industrial automation, process control systems

Electrical Specifications

Number of Output Channels: 16

Output Signal Type: 4–20 mA DC

Accuracy: ±48 µA

Data Update Cycle: 10 ms

Allowable Load Resistance: 0–750 Ω

Open Circuit Detection: < 0.65 mA

Isolation: Channel-to-channel and channel-to-ground isolation

Dielectric Strength: Input to system: 1500 V AC, 1 min

Maximum Current Consumption: 540 mA at 24 V DC

Supply Voltage: 19.0–25.5 V DC (at 20 mA output)

Environmental Specifications

Operating Temperature Range: −20°C to +70°C

Protection Rating: IP20

Standards Compliance: International safety and EMC standards

Dimensions & Weight

Dimensions (L × W × H): 107.5 × 32.8 × 130 mm

Weight: 0.4 kg

All our products are new, original, and ready for immediate dispatch.

The product import process is stable, the delivery speed is flexible and controllable, and there are real discounts for bulk purchases.
