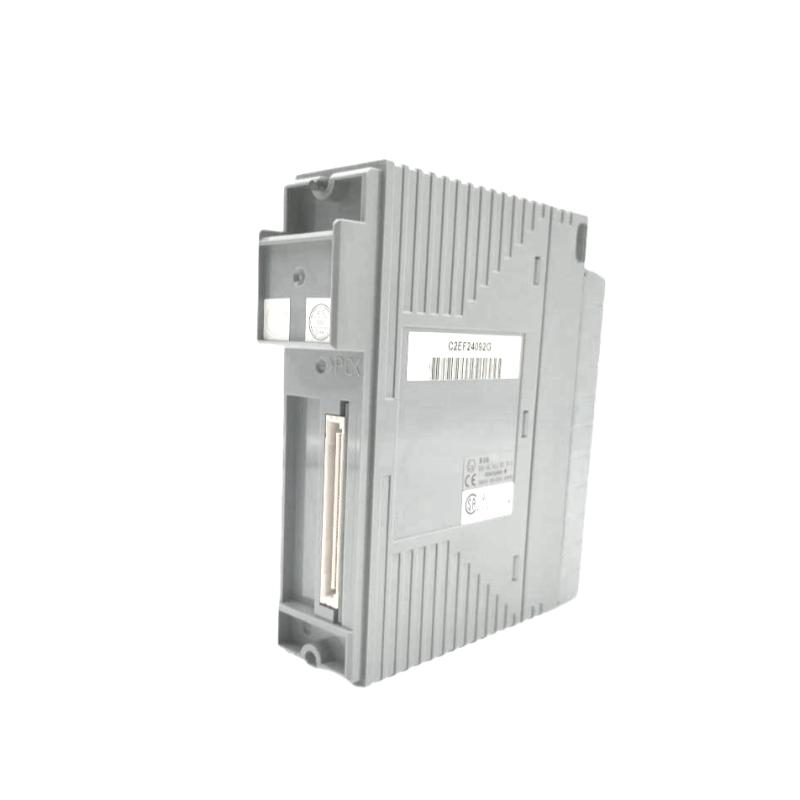

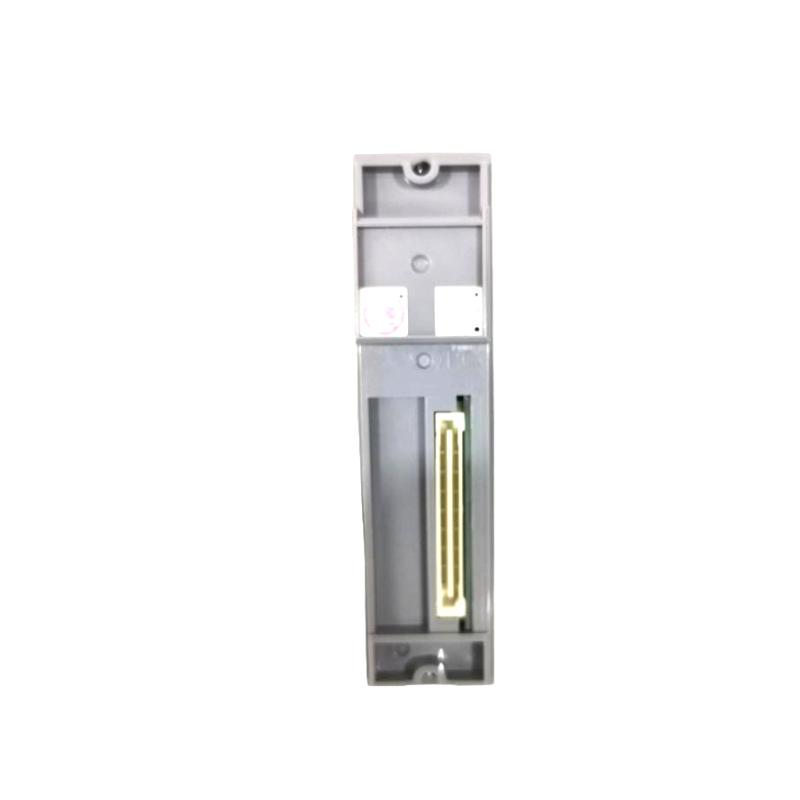

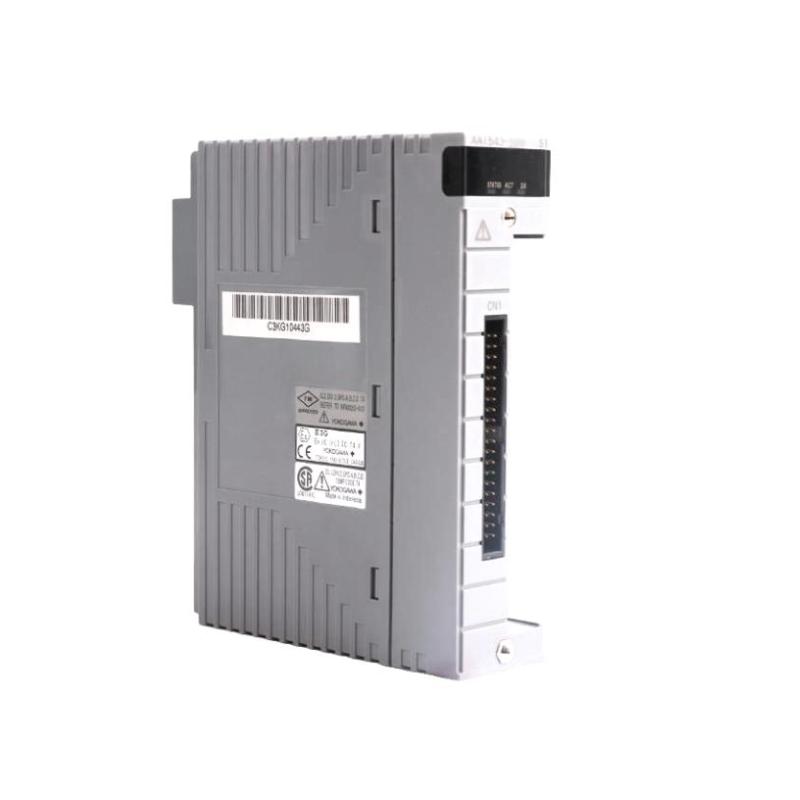

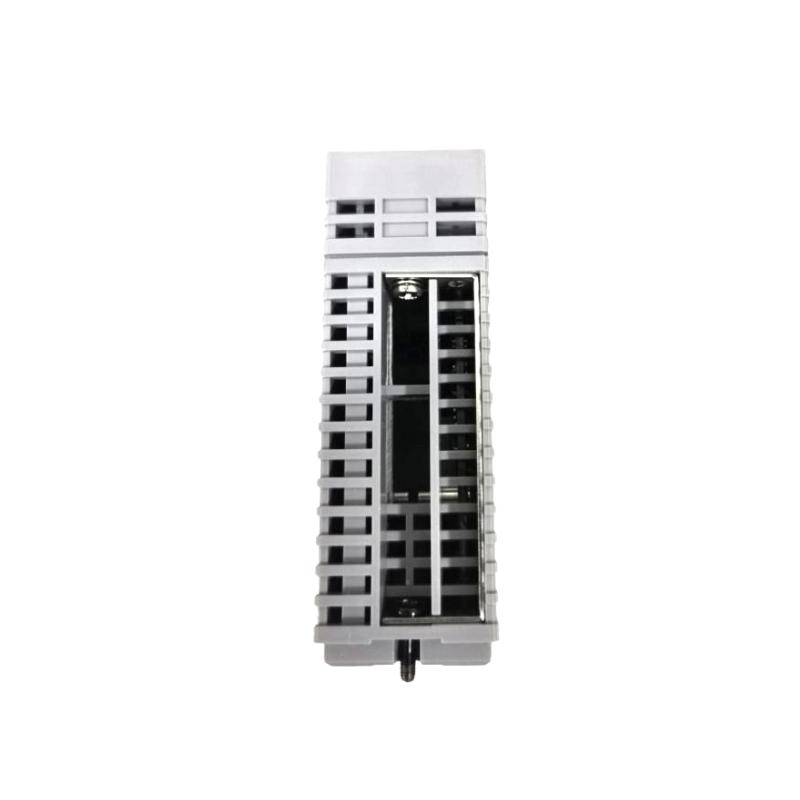

Yokogawa AAI543-S03/A4S00 Analog Output Module Price Advantage New In Stock

Brand：Yokogawa Electric

Item No.：Yokogawa AAI543-S03/A4S00

Product origin：Japan

Dimensions:107.5 × 32.8 × 130 mm

Weight:0.4 kg

Formal channel supply, complete information can be checked, and supporting service guarantee

There are rich models in stock, which support quick docking of procurement needs. Welcome to inquire for details!

Product Introduction：

Overview
The Yokogawa AAI543-S03/A4S00 is a 16-channel analog output module designed for Yokogawa's Distributed Control Systems (DCS). It provides isolated 4–20 mA DC output signals, ensuring precise control of field devices such as actuators and control valves.

General Information

Manufacturer: Yokogawa Electric Corporation

Origin: Japan

Model Number: AAI543

Suffix: S03/A4S00

Type: Analog Output Module

Function: Provides 16 isolated 4–20 mA output channels

Applications: Industrial automation, process control systems

Electrical Specifications

Output Channels: 16

Output Signal: 4–20 mA DC

Accuracy: ±48 µA

Data Update Period: 10 ms

Allowable Load Resistance: 0–750 Ω

Open Circuit Detection: < 0.65 mA

Isolation: Channel-to-channel and channel-to-ground isolation

Dielectric Strength: Input to system: 1500 V AC for 1 minute

Maximum Current Consumption: 230 mA (5 V DC), 540 mA (24 V DC)

Supply Voltage: 19.0–25.5 V DC (at 20 mA output)

Environmental Specifications

Operating Temperature Range: −10°C to +70°C

Protection Rating: IP20

Conformal Coating: Yes, for protection against dust and moisture

Dimensions & Weight

Dimensions (L × W × H): 107.5 × 32.8 × 130 mm

Weight: 0.4 kg
