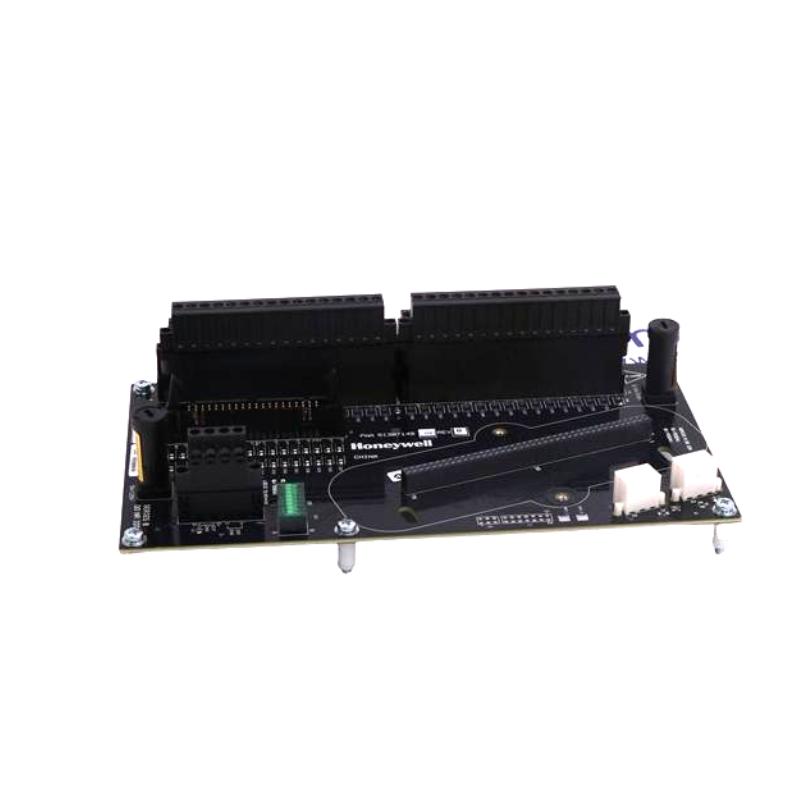

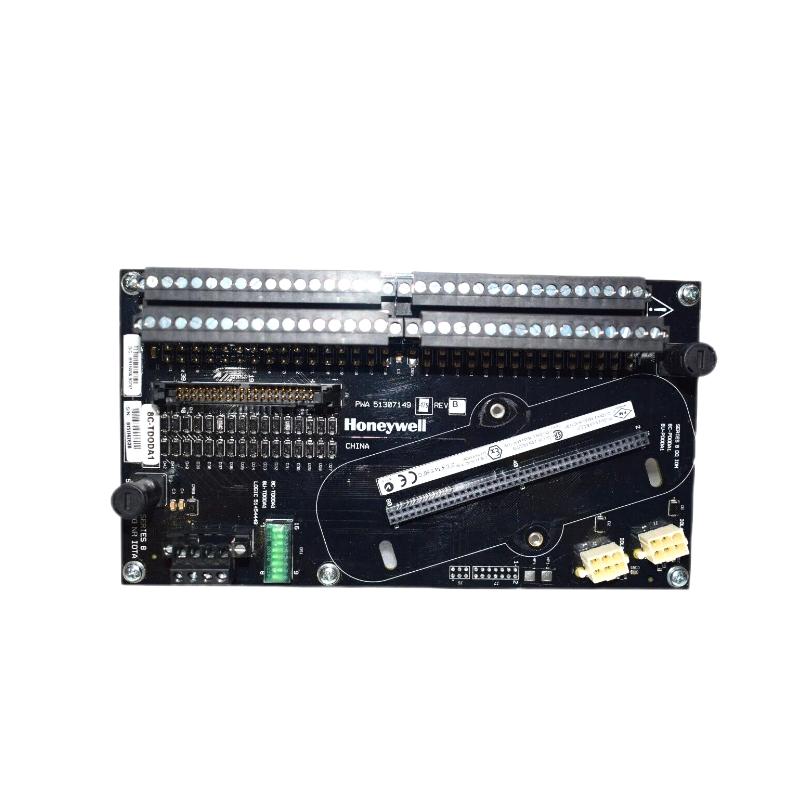

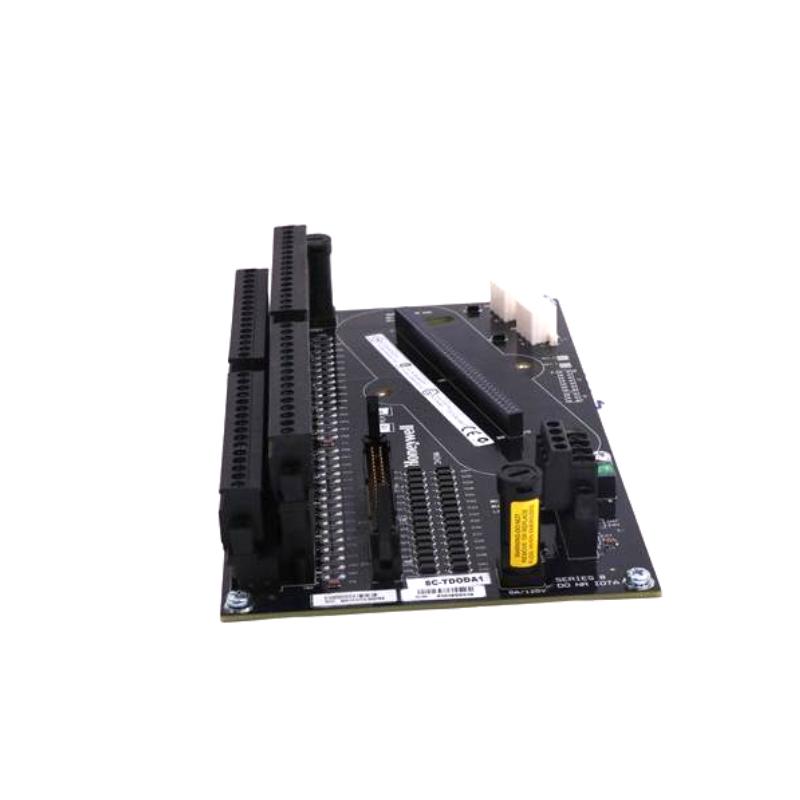

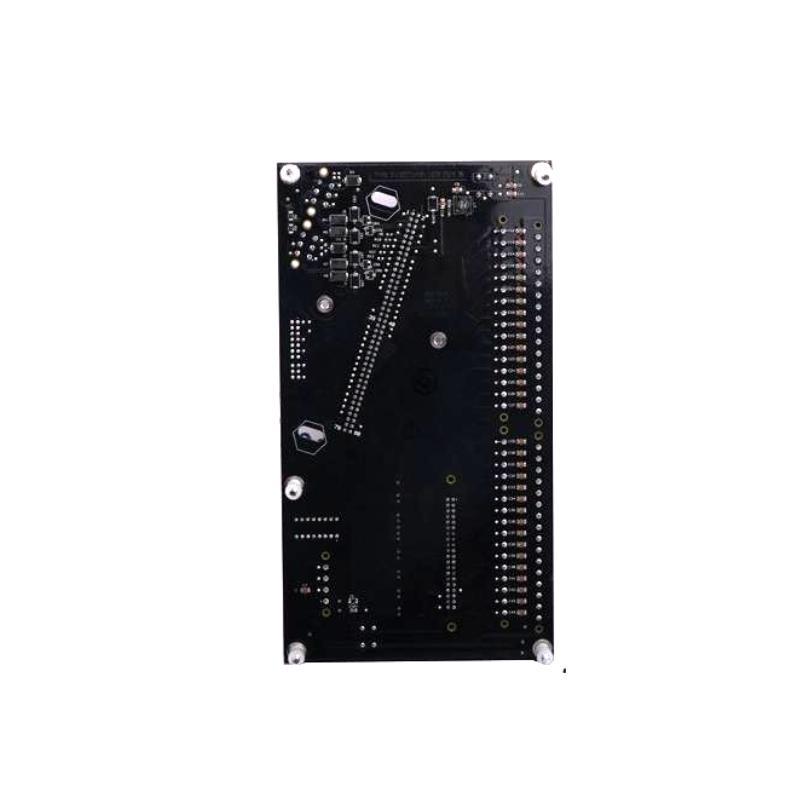

Honeywell 8C-TDODA1 51307149-175 Digital Output Module Original Trusted supplier

Brand：Honeywell DCS

Item No.：Honeywell 8C-TDODA1 51307149-175

Product origin：USA

Dimensions:313 × 278 × 30 mm

Weight:0.55 kg

Compliant import, support for testing, and fast response to after-sales service

Flexible stock of multiple models, support for fast response, welcome to cooperate and communicate!

Product Introduction：

Overview
The Honeywell 8C-TDODA1 (51307149-175) is a 32-channel digital output module developed for the Series 8 I/O platform used in Honeywell’s Experion PKS control systems. It provides high-speed and reliable 24 V DC discrete output control for industrial process automation, offering robust performance for driving field devices such as solenoids, relays, and indicators.

General Information

Manufacturer: Honeywell Process Solutions

Origin: United States

Model Number: 8C-TDODA1

Part Number: 51307149-175

Type: Digital Output Module

Series: Series 8 (C300 Controller Platform)

Channels: 32 isolated digital outputs

Mounting: Installed on IOTA / IOM base assembly

Function: Transmits discrete output control signals from the C300 controller to field devices for actuation

Power Specifications

Supply Voltage: 24 V DC nominal

Output Voltage Range: 18 V DC to 30 V DC

Channel Current: Up to 0.5 A per channel

Power Consumption: ≤ 12 W

Isolation Voltage: 1000 V AC RMS (output to system)

Protection: Overcurrent, short-circuit, and reverse-polarity protection

Communication & Interface

System Interface: Communicates with the C300 controller via the I/O Link network

Output Type: Transistor-type 24 V DC outputs

Diagnostics: Individual channel status LEDs, fault indication, and system self-diagnostics

Configuration: Hot-swappable design allows replacement without system shutdown

Environmental

Operating Temperature: −40 °C to +70 °C

Humidity: 5 % to 95 % RH (non-condensing)

Protection Rating: IP20 (for industrial cabinet installation)

Dimensions & Weight

Dimensions (L × W × H): Approx. 313 × 278 × 30 mm

Weight: Approx. 0.55 kg
