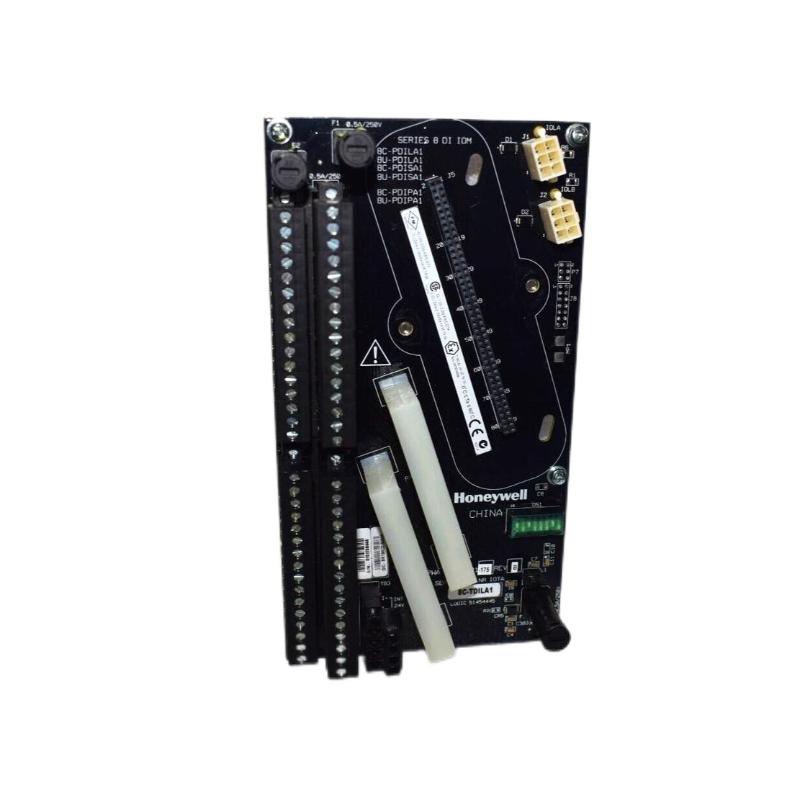

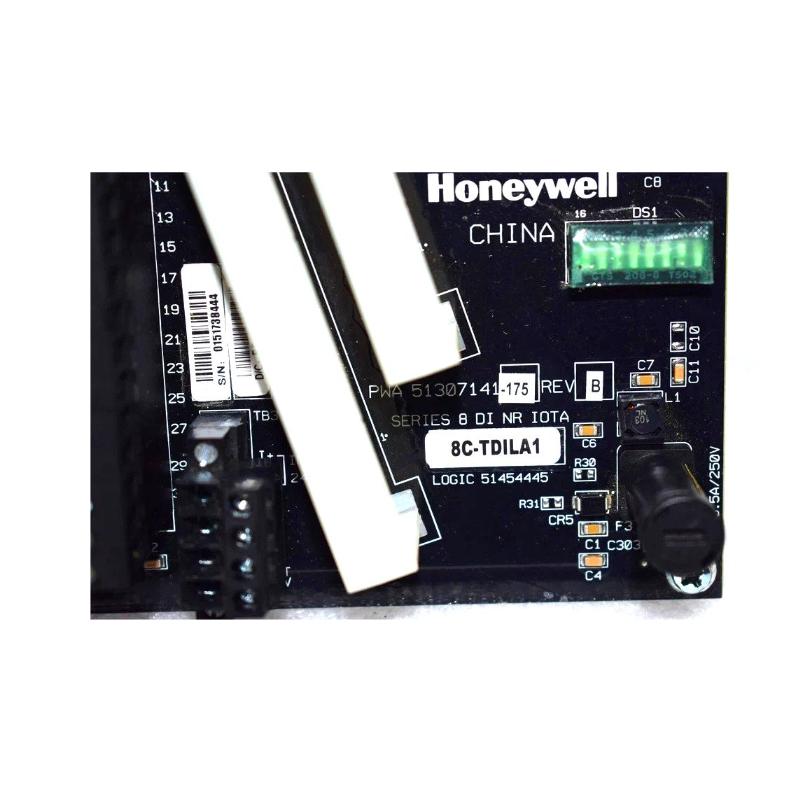

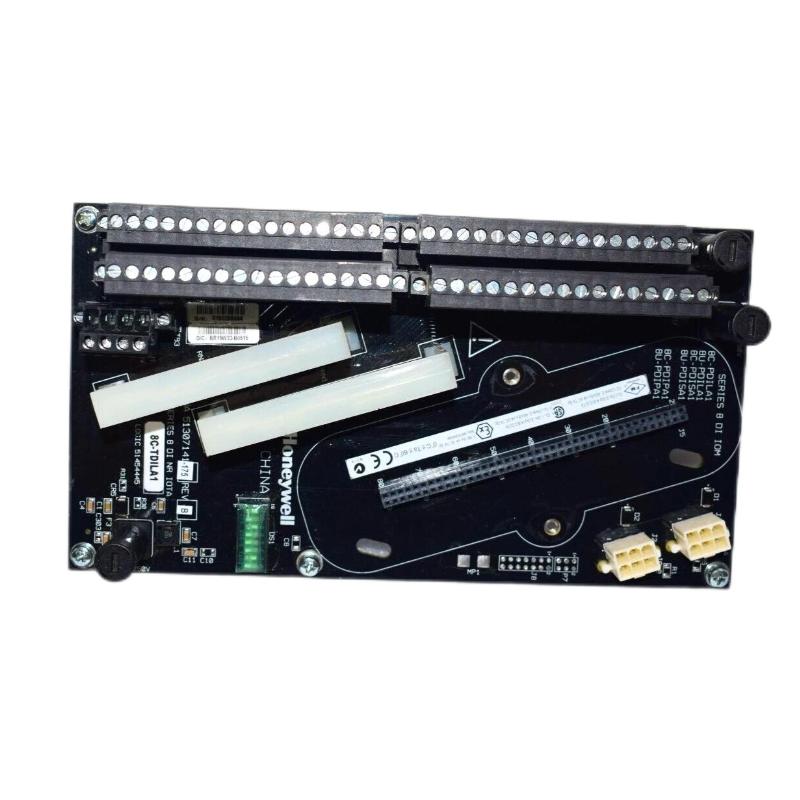

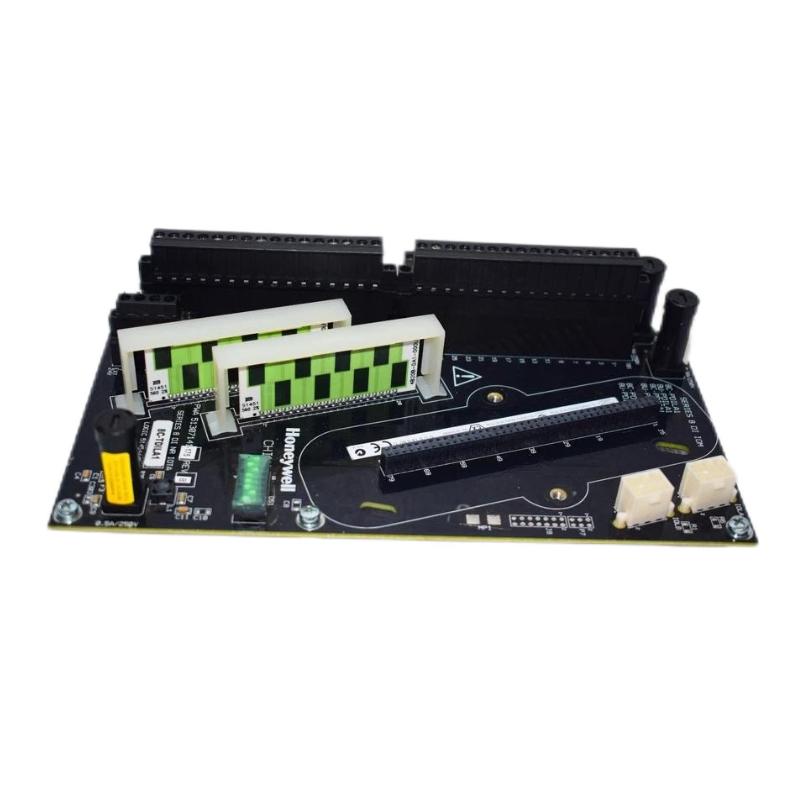

Honeywell 8C-TDILA1 51307141-175 Pulse Accumulation Module Trusted supplier Original

Brand：Honeywell DCS

Item No.：Honeywell 8C-TDILA1 51307141-175

Product origin：USA

Dimensions:313 × 278 × 30 mm

Weight:0.55 kg

Formal channels, complete test instructions, responsive service

There are abundant spot models, supporting quick docking of purchasing needs, welcome to inquire!

Product Introduction：

Overview
The Honeywell 8C-TDILA1 (51307141-175) is a 32-channel digital input and pulse accumulation module from the Series 8 I/O family. It is designed for use with the Honeywell C300 controller in Experion PKS systems, providing fast and reliable data acquisition for both discrete and high-speed pulse input signals.

General Information

Manufacturer: Honeywell Process Solutions

Origin: United States

Model Number: 8C-TDILA1

Part Number: 51307141-175

Type: Digital Input / Pulse Accumulation Module

Series: Series 8 (C300 Platform)

Channels: 32 inputs (Channels 1–16 for pulse accumulation, 17–32 standard digital inputs)

Mounting: Installed on IOTA / IOM base assembly

Function: Captures and transmits digital and pulse signals to the controller for processing

Power Specifications

Supply Voltage: 24 V DC nominal

Input Current: ≤ 0.8 A

Power Consumption: ≤ 10 W

Isolation: Up to 1000 V AC RMS between input and system circuits

Protection: Reverse-polarity and surge protection built-in

Communication & Interface

System Interface: Connects to the C300 controller through the I/O Link network

Channel Features: Pulse accumulation for frequency and event count inputs

Diagnostics: Per-channel status LEDs, fault detection, and self-test functions

Configuration: Hot-swappable design for easy maintenance and replacement

Environmental

Operating Temperature: −40 °C to +70 °C

Humidity: 5 % to 95 % RH (non-condensing)

Protection Rating: IP20 (for installation in industrial cabinet)

Dimensions & Weight

Dimensions (L × W × H): Approx. 313 × 278 × 30 mm

Weight: Approx. 0.55 kg
