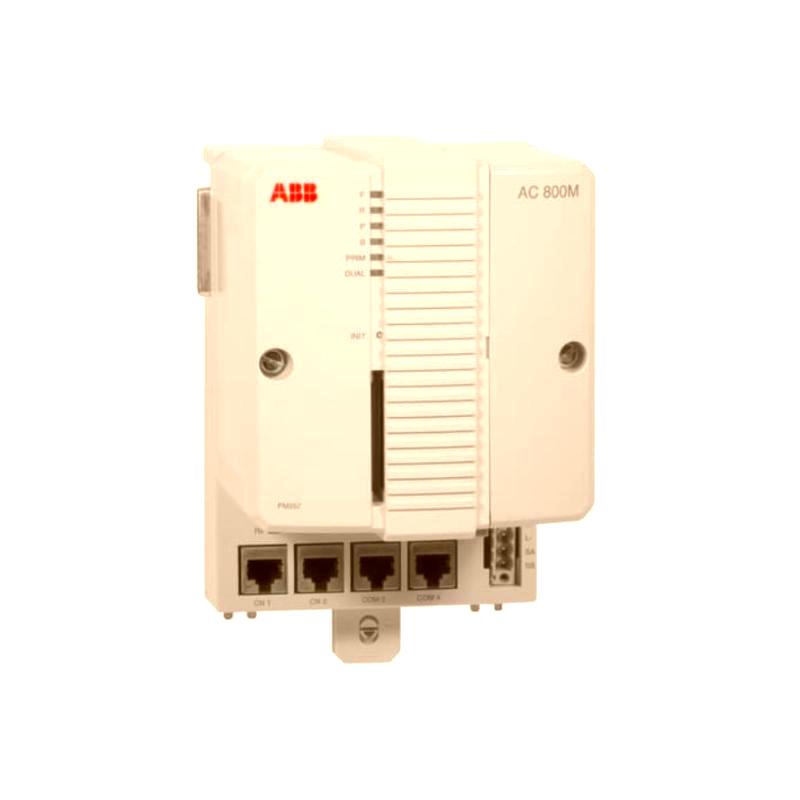

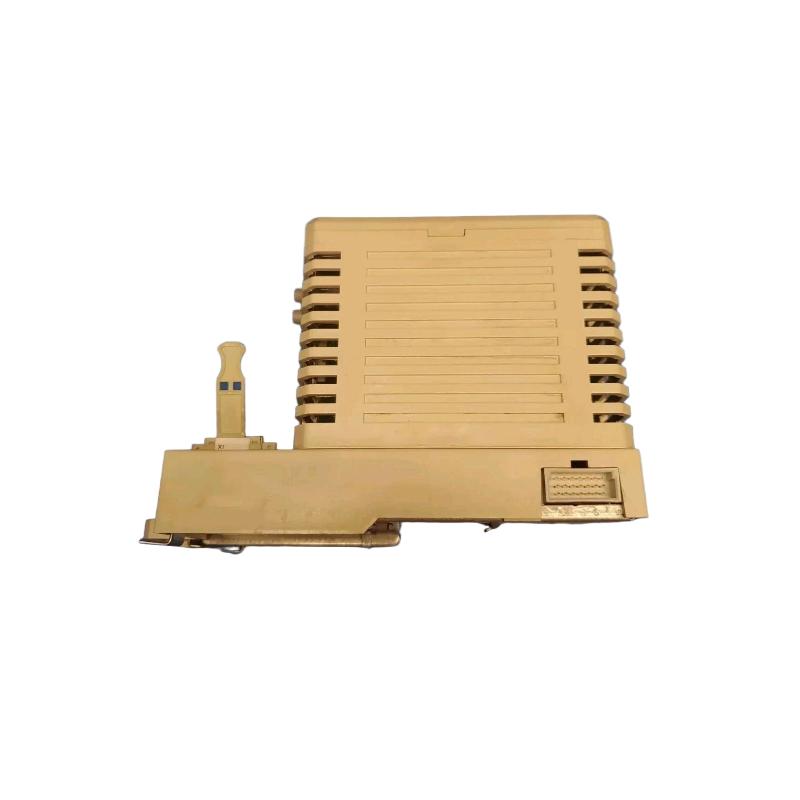

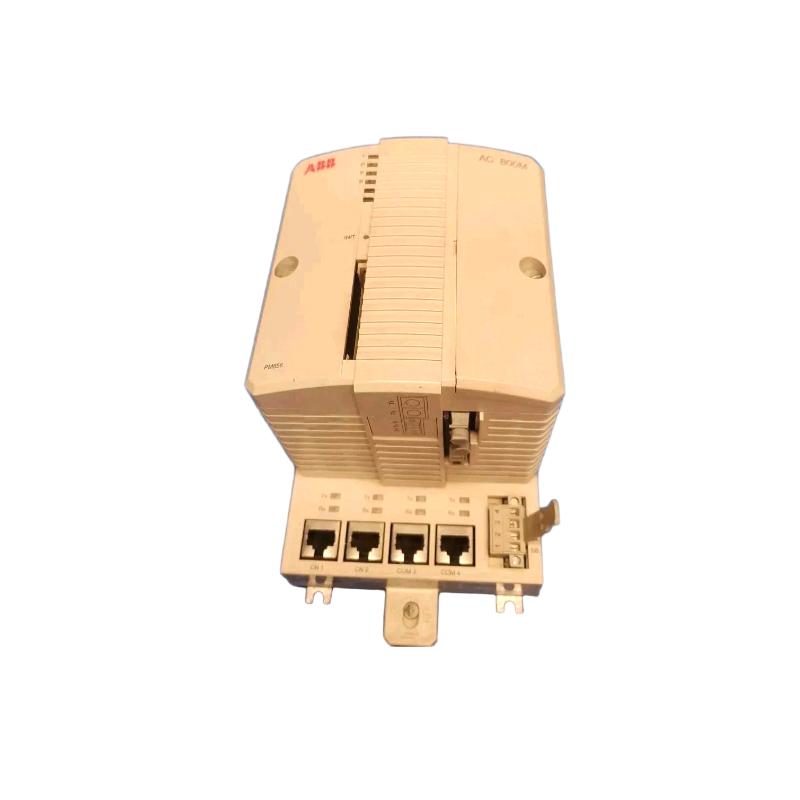

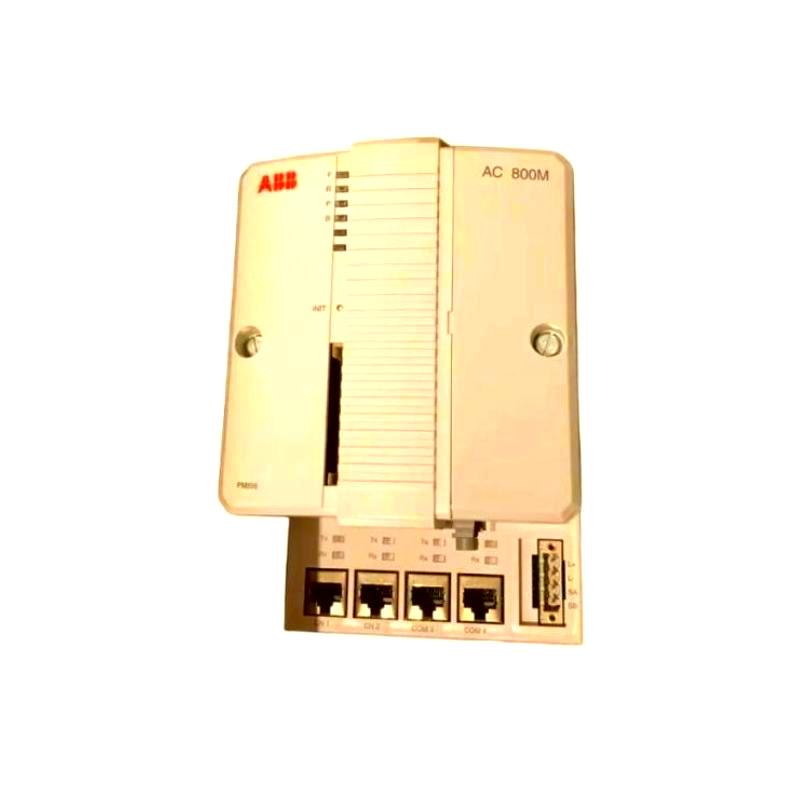

ABB PM856K01 3BSE018104R1 Processor Unit Kit Recommended products Original

Brand：ABB PLC

Item No.：ABB PM856K01 3BSE018104R1

Product origin：Sweden

Dimensions:135 × 186 × 119 mm

Weight:1.1 kg

Regular supply, testing instructions can be coordinated, and after-sales service continues to follow up

A wide range of spot models, support for quick docking of purchasing needs, welcome to inquire!

Product Introduction：

Overview
The ABB PM856K01 (3BSE018104R1) is a high-performance processor unit kit used in the ABB AC 800M control system. It serves as the central processing controller, managing logic execution, communication handling, and real-time data processing for complex automation applications.

General Information

Part Number: PM856K01 / 3BSE018104R1

Product Name / Model: Processor Unit Kit

Manufacturer: ABB

Country of Origin: Sweden

Series / Module Type: AC 800M Controllers / Central Processing Unit

Type: Processor Unit Kit (includes CPU, baseplate, and accessories)

Mounting: DIN-rail installation within control cabinet

Application Area: Process control, manufacturing automation, and power generation systems

Power Specifications

Supply Voltage: 24 V DC nominal

Power Consumption: Approx. 10 W

Memory Capacity: 16 MB RAM and 8 MB Flash memory

Battery Backup: Internal lithium battery for memory and clock retention

Communication Interfaces: Two Ethernet ports, serial ports, and system bus connections

Protection: Overvoltage, reverse polarity, and surge protection

Environmental

Operating Temperature: 0°C to +60°C

Storage Temperature: -40°C to +70°C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20

Dimensions & Weight

Dimensions (L × W × H): 135 × 186 × 119 mm

Weight: 1.1 kg

Brand-new original products supplied in stock, customer support available 24/7, prices can be checked anytime.

The product has reasonable price-performance ratio, timely delivery, and special preferential quotations can be applied for project-based procurement.
