Honeywell 8C-TAOXA1 51307135-175 Analog Output Module Thoughtful service Fast Shipping!

Brand：Honeywell DCS

Item No.：Honeywell 8C-TAOXA1 51307135-175

Product origin：USA

Dimensions:145 × 120 × 65 mm

Weight:0.25 kg

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

The product inventory is continuously updated, and the order demand is quickly responded to. Welcome to call for consultation!

Product Introduction：

Overview

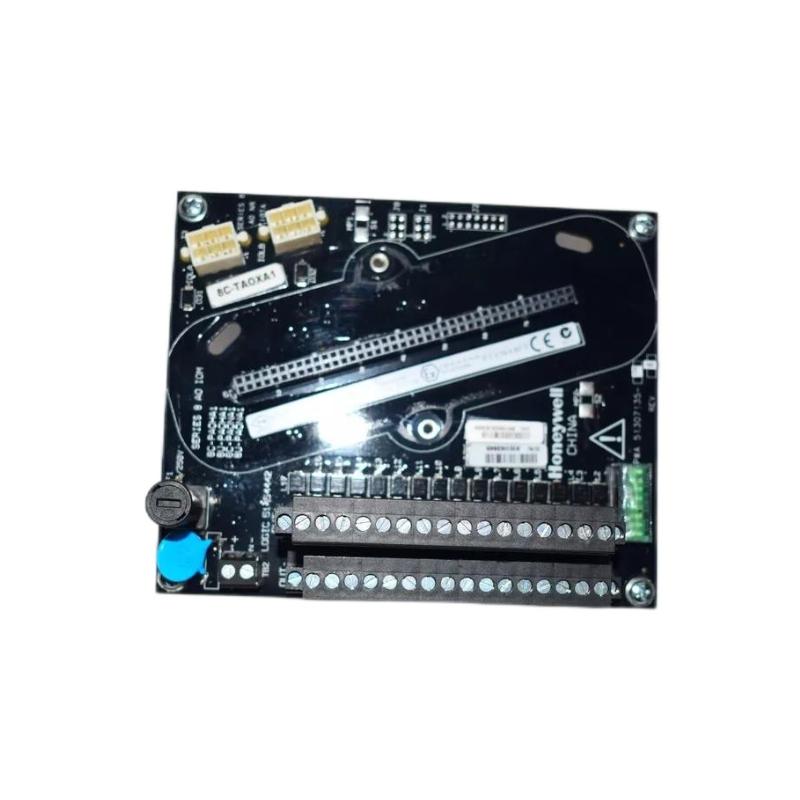

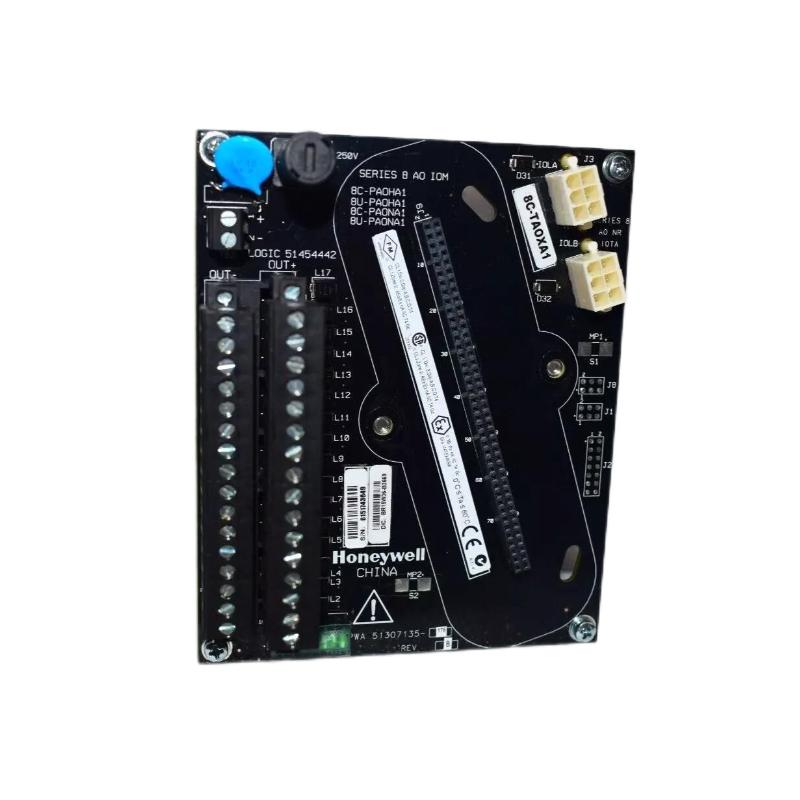

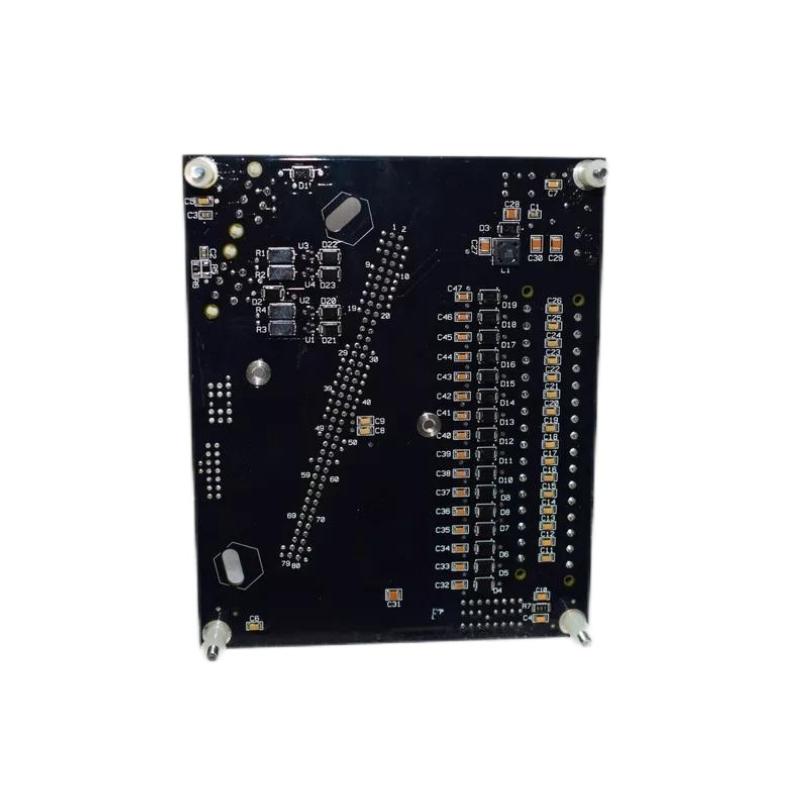

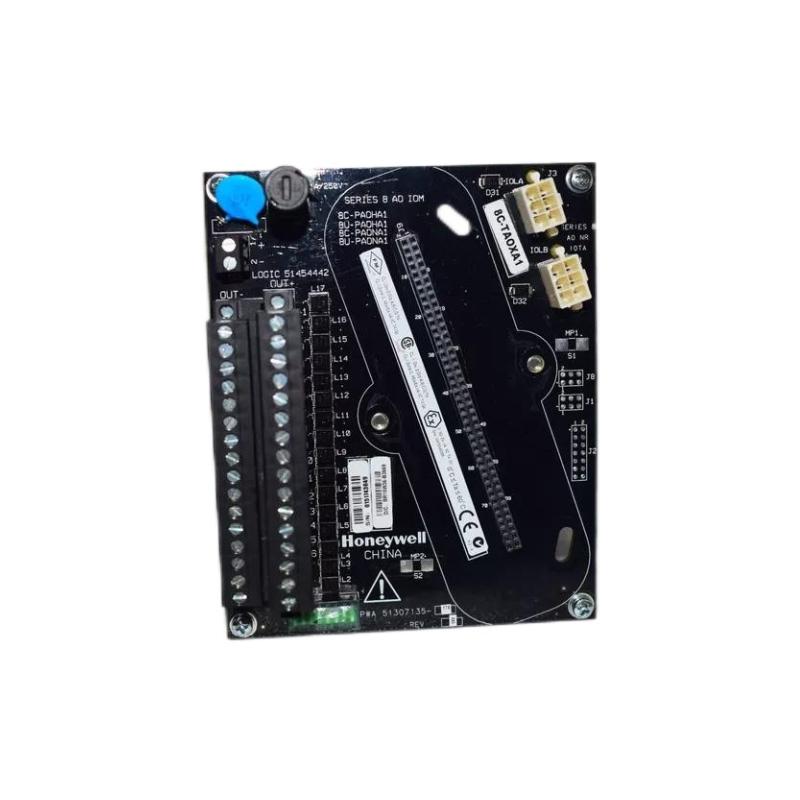

The Honeywell 8C‑TAOXA1 (Part No. 51307135‑175) is a non‑redundant, coated analog output module designed for use in Honeywell Series 8 and Experion C300 systems. It provides 16 channels of 4–20 mA output, suitable for controlling actuators, valves, and other field devices in process automation applications.

General Information

Part Number: 51307135‑175 / 8C‑TAOXA1

Product Name / Model: 8C‑TAOXA1 Analog Output Module

Manufacturer: Honeywell

Country of Origin: United States

Series / Module Type: Series 8 / Experion C300

Type: Analog Output Module (IOTA form factor)

Mounting / Format: IOTA slot (6-inch)

Application Area: Process control, actuator/valve control, field signal output

Electrical Specifications

Number of Channels: 16

Output Type: 4–20 mA DC

Output Ripple: <100 mV peak‑to‑peak at power line frequency, across 250 Ω load

Output Temperature Drift: 0.005% of Full Scale/°C

Output Current Linearity: ±0.05% of Full Scale nominal

Load Resistance: 50–800 Ω

Voltage Rating: 24 VDC

Module Current Rating: 190 mA

Maximum Open Circuit Voltage: 22 V

Gap (0 mA) of Output to Field on Switchover: 10 ms maximum (applies to redundancy only)

Environmental

Operating Temperature: −40 °C to +70 °C

Storage Temperature: −55 °C to +85 °C

Relative Humidity: Up to 95%, non‑condensing

Cooling Method: Natural convection

Protection / Coating: Conformal coated for resistance to dust, humidity, and corrosive atmospheres

Dimensions & Weight

Dimensions (L × W × H): 145 × 120 × 65 mm

Weight: Approximately 0.25 kg

100% genuine new products, supported by live quotation service.

This product is imported with original packaging, efficient logistics processing, and supports testing instructions. There is corresponding discount space for large quantities.
